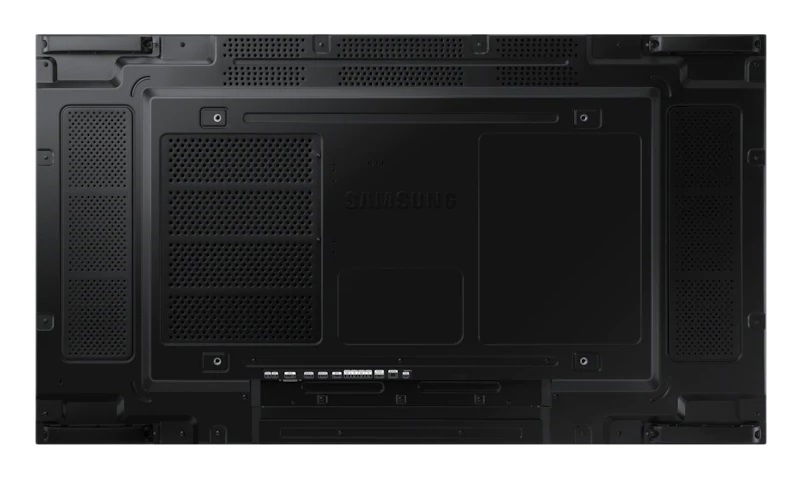

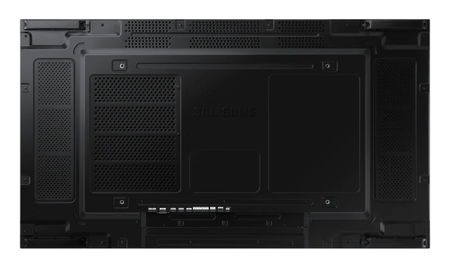

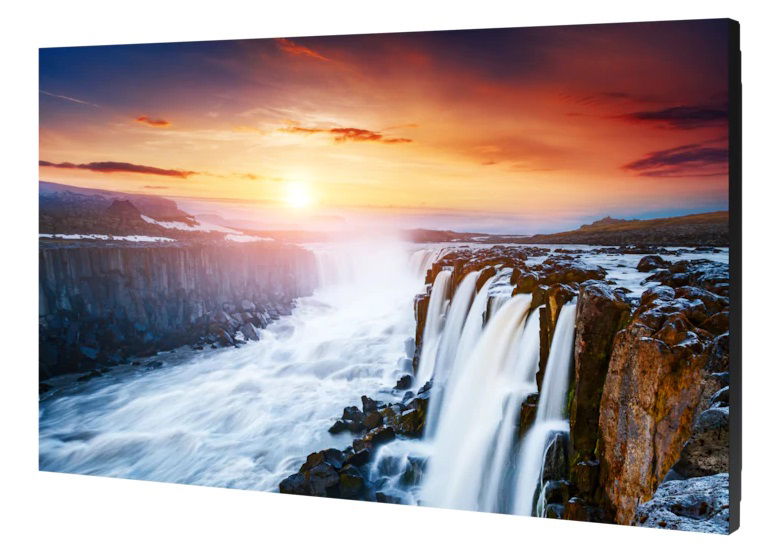

Samsung VHR-R Series 55 Inch 1920x1080 Full HD 700nit Video Wall Commercial Display

Seamless video walls with razor-thin bezels. With an exceptionally narrow bezel measuring just 0.44 mm and equipped with Samsung’s advanced picture enhancement technology along with wide viewing angles, the VHR-R delivers an impactful and seamless experience. Its modern, slim design allows the display to blend into any business environment.

Even 0.44 mm bezel:
An Exceptionally thin 0.44mm even bezel — a 0.88 mm bezel-to-bezel depth — enables content to be delivered as one seamless image. Additionally, the display helps to eliminate any potential image distortion and provides a more immersive viewing experience.

View content from any angle:
The display’s wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear and accurate information regardless of video wall layout or location.

Image enhancement technology:
Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, colour saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, so details are easier to see.

Modern, slim design:
VHR-R displays feature an elevated design aesthetic with an ultra-slim depth of less than 70 mm. This allows the display to save space and create a clean, modern look for retail or other public spaces.

Convenient mobile calibration:
Samsung’s Colour Expert Pro Mobile solution provides a quick and easy video wall calibration through a mobile camera. With the solution’s intuitive UI, even non-expert users can adjust up to 5x5 video wall’s white balance simultaneously without the need for additional equipment.

Comprehensive calibration:
Samsung’s multi-step factory calibration process tunes video walls to uniform brightness and colour throughout multiple displays. In addition to rigorous factory calibration, users can also manage brightness and colour uniformity with Samsung's Colour Expert Pro, a powerful free software program.

Advanced UHD presentation:
Samsung video walls provide an impressive UHD viewing experience with minimal effort. With daisy chain design utilizing DisplayPort 1.2 and HDMI ports, the VHR-R display can project UHD content across multiple screens up — to 5 x 5 — without requiring an external graphic card or UHD splitters.

Industry standard certified:
The VHR-R series is EMC class B compliant, ensuring a safe viewing environment by meeting strict standards of electromagnetic wave emission. The display packaging also passed a rigorous 4-step test in an ISTA-certified laboratory designed minimizes possible damage during delivery.

Intuitive all-in-one operations:
The UHD Signage Player Box combines information processing and content management tools into a single platform, for added operational simplicity. Weighing just 0.6 kg, even with embedded MagicINFO S Player 6 and SSSP 6, the compact design of the box makes it an ideal solution.

Display:

• Diagonal Size: 55"
• Panel Type: IPS
• Resolution: 1,920 x 1,080
• Pixel Pitch (HxV): 0.63x0.63
• Brightness (Typical): Max 700
• Contrast Ratio: 1,100:1
• Viewing Angle (H/V): 178/178
• Response Time: 8ms
• Color Gamut: 0.72 %
• Glass Haze: 28 %
• H-Scanning Frequency: 57.3kHz ~ 70kHz
• Maximum Pixel Frequency: 78MHz
• V-Scanning Frequency: 48Hz ~ 75Hz
• Dynamic Contrast Ratio: 30,000:1

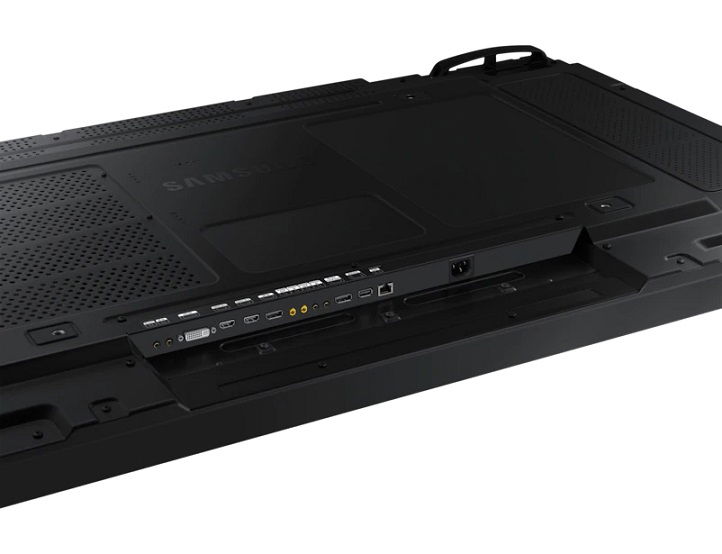

Connectivity:

• HDMI In: 2
• DP In: 1
• DVI In: 1
• USB: 1 (F/W Upgrade Only)
• IR In: Yes
• Audio In: Yes
• Audio Out: Stereo Mini Jack
• Video Out: Yes
• RS232 In: Yes
• RS232 Out: Stereo Mini Jack
• RJ45 In: Yes

Electrical:

• Power Supply: AC 100 to 240 VAC (60 / 50Hz)
• Power Consumption (Off Mode): N/A
• Power Consumption (On Mode): 270W
• Power Consumption (Sleep Mode): 0.5W

General:

• Set Dimension (WxHxD): 1211.0 x 681.7 x 69.9 mm
• Net Weight: 16.8 kg
• Operation Conditions Temperature: 10 °C ~ 40 °C
• Humidity: 10 ~ 80%
• VESA Mount: 600 x 400 mm
• Bezel Width: 0.44 (even)
• Frame Material: Glossy
