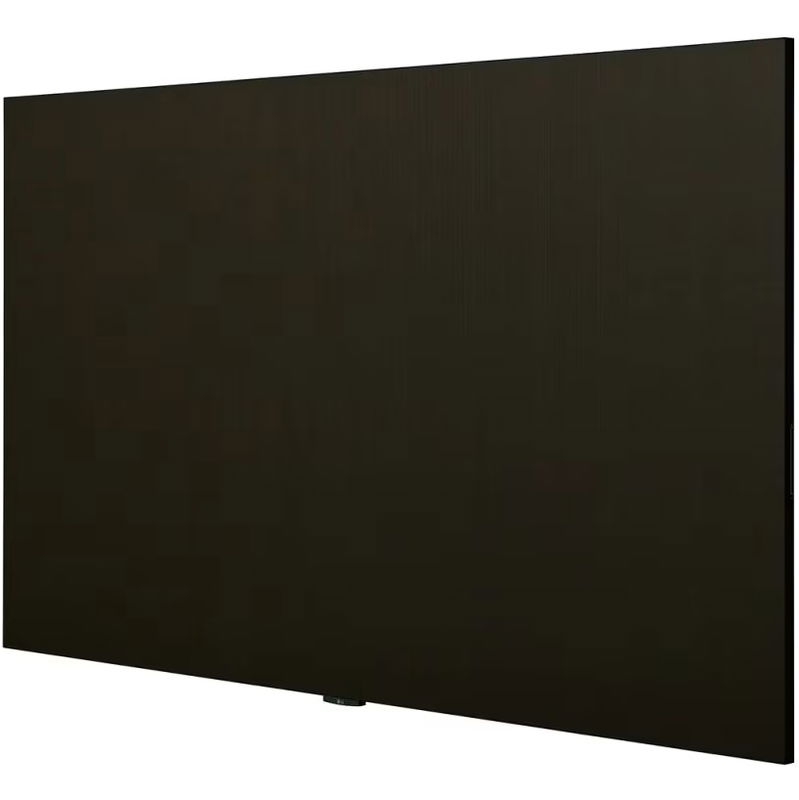

LG LAEC 136 Inch 1920x1080 FHD 500nit Video Wall Smart LED Digital Signage Display

The LAEC series is a 136-inch large screen which is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.

Quick Maintenance:
In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

LG’s Wireless Screen Sharing Solution, LG One: Quick Share:
LG One: Quick Share is a wireless screen sharing solution available through the LAEC series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode helps you to display the agenda, note before the meeting starts.

Easy Installation:
The installation process of the All-in-One Smart series is very simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.

Dedicated Installation Accessories:
The product is offered with the flight case which includes every necessary component including the landscape wall mount and tools for installation. The motorized stand is provided as an option, so that you can easily place it depending on your installation sites. With this stand, you can adjust a height of the screen including stand from 2.0 m to 2.5 m.

Simple Power Connection:
The LAEC series is operated with a single or double AC cable without the need for a complicated power connection and enables neat installation.

Real-Time LG ConnectedCare:
Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

Physical Parameters:

• Pixel Configuration: 3 in 1 SMD
• Pixel Pitch: 1.5625 mm
• Screen Resolution: 1,920x1,080
• Module Dimensions (WxH): 250x281.25 mm
• No. of Modules per Screen (WxH): 12x6 (Total 72)
• Screen Dimensions (W x H x D, including bezel): 3,004.6x1692.1x36.5 (Thickest 70) mm
• Screen Surface Area: 5.06 ㎡
• Weight: 129 kg
• Physical Pixel Density: 409,600 pixels/㎡
• Flatness of Unit Case: ±0.2 mm
• Unit Case material: Aluminum
• Service Access: Front

Optical Specifications:

• Min. Brightness (After Calibration): 500
• Color Temperature: 7300K
• Visual Viewing Angle (HxV): 160° x 160°
• Brightness Uniformity: 98%
• Color Uniformity: ±0.015Cx,Cy
• Contrast Ratio: 3000:1
• Processing Depth (bit): 16

Electrical Specifications:

• Power Consumption (W/screen, Max.): 2,000
• Power Consumption (W/screen, Avg.): 800
• Power Consumption (W/㎡, Max.): 395
• Power Consumption (BTU/h/Screen, Max.): 6,824
• Power Consumption (BTU/h/Screen, Avg.): 2,730
• Power Consumption (BTU/h/m², Max.): 1,348
• Power Supply: 100 to 240 V
• Frame Rate: 50 / 60 Hz
• Refresh Rate: ≥ 2880 Hz

Operation Specifications:

• LED Lifetime (Half brightness): 100,000
• Operating Temperature: 0℃ to +40℃
• Operating Humidity: < 90%RH (without condensation)
• IP rating Front: IP30
• IP rating Rear: IP20

Speaker:

• Speaker: Built-in (9W+9W)

Environment:

• RoHS, REACH

Controller:

• Embedded
