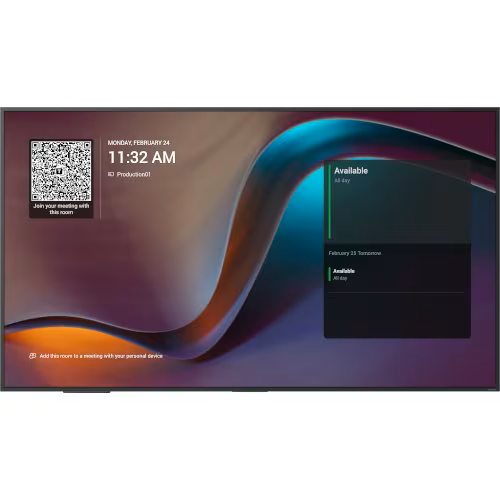

Yealink MeetingDisplay 86 Inch 3840x2160 4K 500nit 18/7 Commercial Display for MTR System

The MeetingDisplay is designed explicitly for the Yealink MTR system and can be paired with the MTR bar, UVC Camera, and MCore to provide the complete Yealink Meeting Solution.

Unified Installation:

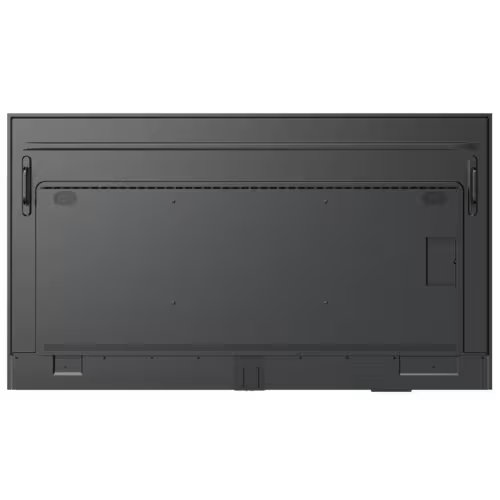

Customized mounting brackets are designed to be embedded into the back of the MeetingDisplay, allowing the Yealink MeetingBar, UVC Camera, and MCore to be directly attached without wall drilling. The installation and deployment process is simple and convenient, requiring only the devices to be slotted into the pre-designed mounting structure. Each device can be installed in under 5 minutes. Additionally, the MeetingDisplay can also provide network connectivity to the Yealink MeetingBar and MCore.

Unified Coordination:
This solution enhances user experience and efficiency by enabling seamless coordination between MeetingDisplay and MTR devices, ensuring automatic sleep/wake-up, power synchronization, and intelligent digital signage switching. It also reduces energy consumption, optimizes device utilization, and minimizes manual operations, providing a smarter and more cost-effective meeting environment.

Unified Configuration:
You can configure the MTR device and MeetingDisplay uniformly through a touch console, including basic settings, brightness, audio, etc.

Unified Management:
All meeting devices are managed through a unified platform, eliminating the hassle of managing multiple terminals and platforms. Devices like MeetingDisplay, MeetingBar, UVC Camera, and so on can all be managed through YMCS or YDMP, allowing customers to oversee various devices on a single platform. Also, as an accessory of the MTR system, the MeetingDisplay can be managed by the Yealink MTR Device regardless of whether it is connected to the network. All device status information is synchronized to the device management platform.

Display:

• Screen Size: 86 inch
• Display Type: IPS
• Surface Treatment: Anti-glare Coating
• Refresh Rate: 60Hz
• Grayscale Response Time: 8ms
• Color Gamut: 72% NTSC
• Colour Depth: 1.07G (10bit)
• Viewing Angle: 178°(H)/178°(V)
• Contrast Ratio: 1200: 1
• Resolution: 3840 x 2160
• Brightness: 500 cd/㎡
• Haze: 25%
• Operation Time: 7x18h

Audio:

• Speaker: 12W x 2

Content sharing:

• Wired screen sharing: HDMI In
• Wireless screen sharing: AirPlay, Miracast, Wireless Presentation Pod (unavailable in the United States)

Hardware Interfaces:

• Video: HDMI In 2.0 x 3
• Audio: 3.5mm Stereo Mini Jack (Output)
• USB: USB- A 2.0 x 2, USB- B 2.0 x 1
• LAN: 2x RJ45 10/100/1000M network ports
• Control: RS232 x 1, IP Control Via LAN
• Others: Reset x 1

Wireless:

• WiFi: Wi-Fi 6, 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax
• Bluetooth: Bluetooth 5.1
• IR: Supported

Installation Methods:

• Wall-mounted Installation
• Floor-stand Installation

System Overview:

• Operating System: Android 13
• Storage: Memory: 4G; Flash: 32G

Power:

• Power Adapter: 100- 240V~50/60Hz
• Power Consumption: Max: 323W; Typical: 268W; Off mode: less than 0.5W

Environmental Factors:

• Operating Temperature: 0~40°C
• Storage Temperature: -20~60°C
• Operating Humidity: 10~95%

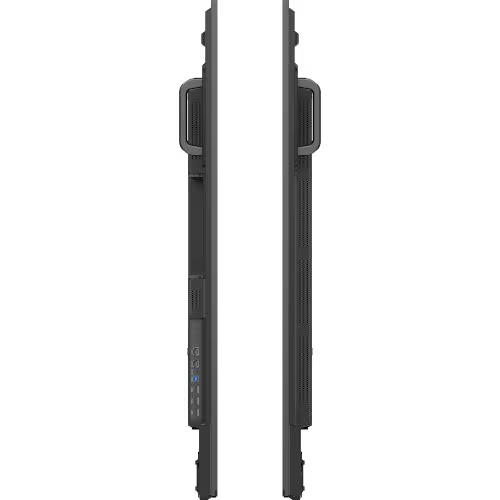

Physical Features:

• VESA Hole Specs: 600 x 400 mm
• VESA Mount Screw: M8
• Bezel Width: 9/9/9/9(L/R/U/D)
• Dimensions (W x D x H): 1927 x 61 x 1099 mm
• Weight: 45.2kg

• 1 x MeetingDisplay
• 1 x 3m AC power cable
• 1 x 3m CAT5E network cable
• 1 x Quick Start Guide
• Cable ties
• 1 x Remote Controller (IR)
• 2 x AAA Batteries
• 1 x MCore bracket (Compatible with MCore 4, MCore 4 is sold separately)
