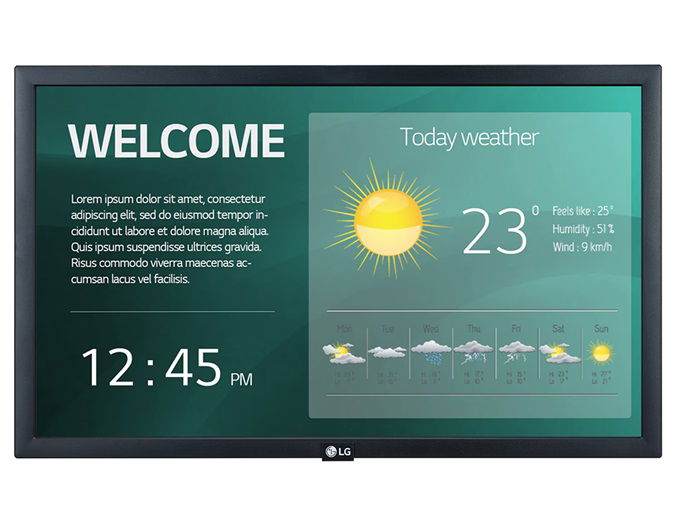

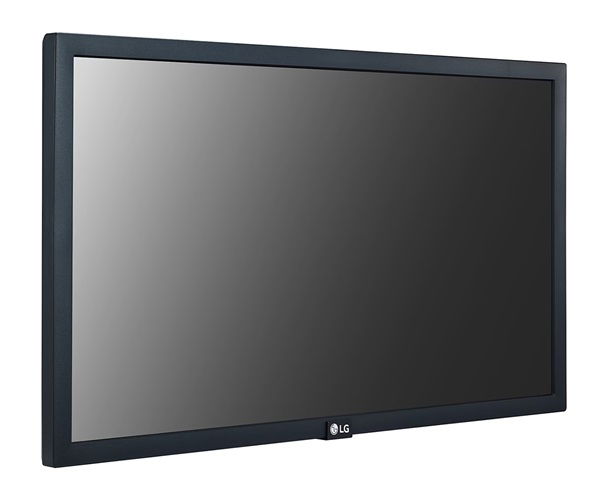

LG 22SM3G-B 22 Inch 1920 x 1080 (FHD) 14ms 250nit 16/7 IPS webOS Digital Display

22" Signage with More Utility for Commercial Space. 22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.

High Performance SoC with webOS:
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

Various Sensor Applications:
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.

A Wide Range of Interfaces:
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.

USB Plug & Play:
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

Smart Signage Platform | Content Sharing:
Content Mirroring among devices is more convenient on a Wi-Fi network.

Smart Signage Platform | Real-time Promotion:
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

Smart Signage Platform | Wireless Solution:
22SM3G operates as a virtual router which can be a wireless access point for mobile devices.

Remote Monitoring and Control:
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

Panel:

• Screen Size: 21.5"
• Panel Technology: IPS
• Aspect Ratio: 16:9
• Native Resolution: 1920 x 1080 (FHD)
• Refresh Rate: 60 Hz
• Brightness (Typ.,): 250 cd/m²
• Contrast Ratio: 1,000:1
• Viewing Angle (H x V): 178 x 178
• Response Time: 14ms (G to G)
• Surface Treatment (Haze): 25 %
• Life Time (Min.): 30,000 Hrs
• Operation Hours (Hours / Day): 16 / 7
• Portrait / Landscape: Yes / Yes

Connectivity:

• Input: HDMI (2, HDCP2.2), USB 2.0 Type A, Audio In
• External Control: RS232C In (Phone-jack), RJ45 (LAN) In, IR In

Mechanical Specification:

• Bezel Color: Black
• Bezel Width: 16.3 mm (Even Bezel)
• Weight (Head): 3.34 kg
• Monitor Dimensions (W × H × D): 510.3 x 302.1 x 53.8 mm
• Handle: No

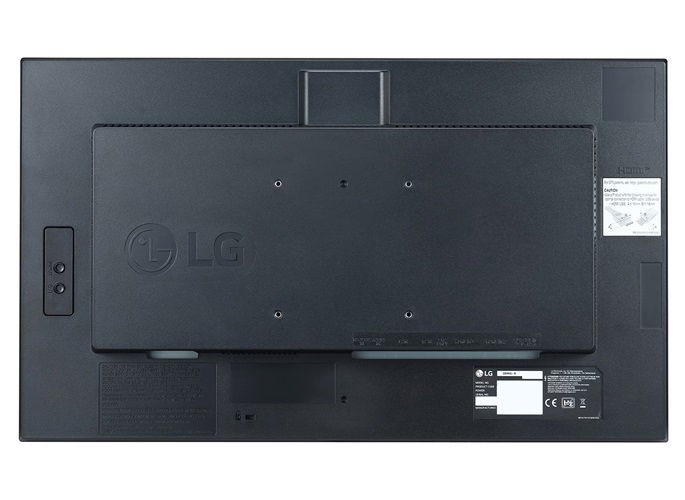

• VESA Standard Mount Interface: 100 x 100 mm

Environment Conditions:

• Operation Temperature: 0°C to 40°C
• Operation Humidity: 10% to 80%

Power:

• Power Supply: AC 100-240V~, 50/60Hz
• Power Type: Built-In Power
• Power Consumption (Typ. / Max.): 30 W / 33 W
• Power Consumption (Smart Energy Saving): 15 W ± 5 %

Sound:

• Speaker: Yes (1 W x 2 ea)
