Samsung VHC-R 55 Inch FHD 1920 x 1080 700nit 24/7 Narrow Bezel Video Wall IPS Digital Signage Display

With even bezels measuring just 0.44mm, the VHC-R delivers an impactful and virtually seamless visual experience. Its modern, slim design allows the display to blend into any business environment.

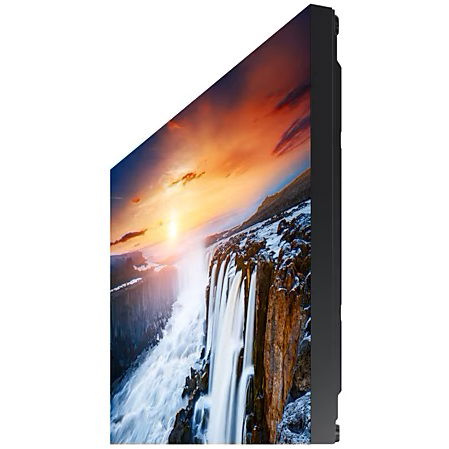

Slender Depth:
The slender design and cabinet depth of less than 70mm provides flexibility for installation and is intended to save space. With an aesthetically appealing design, this display creates a clean, modern look for retail or other public spaces.

View content from a variety of angles:
The VHC-R ’s wide viewing angles mean content is easily visible to viewers, even when not standing directly in front of the display. This helps to deliver audiences clear information in a range of layouts and locations.

Brilliant images:
Immerse yourself in brilliant image presentation with 700nit brightness. Anti-glare panels help deliver incredible visibility in multiple light conditions. Combined with a high contrast ratio, this helps to deliver sharp images to audiences 24/7.

Image enhancement:
Samsung’s powerful picture enhancement technology is designed to deliver vibrant and clear content. Picture Enhancer mode improves colour saturation and contrast. Using Black Equaliser mode dark images are lightened, illuminating details to make information easier to see.

Convenient mobile calibration:
Samsung’s Colour Expert Pro mobile solution provides quick and easy Video Wall calibration through a compatible mobile camera. With the solution’s intuitive UI, even non-expert users can adjust the video wall’s white balance simultaneously without the need for additional equipment.

Industry standard certification:
The VHC-R series is EMC class B compliant, meeting strict standards of electromagnetic wave emission, while IP5X certification protects the display against dust. The display packaging is also ISTA-certified, minimising damage during delivery.

Display:

• Diagonal Size: 55 Inch
• Panel Type: IPS
• Resolution: 1,920 x 1,080
• Pixel Pitch (HxV): 0.63x0.63
• Brightness (Typ): MAX 700 nit
• Contrast Ratio: 1,100:1
• Viewing Angle (H/V): 178/178
• Response Time: 8ms
• Colour Gamut: 72 %
• Glass Haze: 28 %
• H-Scanning Frequency: 57.3kHz ~ 70kHz
• Maximum Pixel Frequency: 78MHz
• V-Scanning Frequency: 47Hz ~ 63Hz
• Contrast Ratio (Dynamic): 140,000:1
• Operation Time Support: 24/7

Connectivity:

• HDMI In: 2
• DP In: 1
• DVI In: 1
• Version of HDMI: 2
• Version of DP: 1.2
• Version of HDCP: 2.2
• USB: 1
• IR In: Yes
• Audio In: Yes
• Audio Out: Stereo Mini Jack
• Video Out: Yes
• Power Out: No
• RS232 In: Yes
• RS232 Out: Stereo Mini Jack
• RJ45 In: Yes
• WiFi: No

Power:

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (On Mode): 250 W
• Power Consumption (Sleep Mode): 0.5 W

Dimension & Weight:

• Dimension (WxHxD): 1211.0 x 681.7 x 69.9 mm
• Weight: 16.8 kg

Operation Conditions:

• Temperature: 0℃~ 40℃
• Humidity: 10 ~ 90%

Mechanical Specification:

• VESA Mount: 600 x 400 mm
• Bezel Width: 0.44 (even)
• Bezel Colour: Black
• Frame Material: Glossy

Optional Feature:

• Mount: Yes
• Stand: No
