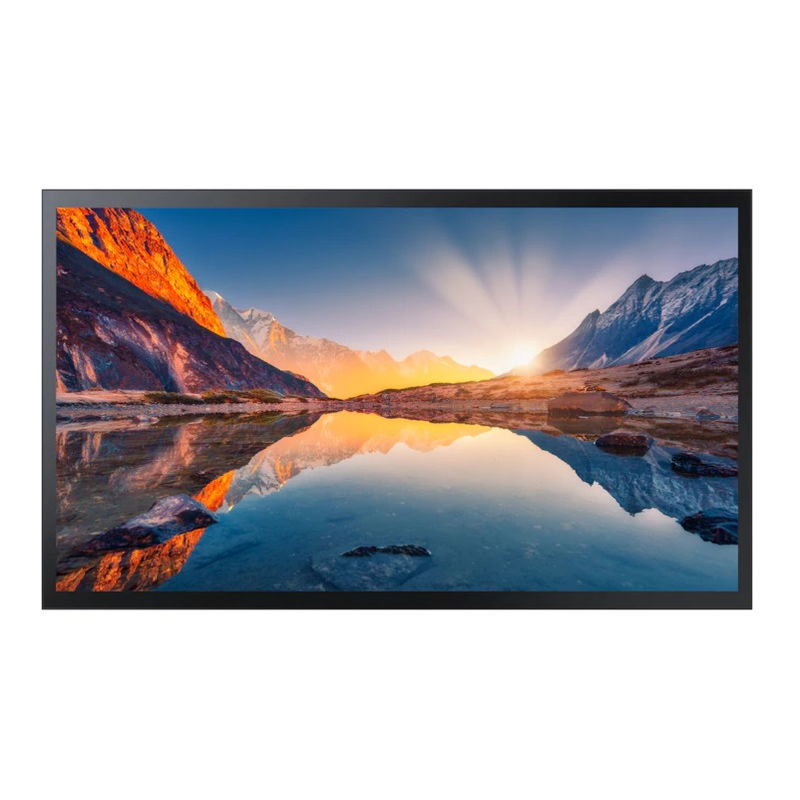

Samsung QMR-T Series 32 Inch 1920x1080 Full HD 400nit Touchscreen Edge Lit Commercial Display

QMR-T displays maximise the touch display experience with a built-in, high performance Tizen-based media player. The all-in-one design eliminates the need for an external media player and an upgraded Tizen OS makes it easier than ever to utilise various touch apps.

Powerful touch experience:
Upgraded Tizen OS makes playback more stable and opens up new possibilities with high-speed content. A responsive capacitive touch functionality offers an engaging user experience and the user-friendly design enables comfortable, productive digital interaction.

Captivate customers with UHD content:
Samsung’s QMR-T series provides UHD resolution capabilities for incredibly clear content, increasing customer engagement with lifelike images that have been optimised to display exactly as intended.

Built to be reliable and efficient:
With an IP5X rating standard, the display is guaranteed to be efficient and reliable even in dusty environments. An innovative centre IR means businesses implementing the display, won’t have to make any adjustments and a conformal coating protects the display from repeated customer interactions.

Integrated content and device management solution:
Samsung’s MagicINFO solution enables easy content creation for touch display and simple scheduling and management from a selection of curated images and videos. An early warning alert system ensures no downtime.

Display:

• Diagonal Size: 32"
• Panel Type: Edge LED BLU
• Resolution: 1,920 x 1,080
• Pixel Pitch (HxV): 0.3638 x 0.3638 (mm)
• Brightness (Typical): 400(without glass), 300(with glass)
• Contrast Ratio: 5000:1(without glass)
• Viewing Angle (H/V): 178/178
• Response Time: 8ms
• Colour Gamut: 72%
• Glass Haze: 2% (without Glass)
• H-Scanning Frequency: 30 ~ 81kHZ
• Maximum Pixel Frequency: 594MHz
• V-Scanning Frequency: 48 ~ 75HZ
• Dynamic Contrast Ratio: Mega DCR
• Touch: Yes
• Touch Technology: Capacitive

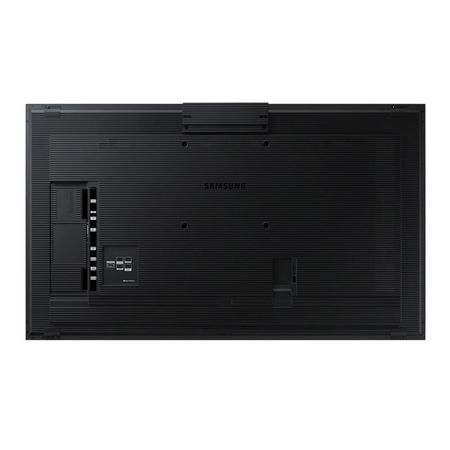

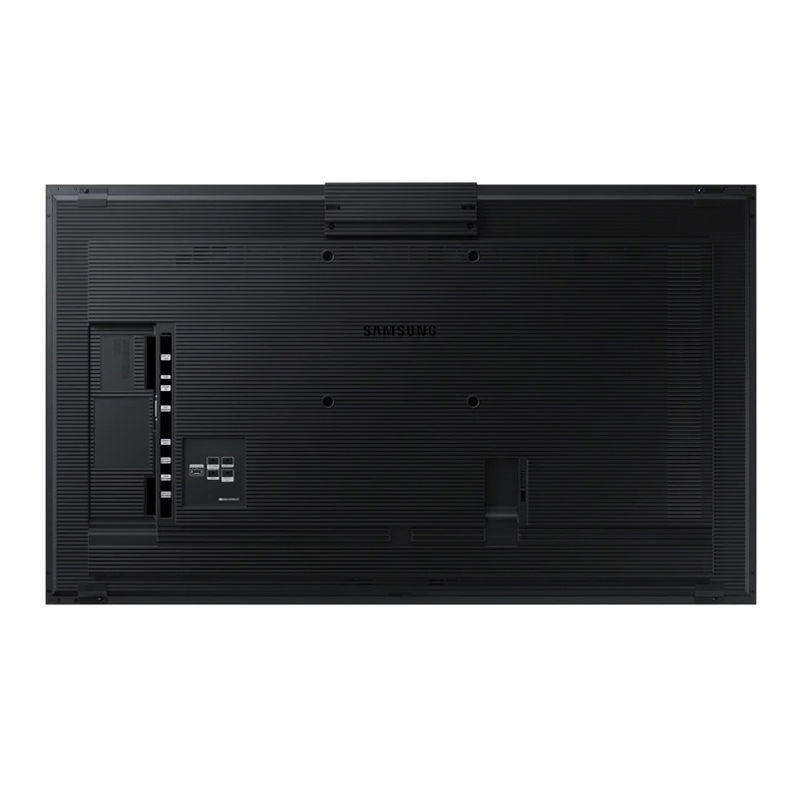

Connectivity:

• HDMI In: 2
• DP In: Yes
• USB: 2
• IR In: Yes
• HDBaseT In: No
• Audio In: No
• Audio Out: Stereo Mini Jack
• Video Out: Yes
• RS232 In: Yes
• RS232 Out: Yes
• RJ45 In: Yes
• WiFi: Yes
• 3G Dongle: No
• Bluetooth: Yes

Electrical:

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (On Mode): 72
• Power Consumption (Sleep Mode): 0.5 W

Internal Player (MagicInfo):

• MagicInfo Daisychain Videowall Support: Yes

Physical Specification:

• Operating Temperature: 0°C~ 40°C
• Operating Humidity: 10 ~ 80%, non-condensing
• VESA Mount: 200 x 200 mm
• Bezel Width: 24.5(U/D), 21.5(L/R)
• Frame Material: Non-Glossy
• Dimension (W x H x D): 744.4 x 444.6 x 48.2 mm
• Weight: 8.3 kg
