Yealink ZVC840 Zoom Rooms System for Large rooms and Extra-Large spaces

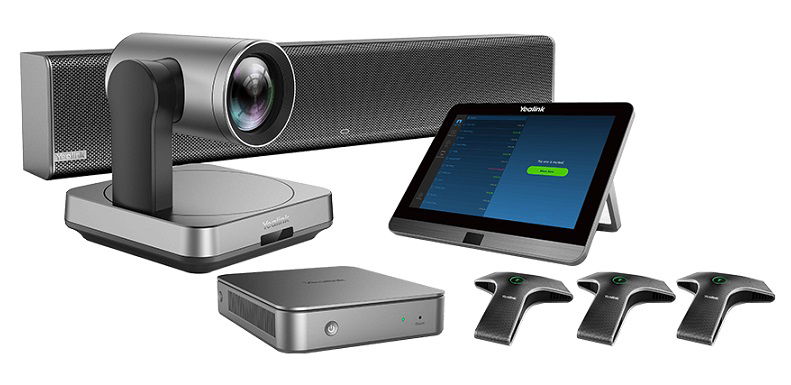

ZVC840 Zoom Rooms system is a bundle video solution designed for immersive Zoom meetings in large rooms and extra-large spaces. With the UVC84 camera, VCM34 microphone and MSpeaker II, and MCore mini-PC, the ZVC840 Zoom Rooms system delivers users the premium audio and video performance and native Zoom Rooms experience.

Total Device Package Offer:
Yealink delivers a complete Zoom Rooms package containing a full hardware suite (MCore, camera, audio devices, and touch console) as well as the requisite software and license, simplifying the purchasing process and deployment while making the after sales service experience more convenient than ever.

Premium Audio and Video Meeting Experience:
UVC84 is Yealink’s next-generation camera that supports 4K/30FPS video calls to make your business discussion be as life-like and interactive as possible. For its premium voice quality, the solution is combined with the Yealink audio algorithm and is equipped with three or four microphones that supports 20ft/360° voice pickup range. Featuring with auto framing and camera presets, it can free user from complicated PTZ operations. Besides, Yealink Noise Proof technology effectively eliminates background distractions and noises, guaranteeing a crystal-clear voice even in a noisy environment.

Simple to Deploy, Easy to Use:
This solution provides you with Yealink MTouch ll, an individual touch console that separates from the mini-PC, not only making the deployment more flexible but also rewarding you a tidy and smart conference table. With the eight-inch multi-touch screen display, Yealink MTouch ll allows users to join the meeting, add participants, adjust volume and control the PTZ (Pan, Tilt, Zoom) of the camera, making meeting management a snap.

Easily Manage Your Devices Remotely:
Yealink Device Management Platform or cloud service could easily manage Yealink Zoom Rooms Kit, allowing administrators to remotely control devices with ease. The platform supports remote configuration, firm-ware upgrading, monitoring and diagnosis. Through Windows Update, users can get the latest version of the UVC camera driver and Yealink Plug-in for Zoom Rooms, further enhancing the user’s Zoom Rooms experience.

MCore Mini-PC Package:

• 8th-gen Intel QUAD-CORE i5
• Memory: 8GB (2 x 4GB)
• Storage: 128GB SSD
• 2 x HDMI video output with CEC supported
• Bluetooth and Wi-Fi
• 4 x USB3.0 Type-A
• 1 x VCH port for connecting to MTouch ll
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot

Yealink MTouch ll Touch Console:

• 8-inch IPS screen
• 1280 x 800 resolution
• 10-point capacitive touch screen
• 3.5mm headset jack
• Human Motion Sensor
• Angle adjustable bracket (28° ~ 50°)

Yealink UVC84 USB PTZ Camera:

• 4K camera
• 12x optical zoom
• Field of view (diagonal): 80°
• Auto Framing
• Camera presets
• Pan range: 200°
• Tilt range: 130°
• 1 x Line-out (3.5mm)
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

Yealink VCM34 Array Microphone:

• Built-in 3-microphone array
• 20ft (6-meter) voice pickup range
• Cascade connection up to 4 units
• Mute button with LED

Yealink Soundbar:

• Frequent response: 100Hz - 20KHz
• S/N: ≥70dB
• 1 x Line-in (3.5mm)

Physical Features:

• Operating humidity: 10~95%
• Operating temperature: 040°C (+32104°F)
• Storage temperature: -3070°C (-22158°F)
• Net Weight: 10.7Kg
