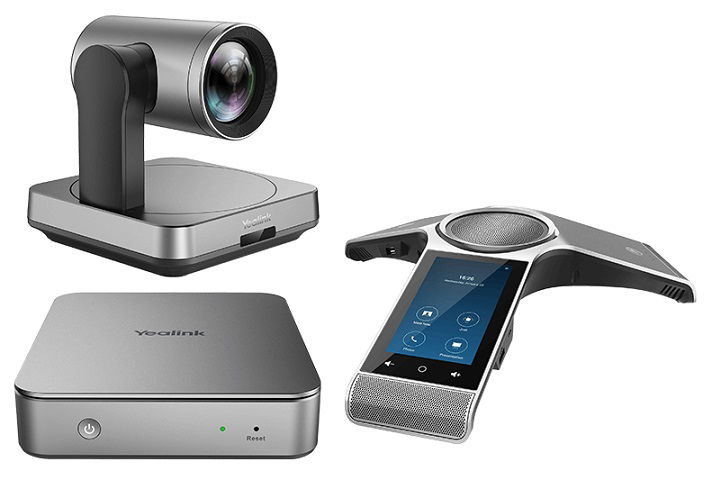

Yealink ZVC640 Zoom Rooms System for Medium and Large Room

ZVC640 Zoom Rooms system is a bundle video solution designed for immersive Zoom meetings in medium and large rooms. With the UVC84 camera, the conference phone CP960 integrating with microphones, speakers and meeting console, the ZVC640 Zoom Rooms system delivers users the premium audio and video performance and native Zoom Rooms experience.

4K Performance Capture All Movements:
Featured 4K sensor and 12x optical zoom, the UVC84 camera achieves a gorgeous video experience perfectly for medium and large rooms.
The Auto Framing enables the UVC84 to recognize attendees and frame everyone automatically in the most appropriate view in rooms of any size.
The auto-privacy protection design secures the safety of your meetings.

Premium Audio Experience:
Featuring a built-in three-microphone array, the Yealink CP960 Conference Phone ensures a 360-degree voice pickup range with up to a six-meter radius. Thanks to Yealink Noise Proof Technology, everyone in the room can be heard clearly. What's more, by adding two CPW90 wireless expansion microphones, the CP960 can reach up to a 12-meter voice pickup range without additional cable connections.

Simplified Deployment with CP960 One-cable Technology:
Integrating microphones, speaker, and meeting console, the Yealink CP960 conference phone supports one cable connection in the conference table, eliminates the need for a traditional USB cable from the TV area to the conference table area, greatly simplify deployment.

Remote Management:
Yealink Device Management Platform or cloud service can manage the Yealink ZVC640 Zoom Rooms Kits, allowing administrators to control devices remotely in an easy way. The platform supports remote configuration, firmware upgrading, monitoring, and diagnosis. Through Windows Update, users can get the latest version of the UVC camera driver and Yealink Plug-in for Zoom Rooms, enhancing the Zoom Rooms experience.

MCore Mini-PC Package:

• 8th-gen Intel QUAD-CORE i5
• Memory: 8GB (2 x 4GB)
• Storage: 128GB SSD
• 2 x HDMI video output with CEC supported
• Bluetooth and Wi-Fi
• 4 x USB3.0 Type-A
• 1 x VCH port for connecting to MTouch II
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot

CP960 Conference Phone:

• 5” 720x1280 capacitive touch screen
• 1 x RJ45 10/100M Ethernet port
• Power over Ethernet (IEEE 802.3af ), class 4
• 2 x Wired MIC port
• 2 x USB 2.0 port
• 1 x 3.5mm audio-out port
• 1 x USB 2.0 Micro-B device port
• 1 x Security slot

Yealink UVC84 USB PTZ Camera:

• 4K camera
• 12x optical zoom
• Field of view (diagonal): 80°
• Auto Framing
• Camera presets
• Pan range: 200°
• Tilt range: 130°
• 1 x Line-out (3.5mm)
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

Physical Features:

• Operating humidity: 10~95%
• Operating temperature: 0~40°C
• Storage temperature: -30~70°C
• Net Weight: 7.5Kg
