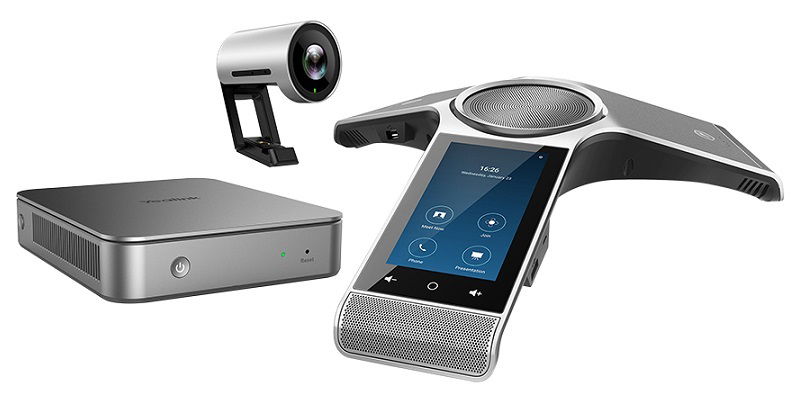

Yealink ZVC300 Zoom Rooms System

The Yealink ZVC series of video solution is designed for immersive (intelligent) Zoom meetings in in various sizes meeting rooms. The ZVC series is a bundle video solution that includes everything you need to seamlessly and smartly meet, connect and collaborate with internal and external users. The ZVC series delivers premium audio and video quality thanks to its Yealink audio devices and UVC series of cameras. Featuring Yealink HD audio and Noise Proof technology, everyone’ s voice in the room can be heard clearly.

Native Zoom Rooms Experience:
In partnership with Zoom, the Yealink video solution ZVC300 Zoom Rooms Kit come fully integrated with Zoom Rooms and include pre-installed Zoom Rooms software. It delivers premium audio and video quality thanks to the combination of the Yealink CP960 Conference Phone and Yealink’s UVC cameras, which work in tandem to provide users a native Zoom Rooms experience.

Premium Audio and Video Meeting Experience:
UVC30 is Yealink’s new generation ultra HD camera with 120° field-of-view lens that supports 4K/30FPS video calls to enhance your business discussion as much as possible. Featuring auto-framing, UVC30 free users from doing the PTZ control, always provide a best picture during the meeting. For audio experience, featuring a built-in three-microphone array, the Yealink CP960 Conference Phone ensures a 360-degree voice pickup range with up to a 20-foot (six-meter) radius. Thanks to Yealink Noise Proof Technology, background noise is minimized so that everyone in the room can be heard clearly.

Simple to Deploy, Easy to Use:
Yealink one-cable technology eliminates the need for a traditional USB cable from the television area to the conference table area, greatly simplifying deployment. The Yealink CP960 Conference Phone further declutters the conference area by uniting microphones, speaker and meeting console into a single package. When serving as a meeting console, the five-inch multi-touch screen display allows users to join the meeting, add participants, adjust volume and control the PTZ (Pan, Tilt, Zoom) of the camera, making meeting management a snap.

MCore Mini-PC:
• 8th-gen Intel QUAD-CORE i5
• Memory: 8GB (2 x 4GB)
• Storage: 128GB SSD
• 2 x HDMI video output with CEC supported
• Bluetooth and Wi-Fi
• 4 x USB3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot
• Built-in cable management

CP960 Conference Phone:
• 5” 720x1280 capacitive touch screen
• 1 x RJ45 10/100M Ethernet port
• Power over Ethernet (IEEE 802.3af ), class 4
• 2 x Wired MIC port
• 2 x USB 2.0 port
• 1 x 3.5mm audio-out port
• 1 x USB 2.0 Micro-B device port
• 1 x Security slot

UVC30-Room 4K USB Camera:
• 4K video resolution
• Maximum 4K/30FPS
• 3x digital zoom
• Field of view (diagonal): 120°
• Auto-framing
• Camera presets
• 1 x 3m USB 2.0 cable

Physical Specifications:
• Operating humidity: 10~95%
• Operating temperature: 0~40°C (+32~104°F)
• Storage temperature: -30~70°C (-22~158°F)
• Net Weight: 4.7 kg

• 1x MCore Mini-PC
• 1x CP960 conference phone
• 1x UVC30-Room 4K USB camera
