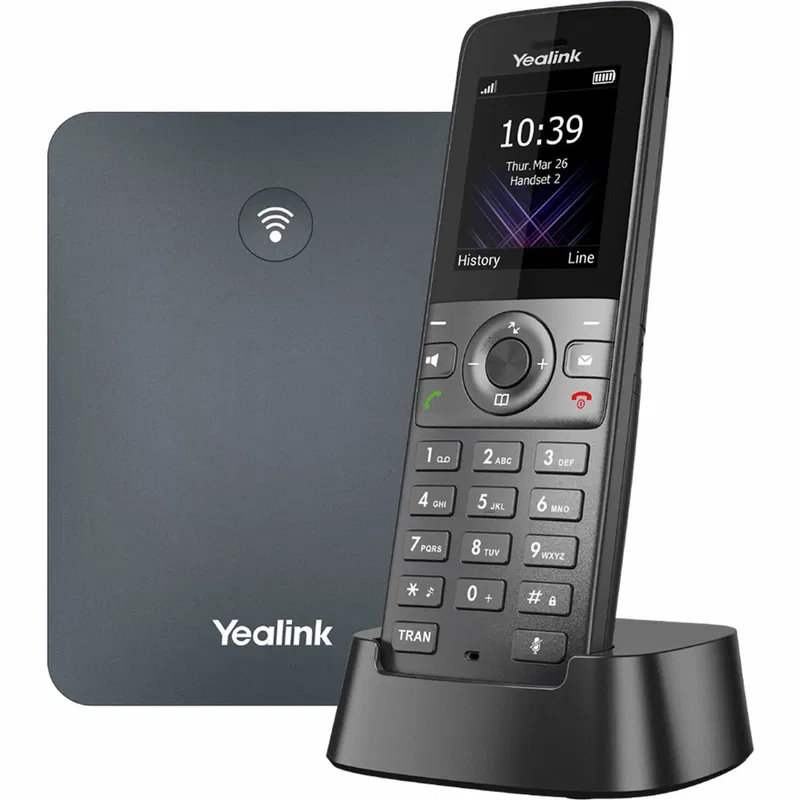

Yealink W73P + W70B DECT SIP Cordless Phone System

The Yealink W73P, being a high-performance SIP cordless phone system, which can register 10 Yealink DECT W73H handsets, is the ideal solution for small and medium-sized businesses. It allows you to enjoy superb mobility and efficient flexibility immediately as well as significantly eliminates additional wiring troubles and charges. Featuring more functions, lines and mobility, it supports up to 10 SIP accounts and 20 simultaneous calls, improving signal strength and responsiveness to provide a stable and good experience for your mobile communications. The Yealink W70B is the DECT IP base station for small and medium-sized businesses. Paring with up to a total of 10 Yealink W73H/W56H/W59R/CP930W/color screen DDPhone (T54W+DD10K) DECT handsets, W70B allows you to enjoy superb mobility and efficient flexibility immediately as well as significantly eliminates additional wiring troubles and charges. A powerful chip ensuring a better and higher performance, this DECT IP base station not only supports up to 10 VoIP accounts and 20 simultaneous calls, but also speeds up its startup and signal connection, provides no perception upgrade, slashes its upgrade downtime as well.

• High-performance SIP cordless phone system
• 1.8" 128 x 160 TFT color screen with intuitive user interface
• Up to 20 simultaneous calls
• Up to 10 DECT cordless handsets
• Up to 10 SIP accounts
• Support Opus audio codec
• Noise Reduction System
• FNR (Flexible Noise Reduction)
• Up to 35-hour talk time (in ideal conditions)
• Up to 400-hour standby time (in ideal conditions)
• Quick charging: 10-min charge time for 2-hour talk time
• TLS and SRTP security encryption
• Headset connection via 3.5 mm jack
• Charger wall mountable

Phone Features:

• Up to 20 simultaneous calls
• Up to 10 handsets
• Up to 10 SIP accounts
• Up to 2 simultaneous calls per handset
• Up to 5 repeaters per base station (RT20U)
• Up to 6 repeaters per base station (RT30)
• Handset selection for receiving call
• Handset and number selection for placing call
• Paging, intercom, auto answer, dial plan
• Call hold, call transfer, 3-way conference
• Switching between calls
• Call waiting, mute, silence, DND
• Caller ID with name and number
• Anonymous call, Anonymous call rejection
• Call forward (always/busy/no answer)
• Speed dial, voicemail, redial
• Message Waiting Indication (MWI)
• Music on hold (server-based)
• Local phonebook for up to 1000 entries(store in the base)
• Remote phonebook/LDAP/XML phonebook
• Phonebook search/import/export
• 100 call history per handset: All/Placed/Missed/Received
• Direct IP call without SIP proxy
• Reset to factory, reboot
• Keypad lock, emergency call
• Broadsoft directory, BroadSoft call log
• Broadworks feature key synchronization
• Shared Call Appearance (SCA)
• XML browser

Personalization:

• 9 ringer melodies
• Screen saver
• Multilingual user interface

Management:

• Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
• Auto-provision with PnP
• Handset upgrade: OTA (Over-The-Air)
• Configuration: browser/phone/auto-provision
• Trace package and system log export

Audio Features:

• Full-duplex speakerphone
• Hearing Aid Compatibility (HAC) compliant
• FNR (Noise Cancellation)
• Receiver volume control: 5 steps
• Ringer volume control: 5 steps+off
• Multiple advisory tones
• Acoustic warning for low battery status
• DTMF
• Wideband codec: Opus, AMR-WB (optional), G.722
• Narrowband codec: PCMU, PCMA, G.726, G.729, G.729A, iLBC
• VAD, CNG, AGC, PLC, AJB
• AEC (supported by W73H)
• Support VQ-RTCPXR (RFC6035), RTCP-XR

Network Features:

• SIP v1 (RFC2543), v2 (RFC3261)
• SNTP/NTP
• VLAN (802.1Q and 802.1P)
• 802.1x, LLDP
• STUN Client (NAT Traversal)
• UDP/TCP/TLS
• IP assignment: static/DHCP
• Support outbound proxy server backup

Security:

• Open VPN
• Transport Layer Security (TLS)
• HTTPS (server/client), SRTP (RFC3711)
• Digest authentication
• Secure configuration file via AES encryption
• Support SHA256/SHA512/SHA384
• Three-level configuration mode: Admin/Var/User

DECT:

• Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
• DECT Standards: CAT-iq2.0 Interface
• 1 x RJ45 10/100M Ethernet port
• Power over Ethernet (IEEE 802.3af), Class 1
• Headset jack (3.5 mm)

Physical Features:

• Indoor Range: 50m (in ideal conditions)
• Outdoor Range: 300m (in ideal conditions)
• Standby Time: 400 hours (in ideal conditions)
• Talk Time: 35 hours (in ideal conditions)
• 1.8" 128 x 160-pixel TFT color display
• Desktop or wall mountable
• LCD backlight, key backlight
• Energy-saving ECO mode/ECO Mode+
• Backlit keypad with 25 keys: Standard ITU telephone keypad, 12 keys, 4x3, with star and pound key, 5 navigation keys (left, right, up, down, OK), 2 softkeys, 6 function keys (Speaker, message, Off-hook, Cancel, TRAN, Mute)
• 6 shortcut keys
• Three LED indicators on W70B: 1 x Registration LED, 1 x Network Status LED, 1 x Power Indicator LED
• External Yealink AC adapter: AC 100-240V Input and DC 5V/0.6A Output
• Color: Handset: Space Grey; Base: Classic Grey
• Handset size: 144.5 mm x 48 mm x 21 mm
• Base station size: 130mm x 100mm x 25.1mm
• Operating humidity: 10~95%
• Operating temperature: -10~+50°C (+14~122°F)
• Storage temperature: -30 ~ 70°C (-22 ~ 158°F)

• W73H Handset
• W70B Base Station
• Base Stand
• Charger Cradle
• Two Power Adapters
• Ethernet Cable
• Belt Clip
• Rechargeable Battery
• Quick Start Guide
