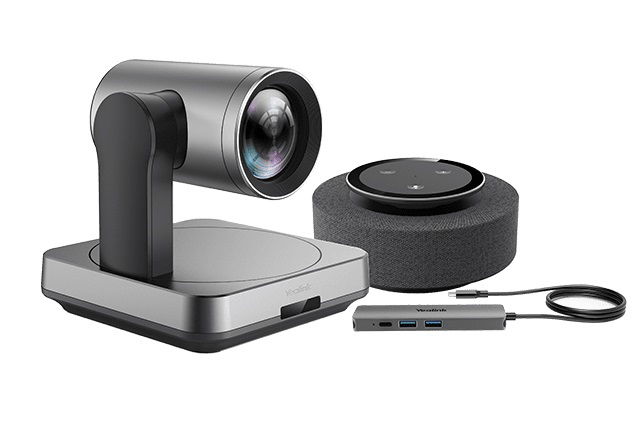

Yealink UVC84-BYOD Meeting Kit for Medium Rooms

Yealink UVC84-BYOD meeting kit is dedicated for medium and large rooms with UVC84 4K camera, audio devices and BYOD box for the complete meetings with any UC platforms. Users can enjoy the easy plug-and-play installation, excellent video and audio experience with the cost-effective solution.

One Cable, Plug-and-Play. Easy and Effective:
To deploy the UVC84-BYOD meeting kit, you only need to connect the UVC84 camera and the audio device like VCM34 microphone or the MSpeech microphone in the meeting room, and plug the Type-C cable into your laptop to start meetings. The Plug-and-play feature ensures your installation easily without adding extra drivers, saving time for effective collaboration.

4K Video Covering Medium Meeting Spaces:
Featured 4K sensor and 36x HD zoom, the UVC84 camera achieves a gorgeous video experience perfectly for medium and large rooms. The Auto Framing enables the UVC84 to recognize attendees and frame everyone automatically in the most appropriate view in rooms of any size.

Excellent Audio Experience:
UVC84 camera integrates the audio feature in it as well. Perfectly working with the UVC84 camera and VCM34 array microphone is capable of providing a wonderful audio experience. You can also use MSpeech USB speakerphone as the audio device, awarding you a crystal voice experience.

Yealink UVC84 Camera:
• 4K sensor
• 80° FoV
• 12x optical zoom, 3x digital zoom
• Pan: ±100°, Tilt: +40°, -90°
• Auto Framing
• Camera presets

UVC84 Connections:
• 1x USB2.0 Type-B port
• 1x Yealink microphone port (RJ-45)
• 1x 3.5mm line-out port
• 1x Power port
• 1x Security lock slot
• 1x Reset slot

MSpeech USB Speakerphone:
• 3 MEMS microphone array for HD voice pickup
• 4W HD Speaker
• 360° 20ft (6-meter) voice pickup range
• Full-duplex technology
• Acoustic echo cancellation (AEC)

Yealink BYOD Box:
• 2x USB3.0 Type-A port
• 1x HDMI output
• 1x 1.5m Type-C cable for connecting to laptop, support charging via USB-C on laptop
• 1x Type-C port for power adapter
• PD power adapter

Physical Specifications:
• External Yealink Power Adapter for UVC84
• Operating humidity: 10~95%
• Operating temperature: 0~40°C
• Net Weight: 4.7Kg
