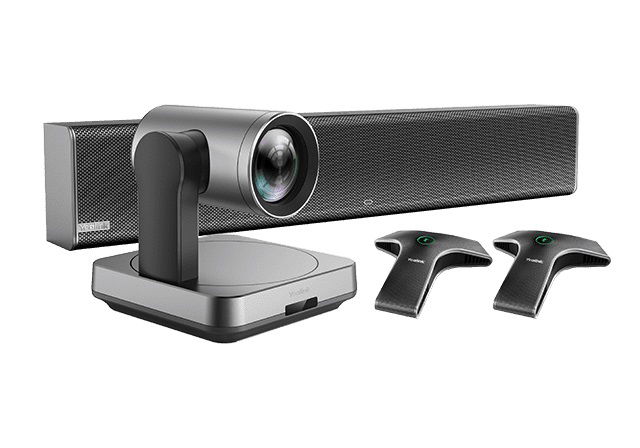

Yealink UVC84-BYOD Meeting Kit for Large Rooms

Yealink UVC84-BYOD meeting kit is dedicated for medium and large rooms with UVC84 4K camera, audio devices and BYOD box for the complete meetings with any UC platforms. Users can enjoy the easy plug-and-play installation, excellent video and audio experience with the cost-effective solution.

4K Ultra HD video quality:
UVC84 camera delivers 4K video output with excellent sharpness and smoothness, accurately reproducing every detail, color and therefore awarding you a vivid video experience.

HD zoom, large field of view:
With 12x optical zoom, 3x digital zoom and 80° field of view, UVC84 can easily cover a medium or large meeting space. Everyone sitting in the meeting room can be clearly seen by the remote party.

Auto Framing:
UVC84 camera aims to provide a better auto framing feature to free your hands from doing PTZ control and make you focus on your meeting.

Excellent Audio Experience:
UVC84 camera integrates the audio feature in it as well. Perfectly working with the UVC84 camera, VCM34 array microphone combined with MSpeaker II soundbar is capable of providing a wonderful audio experience. You can also use MSpeech USB speakerphone as the audio device, awarding you a crystal voice experience.

Long Endurance:
Capable of charging laptop via Type-C cable of BYOD box, this solution allows users to take a long meeting even without their own power adapters.

Easy and Flexible deployment:
The complete mounting kits bring you a quick and flexible installation method, which allows you to either put UVC84 on the conference table or mount it on the top of TV, on the wall, on the ceiling, onto a TV stand or a tripod according to your needs.

Yealink UVC84 Camera:

• 4K sensor
• 80° FoV
• 12x optical zoom, 3x digital zoom
• Pan: ±100°, Tilt: +40°, -90°
• Auto Framing
• Camera presets

UVC84 Connections:

• 1x USB2.0 Type-B port
• 1x Yealink microphone port (RJ-45)
• 1x 3.5mm line-out port
• 1x Power port
• 1x Security lock slot
• 1x Reset slot

VCM34 Array Microphone:

• Built-in 3-microphone array
• 360° 20ft (6-meter) voice pickup range
• Cascade connection up to 6 units
• Mute button with bicolor LED

MSpeaker II Soundbar:

• Frequent response： 100Hz - 20KHz
• S/N：≥70dB
• 1 x Line-in (3.5mm)

MSpeech USB Speakerphone:

• 3 MEMS microphone array for HD voice pickup
• 4W HD Speaker
• 360° 20ft (6-meter) voice pickup range
• Full-duplex technology
• Acoustic echo cancellation (AEC)

Physical Specifications:

• External Yealink Power Adapter for UVC84
• Operating humidity: 10~95%
• Operating temperature: 0~40°C
• Net Weight: 6.1Kg
