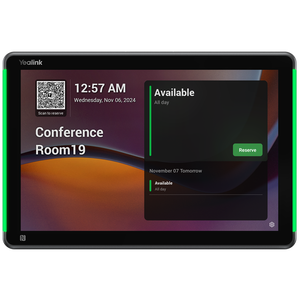

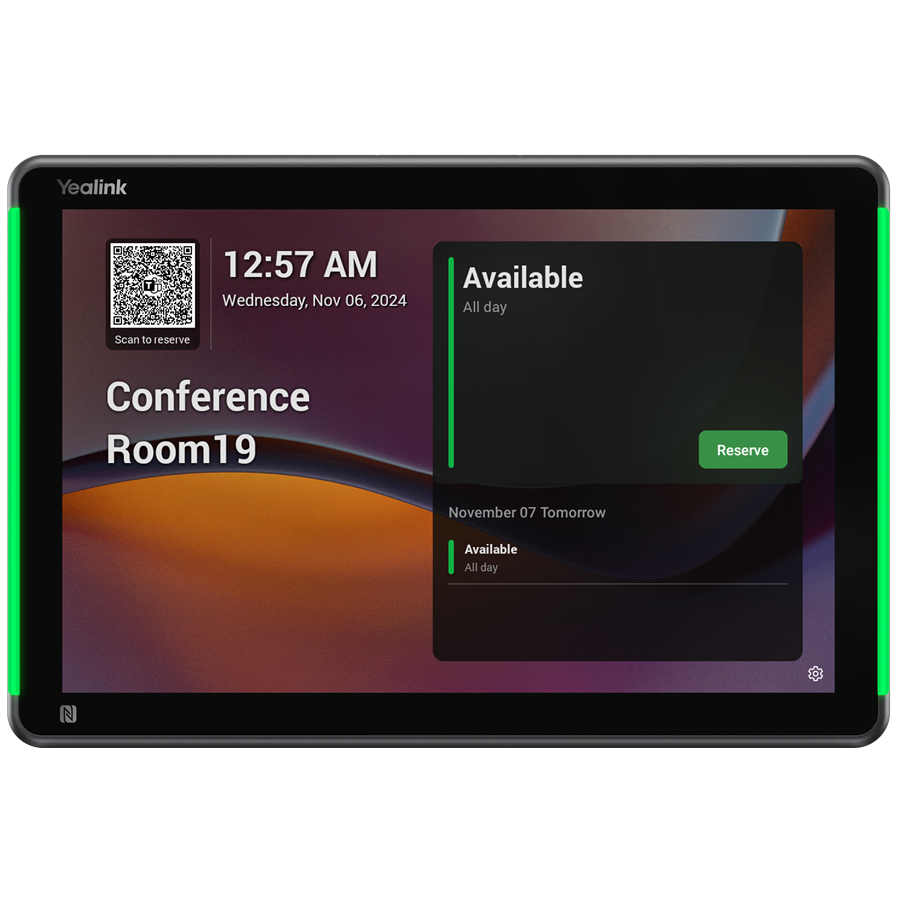

Yealink RoomPanel Plus E2 10.1 Inch Multifunctional Meeting Room Schedule Panel

Yealink RoomPanel Plus E2 is a 10.1-inch multifunctional meeting room schedule panel that runs Android 13 and comes with full RGB programmable LED background illumination for immediately visible communication of room status. It includes multi-point touch capability, built-in NFC/RFID reader, enhanced microphone arrays and speakers to meet the diverse needs of the current office environment. Yealink RoomPanel Plus E2 can act as a stand-alone gateway, connect to meeting room sensors and automatically update meeting room schedules, providing various meeting room management functions. Also equipped with Powerover- Ethernet and various mounting brackets, Yealink RoomPanel Plus E2 could be easily mounted on any surface.

• 10.1-Inch Multi-Point Interactive Panel: Multi-Point touch capability screen to easily book rooms or check-in/out at RoomPanel Plus E2.
• High Visibility LED Bars out Room Status: Full RGB LED bars for immediate all-around visible communication of room status.
• Ambient Light & Proximity Sensor Embedded: Environment self-adaptation. Automatically adjust the screen brightness and automatically wake up the screen.
• Various Mounting Methods: Supporting accessories such as no inclination or 20-degree inclination, mullion hangers, 3M glue, etc.
• PoE or DC Power: Minimalist and flexible installation, keep workspace tidy and modern.
• Remote Device Management: Easily monitor, manage, and diagnose by Yealink Management Cloud Server.
• WiFi&BLE5.0: Support using the wireless protocol to connect the front-end network and RoomSensor.
• Extensive APP compatibility: Support the integration of third-party APP applications.

Basic:

• Operating System: Android 13
• Power Supply: Power over Ethernet (IEEE 802.3af/at), DC 12V /1.25A

Display:

• Size(in): 10.1″ LCD Panel
• Resolution: 1280x800
• Touch Screen: Multi points capacitive
• Contrast: 1000:1
• Viewing Angle: ±90°
• Anti-Fingerprints: Anti-fingerprint Coating

Sensors:

• Ambient Light Sensor
• TOF Proximity Sensor

Camera:

• Pixel: 2 million pixels

Connectivity:

• 1 x Fast ethernet port(10/100Mbps)
• Wired network: IEEE 802.1x: EAP-MD5, EAP-TLS, EAP-PEAP/MSCHAPv2, EAP-TTLS/EAP-MSCHAPv2
• Wi-Fi: 802.11a/b/g/n/ac
• Bluetooth: 5.0
• RFID/NFC: 13.56MHz
• USB: 1 x USB-A port
• Button: 1 x Reset pinhole

Audio:

• Microphone: 2 x Microphone
• Speaker: 2 x Speaker

Mounting:

• Angle: No inclination or 20 degree inclination
• Method: Wall, glass or side mount
• 0° Mount Bracket
• 20° Mount Bracket
• Mullion Mount Bracket

Environmental:

• Operating Temperature: 0~40℃
• Operating Humidity: 10~95%，non-condensing

Dimensions:

• Display size: 247.6 x 166.36 mm
• Weight: 0.627 kg

• Supported Platforms: Teams, Gingco, Gobright, Flowscape, Space Connect
