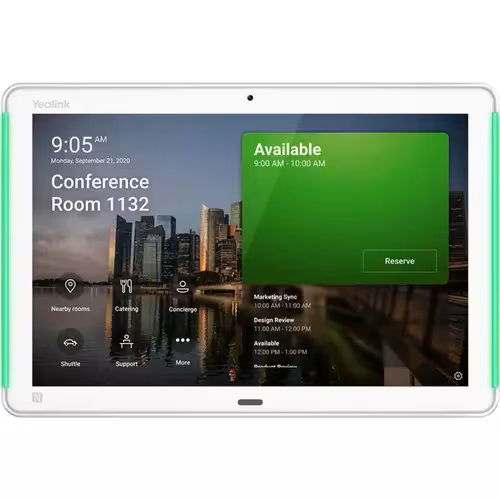

Yealink RoomPanel Plus 10.1 Inch Multifunctional Meeting Room Scheduling Panel

Yealink RoomPanel Plus is a 10.1-inch multifunctional meeting room schedule panel that runs Android 11 and comes with full RGB programmable LED background illumination for immediately visible communication of room status. It includes multi-point touch capability, face recognition camera, built-in NFC/RFID reader, enhanced microphone arrays, and speakers to meet the diverse needs of the current office environment. Yealink RoomPanel Plus can act as a stand-alone gateway, connect to meeting room sensors, and automatically update meeting room schedules, providing various meeting room management functions. Also equipped with Power over Ethernet and various mounting brackets, Yealink RoomPanel Plus could be easily mounted on any surface.

10.1-Inch Multi-Point Interactive Panel:
Multi-Point touch capability screen to easily book rooms or check-in/out at the RoomPanel Plus.

Face Recognition Camera:
Enhanced face recognition security and check-in function.

High Visibility LED Bars Out Room Status:
Full RGB LED bars for immediate all-around visible communication of room status.

Ambient Light & Proximity Sensor Embedded:
Environment self-adaptation. Automatically adjust the screen brightness and automatically wake up the screen.

PoE or DC Power:
Minimalist and flexible installation keeps the workspace tidy and modern.

Basic:

• Operating System: Android 11
• Power Supply: Power over Ethernet (IEEE 802.3af/at); DC 12V /1.25A

Display:

• Size(in): 10.1″ LCD Panel
• Resolution: 1280x800
• Touch Screen: 10 points capacitive multi-touch
• Contrast: 1000: 1
• Viewing Angle: ±90°
• Anti-Fingerprints: Anti-fingerprint Coating

Sensors:

• Ambient Light Sensor
• TOF Proximity Sensor

Camera:

• Pixel: 2 million pixels

Connectivity:

• 1 x Fast ethernet port (10/100Mbps)
• Wi-Fi: 802.11a/b/g/n/ac
• Bluetooth: 5.2
• RFID/NFC: 13.56MHz
• USB: 1 x USB-A port
• Button: 1 x Reset pinhole

Audio:

• Microphone: 2 x Microphone
• Speaker: 2 x Speaker

Mounting:

• Angle: No inclination or 20-degree inclination
• Method: Wall, glass, or side mount: 0° Mount Bracket; 20° Mount Bracket; Mullion Mount Bracket

Environmental:

• Operating Temperature: 0-40℃
• Operating Humidity: 10-95%, non-condensing

Dimensions:

• Weight: 627g
• Size: 247.6×166.4×26.5mm
