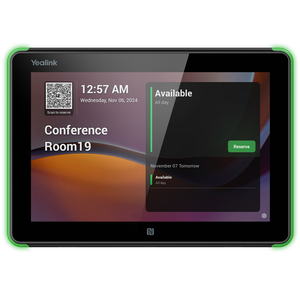

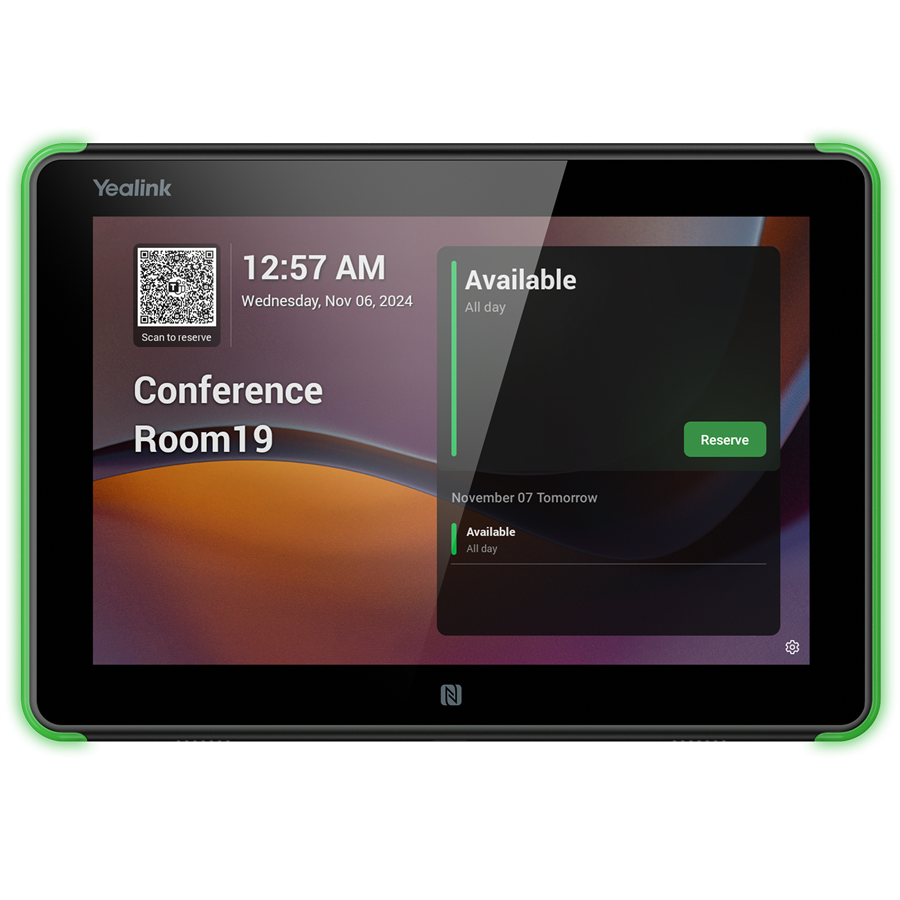

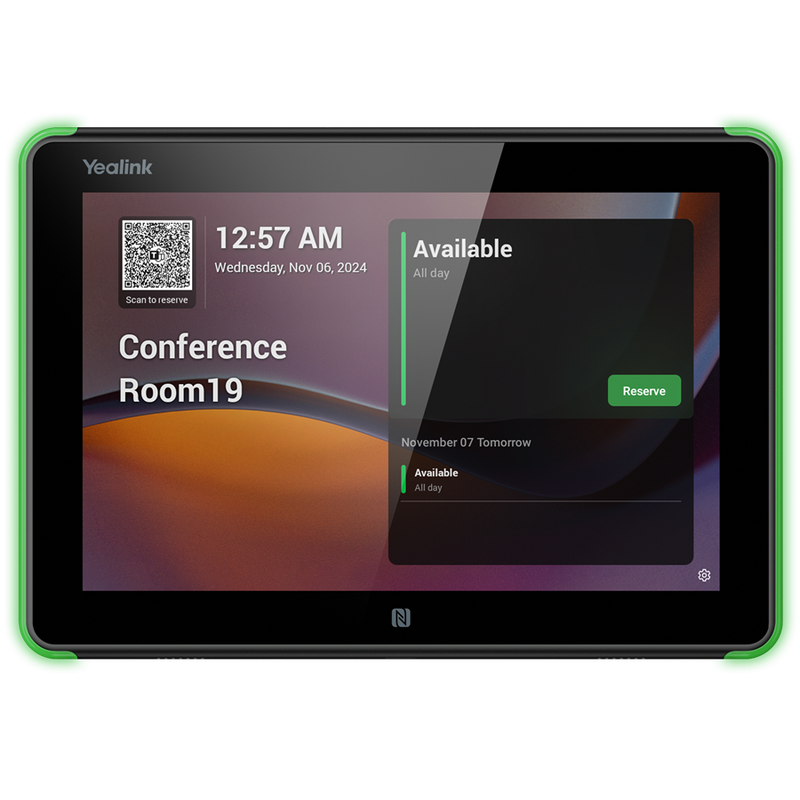

Yealink RoomPanel E2 8 Inch All In One Meeting Room Schedule Panel

Yealink RoomPanel E2 is an 8-inch all-in-one meeting room schedule panel that runs Android 13 and comes with full RGB programmable LED background illumination for immediately visible communication of room status. It includes multi-point touch capability, 802.11ac Wi-Fi, Bluetooth 5.0, a built-in NFC/RFID reader, enhanced microphone arrays and speakers to meet all modern workspace demands. Also equipped with a Power-over-Ethernet and various mounting brackets, Yealink RoomPanel E2 could be easily mounted on any surface.

• 8-Inch Multi-Point Interactive Panel: Multi-Point touch capability screen to easily book rooms or check in/out on the RoomPanel E2.
• Anti-Fingerprint Screen: Keep the screen clean and free from fingerprints and oil stains.
• High Visibility LED Bars out Room Status: Full RGB LED bars for immediate all-around visible communication of room status.
• Ambient Light & Proximity Sensor Embedded: Embedded Environment self-adaptation. Automatically adjust the screen brightness and automatically wake up the screen.
• Any Walls and Tilt Optional: Provide brackets and 3M velcro. Compatible with electrical box, glass and wood, etc., with optional parallel or tilt angle.
• Orientation Optional: Easy to mount with portrait or landscape.
• PoE or DC Power: Minimalist and flexible installation, keep workspace tidy and modern.
• Remote Device Management: Easily monitor, manage, and diagnose by Yealink Management Cloud Server.
• 802.11ac Wi-Fi: Support wireless network deployment and anti-jamming Wi-Fi.
• Bluetooth 5.0: Directly connect to room sensors without extra gateways and support proximity features.
• RFID & NFC Embedded: Enhance ID authorization security and track meeting attendees.
• Actions with Occupancy Sensor: Actions with the room occupancy sensor, such as automatic release, automatic check-in, etc.

Basic:

• Operating System: Android 13

Display:

• Size: 8" LCD Panel (16:10)
• Resolution: 1280x800
• Contrast: 1000:1
• Viewing Angle(H/V): ±80° /±80°
• Multi points capacitive
• Anti-fingerprint Coating
• Proximity Sensor: Yes
• Ambient Light Sensor: Yes

Connectivity:

• Ethernet: 1 x Fast Ethernet port (10/100 Mbps)
• Wired network: IEEE 802.1x: EAP-MD5, EAP-TLS, EAP-PEAP/MSCHAPv2, EAP-TTLS/EAP-MSCHAPv2
• Wi-Fi: 802.11a/b/g/n/ac
• Bluetooth: 5.0
• RFID/NFC: 13.56 MHz
• USB Port: 1 x USB-C port
• Button: 1 x Reset pinhole

Audio:

• Microphone: 2 x Array Microphones
• Speaker: 2 x Watt Speakers

Power Supply:

• Power over Ethernet IEEE 802.3af
• 12 V Power Adapter

Mounting Options:

• Surface mount for 2-gang US electrical box
• 20° tilt mount kit for wall or glass
• Flush mount kit for wall or glass
• Mullion Mount kit for glass

Environmental:

• Operating Temperature: 0~40℃
• Operating Humidity: 10~95%，non-condensing

Dimensions:

• Display size: 209 x 146 mm
• Weight: 0.53 kg

• Supported Platforms: Teams, Zoom, RingCentral, Gingco, Gobright, Flowscape, Space Connect, Appspace
