Yealink MVC860 MS Teams Rooms System for Medium and Large Conference Rooms with NO AUDIO

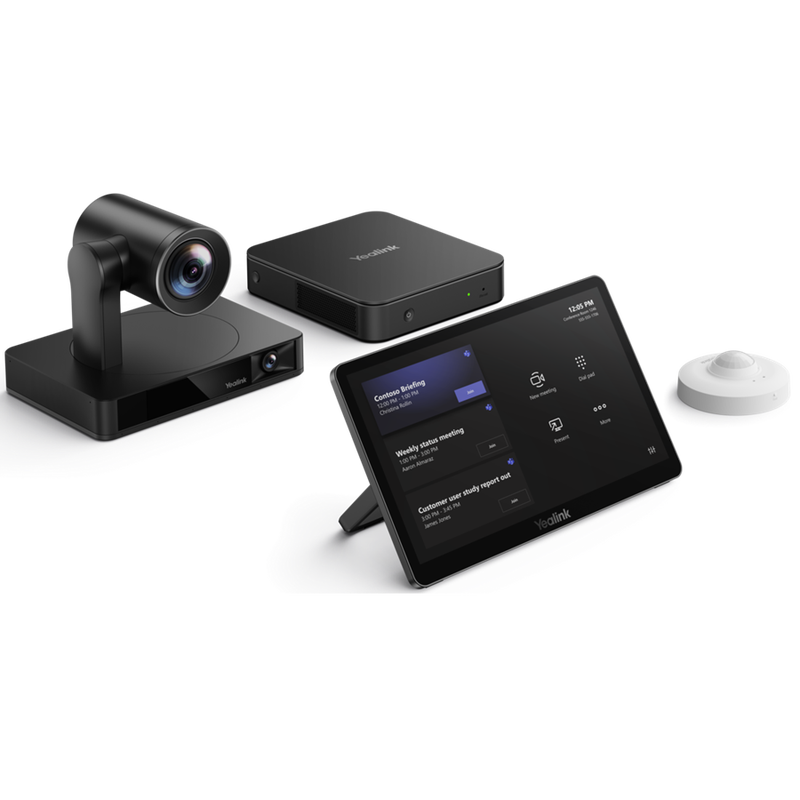

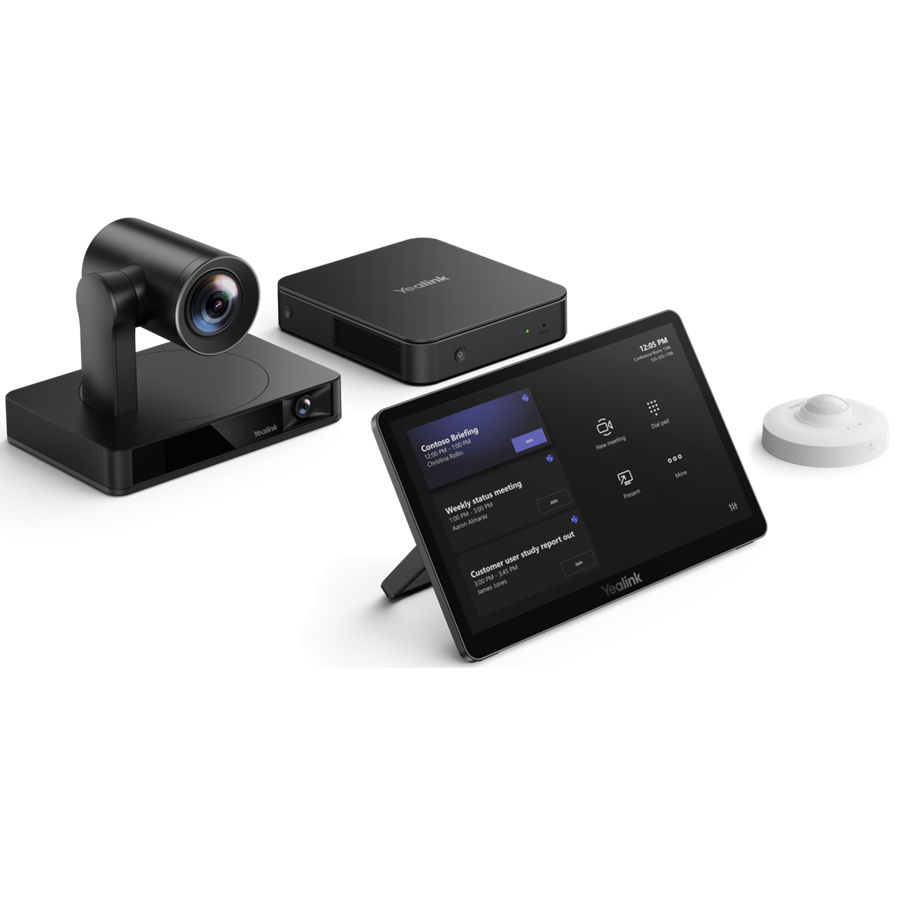

Yealink MVC860 is specially designed for medium and large conference rooms. This set includes new generation high-performance MINI-PC MCore Pro, touch panel MTouch Plus, intelligent 4K PTZ camera UVC86. Yealink third generation MINI-PC MCore Pro combines aesthetics with practicality, has three HDMI ports, and comes with EDID, providing a flexible and reliable deployment solution for conference rooms.

Intelligent Tracking, Free Your Hands:
Yealink UVC86 intelligent PTZ camera supports multiple tracking functions: Auto-framing, Speaker Tracking, and Presenter Tracking. Speaker Tracking of Yealink UVC86 supports region trigger, without the operate, automatic framing speaker; Supports gesture turn ON/OFF so that it can be used in every scenario; Equipped with Yealink camera plug-in controller, the camera can freely switch at any time in up to 9 preset positions, and can also quickly switch preset tracking modes, one step adjustment, one step in place. The UVC86 camera supports 4k video output and has a 12x optical zoom lens to provide clear and lossless images. UVC86 provides you with a face-to-face, intelligent and smooth meeting experience by accurately recreating every moment and detail.

Big and Flexible Conference Control Experience:
Yealink third-generation touch panel MTouch Plus, with an 11.6-inch narrow-frame touch area, is the iconic product of Yealink’s third generation. Yealink third-generation touch panel innovatively supports multiple panels to control conferences at the same time. You can freely choose the deployment position of each panel according to the deployment needs of the conference room and fully control the conference process.

Manage Your Devices Remotely:
This solution supports Yealink Device Management Platform/Cloud Service; you can flawlessly manage, monitor, configure, update and diagnose all Yealink audio and video device peripherals on this platform remotely.

Preload:

• Windows 10 IoT Enterprise X64
• Windows 10 IoT Enterprise License
• Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
• Yeallink RoomConnect

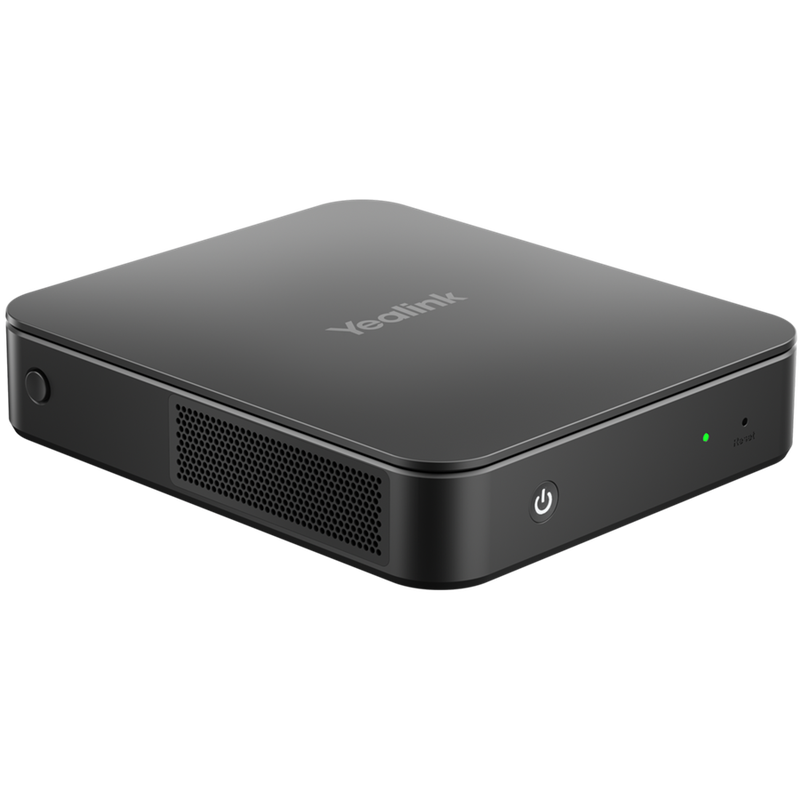

MCore Pro, Gen-3 Mini-PC:

• 11th Gen Intel Core i5
• Memory: 8 GB (2 x 4GB)
• Storage: 128 GB SSD
• 3x HDMI video output with CEC supported
• TPM2.0
• Kernel DMA
• EDID
• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2
• 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2
• 4 x USB 3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot, Integrated cable management

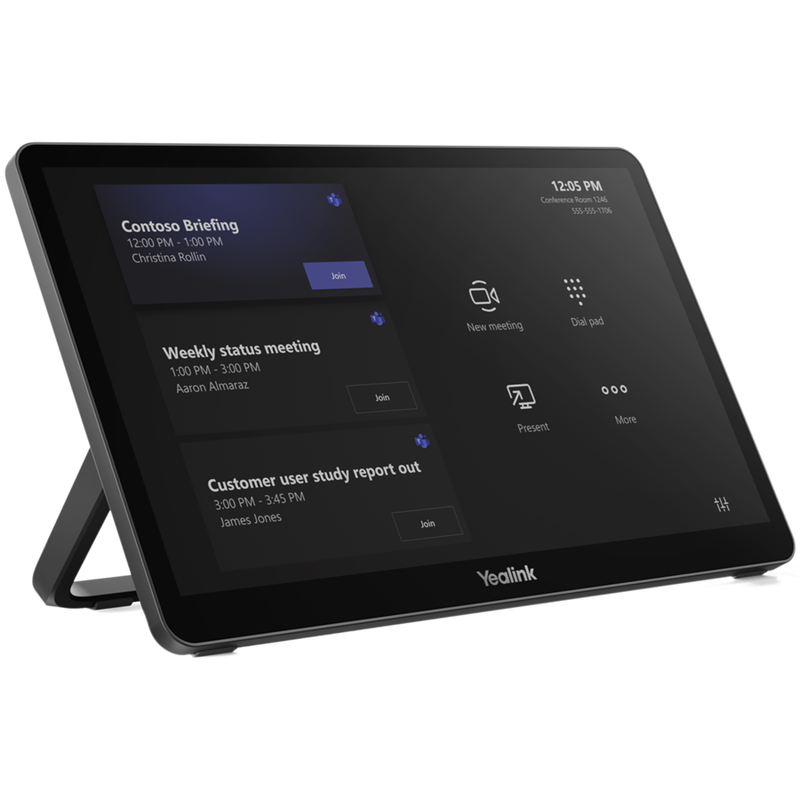

MTouch Plus:

• 11.6-inch narrow bezel IPS display
• 1920 x 1080 video resolution
• Angle between screen and desktop (30° ~ 70°)
• Adjustable angle of support frame (50° ~ 180°)
• Support wired and wireless (with WPP30) content sharing
• Support external PD power supply to power the sharing device
• Support HDMI/USB-C video input
• Support desktop placement, desktop fixed, wall-mounted deployment

RoomSensor:

• Detection angle: 120°
• Adjustable detection angle: ±20°
• Operating temperature: 0-40℃
• Operating humidity: 10-95%
• Power: Battery powered, 4 year life

UVC86 USB PTZ Camera:

• 4K Sensor
• 20.4 × HD zoom (12x optical, 1.7x digital)
• Angle of view: 90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens); 120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
• Auto-framing
• Speaker tracking
• Presenter tracking, support area trigger and gesture control
• Multi-focus
• Picture-in-picture
• Up to 9 preset positions can be set
• Support wireless BYOD
• Horizontal rotation: 200°
• Vertical rotation: 130°
• 1 x HDMI output
• 1 x Yealink microphone port (RJ-45)
• 1 x USB 3.0 Type-B port
• 1 x USB 2.0 Type-A Port
• 1 x Power Port
• 1 x Security Lock
• 1 x Reset Hole

• UVC86
• MCore Pro
• MTouch Plus
• RoomSensor
