Yealink MVC640-C4 MS Teams Room System

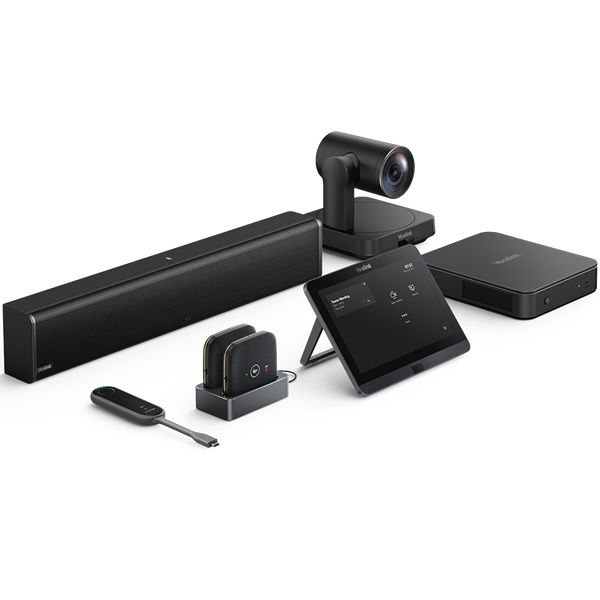

Yealink MVC640 is specially designed for medium conference rooms. MVC640 includes third-generation high-performance MINI-PC MCore Pro, touch panel MTouch E2, and high-performance 4K PTZ camera UVC84. In this portfolio, you can choose different pickup microphones according to the needs of different conference rooms, DECT wireless microphone CPW65 and Wi-Fi wireless microphone VCM36-W. The surprise is that UVC84 in the portfolio has excellent performance. It has a 4K lens that supports 12x optical zoom and 3x digital zoom, an 80° wide Angle and a pan-tilt that allows it to cover every corner of the conference room. The Auto-framing function of UVC84 will free your mind and let you focus on the meeting without thinking about the picture of the camera. With the Yealink camera plug-in controller, the camera can realize the preset position, one-step adjustment, and one-step in place.

Start Teams Meeting with MVC640 Bundle Solution:
Designed for medium meeting rooms, the Yealink MVC640 Microsoft Teams Room system is a bundle video solution with MCore mini-PC,UVC844K camera, MSpeech speakerphone and touch panel, bringing everything you need to interact, connect, and collaborate with internal and external users seamlessly and intelligently.

4K Performance Capture All Movements:
Featured 4K sensor and 12x optical zoom, theUVC84camera achieves a gorgeous video experience perfectly for medium and large rooms. The Auto Framing enables theUVC84to recognize attendees and frame everyone automatically in the most appropriate view in rooms of any size. The auto-privacy protection design secures the safety of your meetings.

Pickup Ideas from Every Seats:
Supporting medium-size video conference rooms, the MSpeech speakerphone built-in three microphone matrix and 4W HD speakers deliver HD clarity and a great voice pickup range. The AI-powered features with voice recognition, voice transcription, and Cortana, bring more possibilities in the future of intelligent Microsoft Teams Rooms.

Multi-mounting Options Simplified Connections:
The MCore mini-PC can be set up according to particular room layout. Mounting on the wall, sticking to the table can be realized. Also, in all Yealink MVC II video conference room systems, the MCore cable management solution integrates data and power supply into one CAT5e cable, simplifying the complicated connections and reducing the deployment time of the whole video conference kits.

One-Click to Share:
Users can enjoy plugging in the YealinkWPP20with one click to share the screen wirelessly viaWPP20within the video conference kits, or connecting the laptop to the meeting through the USB-C or HDMI port easily. In the Yealink MVC II video conference room system, all participants have the flexibility of choosing either wireless or wired ways of content sharing.

Preload:

• Windows 10 IoT Enterprise X64
• Windows 10 IoT Enterprise License
• Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
• Yeallink RoomConnect

MCore Mini-PC:

• 11th Gen Intel Core i5
• Memory: 8GB (2 x 4GB)
• Storage: 128GB SSD
• HDMI video output with CEC supported
• Bluetooth and Wi-Fi
• 1x Yealink VCH port (RJ45), connect to MTouch II
• 4 x USB3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot

MTouch E2 touch panel:

• 8-inch IPS screen
• 1280 x 800 resolution
• 10-point capacitive touch screen
• 3.5mm headset jack
• Angle adjustable bracket (28° ~ 50°)
• 1080P/30FPS FHD for sharing
• Support wired and wireless content sharing
• Built-in Wi-Fi AP for Yealink wireless presentation device
• HDMI/USB-C HD video input

UVC84 USB PTZ Camera:

• 4K Sensor
• 12x optical zoom
• Field of view (diagonal): 80°
• Auto Framing
• Camera presets
• Pan range: 200°
• Tilt range: 130°
• 1 x Line-out (3.5mm)
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

MSpeaker II:

• Frequency response: 106Hz-20 KHZ
• Maximum Loud Pressure level: 88±3dB@8W / 1M
• Sensitivity: 79±3dB@1W/1M
• S/N: ≥70dB
• 3.5mm linear input interface

CPW65:

• 360° omnidirectional pickup
• Signal-to-noise ratio: 65dB SPL@1KHz,A-weighted
• Loudest Pressure level: 110dB@1KHz, THD< 3%
• Equivalent noise: -110dBFS(A)
• Dynamic range: 81dBFS
• Sensitivity: -32db+/-2
• Frequency response: 100Hz-8KHz
• 2-meter radius full duplex range
• 6 m pickup radius
• Use Yealink WDD60 for pairing
• Two-color LED capacitive touch mute button
