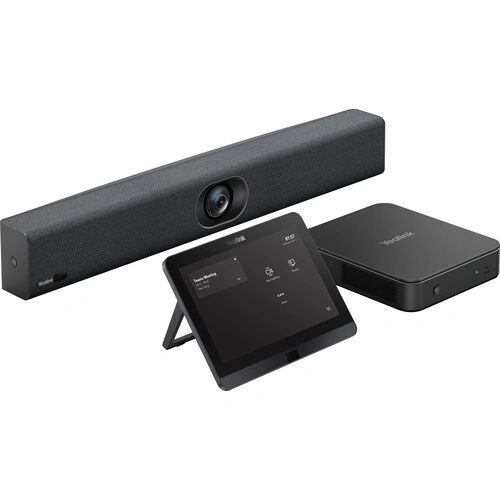

Yealink MVC400-C4 Microsoft Teams Rooms System for Small Rooms

Yealink MVC 400 is a native and easy-to-use video conferencing solution specially designed for Microsoft Teams rooms. MVC 400 features the native Microsoft Teams-tailored user interface that is easy to be operated with close-to-zero learning curve, and you just walk into the meeting room and start your scheduled Teams or Skype for Business meeting with one-touch join. Together with 8 MEMS microphone arrays and 133° field of view, its AI technologies, including face detection, sound localization, and speaker tracking and so on, provide users with high-quality call experience in full-deplex mode. Only including a high-performance MCore, a touch panel MTouch II, and a USB video bar UVC40, MVC400 is the optimum choice for small meeting rooms with easy deployment.

Native Microsoft Teams-Tailored User Interface, Smooth Conference Experience:
Native Microsoft Teams-tailored user interface offers a one-touch meeting join. Designed with the idea of multi-function all-in-one, the MTouch II touch panel allows you easily perform call control, camera control, content sharing and other functions. At the same time, MTouch II has a built-in Human Motion Sensor that the conference system can be automatically waken up and you can immediately start the conference.

Smart Video Conferencing with AI Technology:
Featuring AI technology, including Auto Framing and Speaker Tracking, UVC40 not only supports framing the groups automatically according to the number and the position of the participants, but also automatically zoom in the speaker without adjusting the camera, making the participants more focus on the conference.

Precise Sound Localization, Full-Duplex Experience:
8 MEMS microphone arrays make UVC40 have stronger ability of noise proof and dereverberation. The new upgraded beamforming algorithm, together with technology of processing on acoustic echo cancellation and the dereverberation, brings high quality full-duplex call and realizes more precise voice pickup.

Secure Conference with Electric Lens Cap:
The camera electric lens cap automatically opens when the video conference starts and remains closed when not having video conferences, securing your conference privacy.

Content Sharing in Real Time:
The unique wireless content sharing solution provides participants with maximum flexibility, that a one-click content sharing can be simply realized by plugging into the WPP20 only. With a high resolution of 1080P / 30 frames, it provides users with a better content sharing experience. Besides, the wired content sharing is also available by connecting to the USB-C port or HDMI port.

Simple to Deploy, Easy to Use:
With the VCH port, MCore is specially designed for the video meeting rooms that the deployment can be easily extended. At the same time, its all-in-one design with the feature of cable management ensure the stability of the wire connection, and the most appropriate deployment can be achieved according to the layout of the meeting room. One CAT5e is totally enough to connect the TV area and the conference table area and to complete the data transmission and power supply, no additional power supply or extension cable is needed, which not only simplifying the deployment but also effectively reducing deployment costs.

Remote Device Management:
This solution supports Yealink Device Management Platform/Cloud Service, you can flawlessly manage, monitor, configure, update and diagnose all Yealink audio and video devices peripherals on this platform remotely.

MCore Pro Mini-PC:

• CPU: Core 11th generation i5 processor
• Memory: 8GB (2 x 4GB)
• Storage: 128GB SSD
• Interfaces: 3x HDMI out, 1x MTouch Port (RJ-45), 4x USB3.0 Type-A Port, 1x 10/100/1000 Gigabit Ethernet Port, 1x Power Supply Port, 1x Security Slot
• WiFi : IEEE 802.11.a/b/g/n/ac/ax
• Bluetooth: BT 5.2

MTouch E2 Touch Panel:

• 8-inch IPS screen
• 1280 x 800 resolution
• 10-point capacitive touch screen
• 3.5mm headset jack
• Human Motion Sensor
• Angle adjustable bracket (28° ~ 50°)
• 1080P/30FPS FHD for sharing
• Support wired and wireless content sharing
• Built-in Wi-Fi AP for Yealink wireless presentation device
• HDMI/USB-C video input

UVC40 USB Video Bar:

• 20 MP Camera
• 8x e-PTZ camera
• Field of view (diagonal): 133°
• Auto Framing
• Speaker Tracking
• AI Face Enhancement
• Camera presets
• Built-in 8 MEMS microphone array
• Yealink Noise Proof Technology
• Beamforming directed voice pickup technology
• Full-deplex technology
• Echo cancellation technology

UVC40 USB Video Bar Connections:

• 1 x Line-in (3.5mm)
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 3.0 Type-B
• 1 x USB 2.0 Type-A
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot
• 1 x 2.5m USB 2.0 cable

Physical Characteristics:

• MTouch II Dimensions: 202 x 151 x 100mm
• MTouch II Weight: 1kg
• MCore Dimensions: 168 x 197 x 39mm
• MCore Weight: 1.35kg

• MCore Pro Mini-PC
• MTouch E2 touch panel
• UVC40 USB video bar
