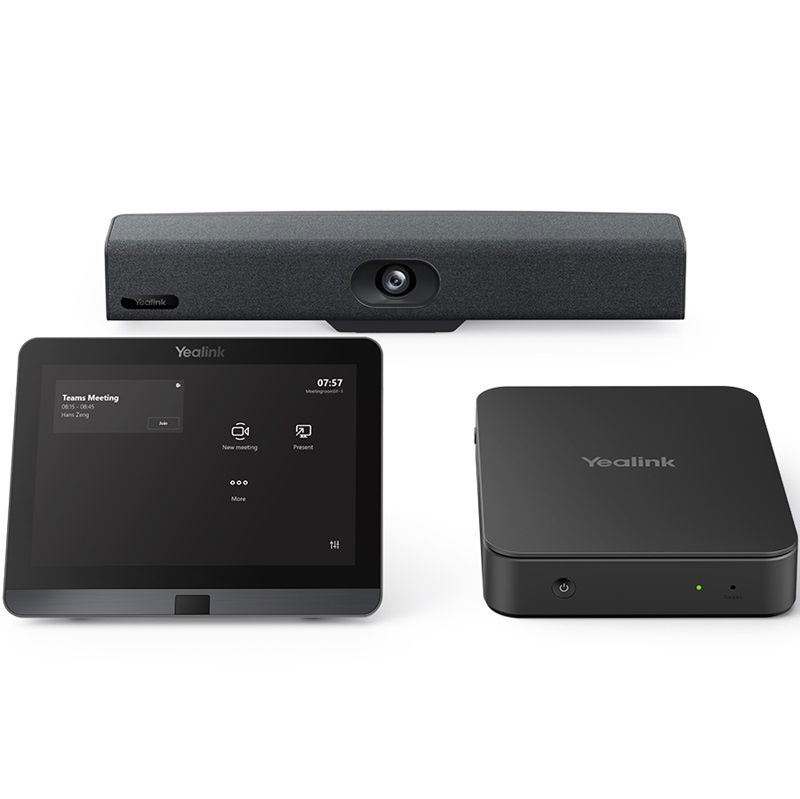

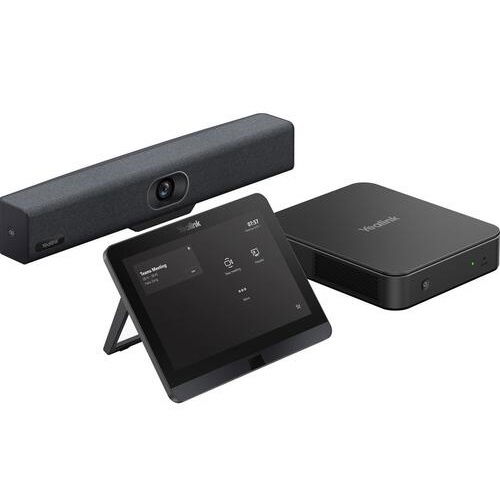

Yealink MVC340 Microsoft Teams Video Conferencing System for Huddle Rooms

Yealink MVC340 is specially designed for huddle and entry-level small conference rooms. The new generation MVC340 portfolio is the optimum choice for small meeting rooms with easy deployment, which includes new generation high-performance MINI-PC MCore Pro, new generation touch panel MTouch E2, and intelligent USB Allin-one machine UVC34. Yealink new generation MINI-PC MCore Pro combines aesthetics with practicality, has three HDMI ports, and comes with EDID, providing a flexible and reliable deployment solution for conference rooms. UVC34 together with 8 MEMS microphone arrays and 120° ultra-wide diagonal viewing angle. UVC34 supports Al technologies such as face recognition, sound localization. UVC34 can provide users with a high-quality call experience in full-duplex mode.

Native Microsoft Teams-tailored user interface, smooth conference experience:
MTouch E2 has a built-in human motion sensor, and when participants enter the conference room, the conference system will be automatically woken up. Through the native Microsoft Teams application interface, one-click conference, call control, camera control, content sharing and other functions can be easily completed through MTouch E2 during the meeting.

Smart Video Conferencing with Al Technology:
Yealink UVC34 All-in-one conference machine is equipped with a 120° diagonal viewing angle 8MP lens and supports multiple AI technologies such as face detection, sound location. The face detection function can automatically adjust the size of the screen according to the number of participants and changes in location, presenting the best viewfinder effect.

Precise Sound Localization, Full-duplex Experience:
With Yealink Noise Proof Technology and dereverberation, the UVC34 with built-in 8+1 MEMS microphone arrays and speaker allow users to enjoy a full-duplex voice experience seamlessly without interruption and talk freely in a comfortable way.

Secure Conference with Electric Lens Cap:
The camera’s electric lens cap automatically opens when the video conference starts and remains closed when not having video conferences, securing your conference privacy.

Content sharing in real time:
The unique wireless content sharing solution provides participants maximum flexibility and a one-click content sharing can be simply realized by plugging into the WPP30. With a high resolution of 1080P/30 frames, it provides users with a better content sharing experience. Besides, the wired content sharing is also available by connecting to the USB-C or HDMI port.

MCore Pro, Gen-3 Mini PC:

• 11th Gen Intel Core i5
• Memory: 8 GB (2 x 4GB)
• Storage: 128 GB SSD
• 3x HDMI video output with CEC supported
• TPM2.0
• Kernel DMA
• EDID
• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2
• 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
• 4 x USB 3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot, Integrated cable management
• Dimension (WxDxH): 168 x 197 x 39 mm
• Weight: 1.35 kg

MTouch E2 touch panel:

• 8-inch IPS screen
• 1280 x 800 resolution
• 10-point capacitive touchscreen
• 3.5 mm headset jack
• Angle adjustable bracket (28° - 50°)
• 1080P/30FPS FHD for sharing
• Support wired and wireless content sharing
• Built-in Wi-Fi AP for Yealink wireless presentation device
• HDMI/USB-C HD video input
• Dimension (WxDxH): 202 x 151 x 100 mm
• Weight: 1 kg

UVC34 All-in-One Video Bar:

• 8 MP Camera
• 5x e-PTZ Camera
• DFOV: 120°
• HFOV: 110°
• VFOV: 78°
• Auto Framing
• AI Face Enhancement
• 9 Camera Presets
• Built-in 8+1 MEMS microphone array
• 5m voice pickup range
• Yealink Noise Proof Technology
• Beamforming-directed voice pickup technology
• Full-duplex technology
• Echo cancellation technology
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x USB 2.0 Type-A
• 1 x Reset slot
• 1 x Power port
• 1 x Kensington port
• Dimension (WxDxH): 380 x 55 x 55 mm
• Weight: 1.28 kg

• MCore Pro
• MTouch E2
• UVC34
