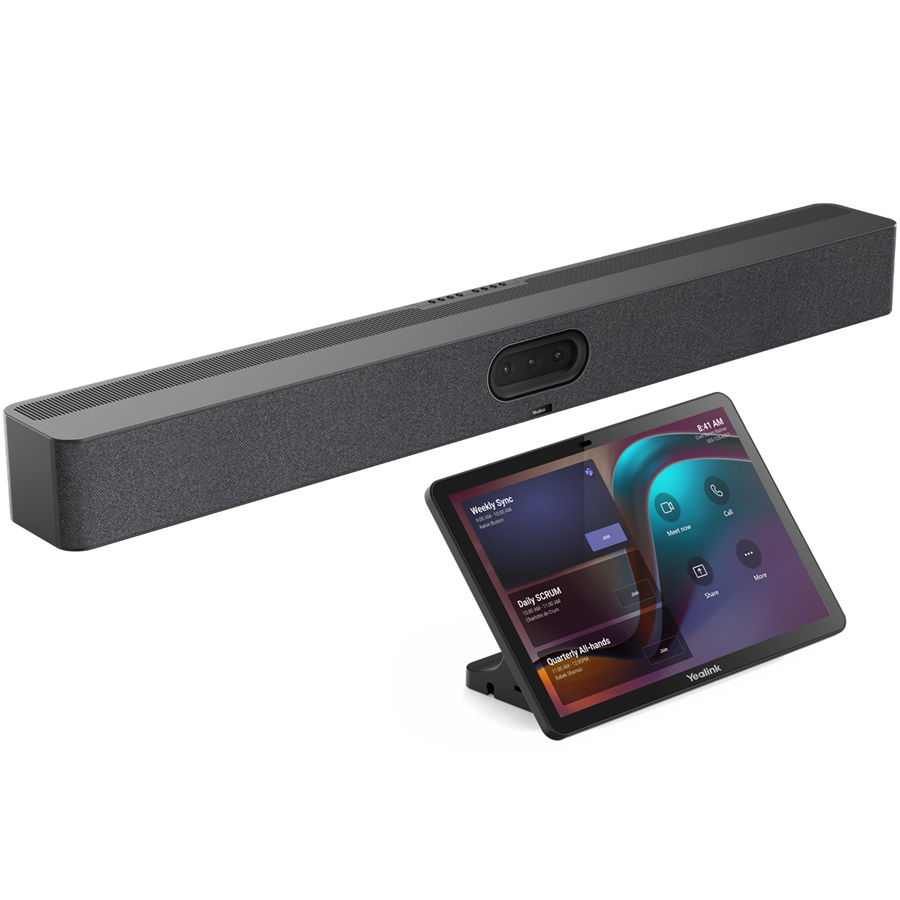

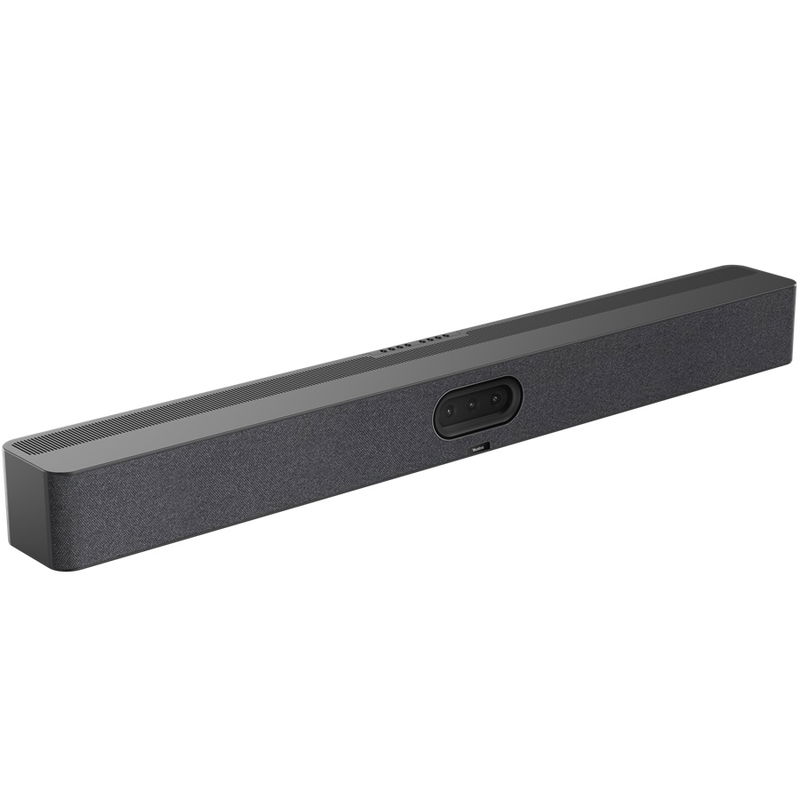

Yealink MeetingBar A50 All In One Video Collaboration Bar with CTP25 Touch Panel

Yealink MeetingBar A50 is an all-in-one video collaboration bar for premium medium-to-large rooms. This product delivers cutting-edge audio and video communication capabilities, powered by advanced AI technology, ensuring crystal-clear sound and ultra-HD visuals. With intelligent full-duplex, IntelliFocus, and video fence, it redefines the video conferencing experience, bringing unparalleled clarity and efficiency to every meeting. Yealink MeetingBar A50 is compatible with Microsoft's MDEP, which enhances security and deployment experiences. This integration provides users with a more secure environment and streamlined deployment processes, contributing to a smoother and safer user experience.

Ultra HD picture quality and artificial AI features:
The MeetingBar A50 has a built-in triple-camera system, each with 50MP resolution—one for wide-angle and two for telephoto, ensuring high-resolution imaging across di erent focal lengths. The professional-grade lens delivers low grain, natural colors, and HD image quality. It also a built-in automatic physical privacy shu er that blocks the camera when not in use, ensuring privacy protection for users. The intelligent AI features include IntelliFocus, Multi-stream IntelliFrame with Copilot (Only for MTR-W), Video Fence, etc. It can automatically detect speakers in the meeting room, frame them, and display them on the screen through multi-stream output, providing a more intuitive and interactive remote meeting experience.

High-quality audio pickup experience:
Yealink MeetingBar A50 has an 10-meter voice pickup range and built-in stereo speakers, 16x MEMS microphone array. The intelligent noise reduction technology provides a good audio experience. In addition, it can support 3 additional expansion microphones, that can cover a large conference room.

Compatible with Microsoft's MDEP:
Yealink MeetingBar A50 is compatible with Microsoft's MDEP, which enhances security and deployment experiences. This integration provides users with a more secure environment and streamlined deployment processes, contributing to a smoother and safer user experience.

Multi-Platform Flexibility:
Yealink MeetingBar A50 supports native Teams, Zoom, etc. In addition, it also supports wired General Mode. After entering BYOD mode, you can take MeetingBar A50 as the peripherals for meetings held by third-party apps.

Simple deployment:
Yealink MeetingBar A50 features a direct connection to CTP25, enabling a simplified login process. Only need to log in once. This streamlined login experience saves time and improves convenience for users.

Remote Device Management:
Yealink MeetingBar A50 is networked and reported to the device management platform, then can be remotely managed, configured, and upgraded.

Operating System:

• Android 13

A50-031, Camera:

• Maximum pixels: 3*50MP pixels
• Number of preset positions: 9
• Electronic gimbal
• 1x Wide HFOV 98°, VFOV 81° ; 2x Tele HFOV 41.6° VFOV 31.8°
• 8x digital zoom
• Maximum resolution: 4K
• Privacy cover: Electric lens cap
• Lens calibration
• Intelligence Features: IntelliFocus, Auto Framing, Speaker Tracking, People counting, Picture in Picture, Smart Gallery (Zoom only)
• Number of cameras: 3

Speaker:

• Built-in 4 x 5W speakers

Microphone:

• Built-in 16 MEMS microphone array
• 10-meter pickup distance

Installation:

• Wall mount
• Use TV Mount
• Place on the desktop

Ports:

• 1x USB3.0 Type-A port
• 1x USB3.0 Type-B port
• 1x USB2.0 Type-C port(for dongle pairing)
• 1x Ethernet port
• 2x Yealink VCH port (RJ-45)
• 1x 3.5mm Line-in & Line-out port
• 1x Power port
• 1x Security lock slot
• 1x Reset slot
• 2x HDMI-out

Environmental Factor:

• Operating humidity: 10 - 95%
• Operating temperature: 0 - 40°C

Dimensions (W × D × H):

• MeetingBar A50: 910 × 88 × 102 mm
• CTP25: 242.95 × 27.50 × 161.95 mm
• CTP25: Weight: 0.683 kg

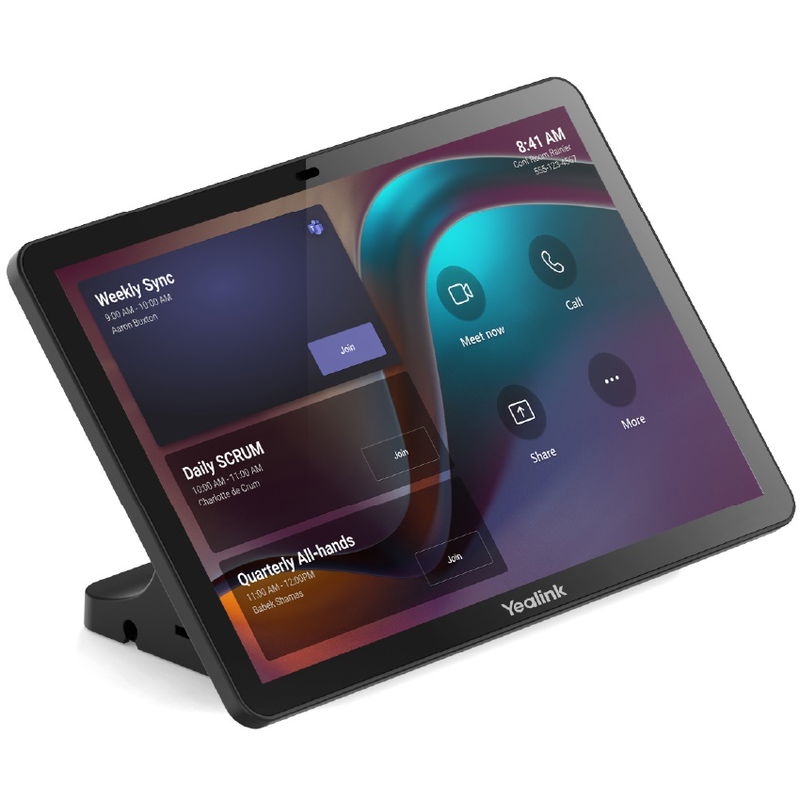

CTP25, Display:

• Screen: 10.1 inch
• Display Type: IPS
• Resolution: 1280 x 800
• Contrast ratio: 1000:1
• Brightness: 350 cd/㎡ (typical)
• Viewing angle (horizontal/vertical): 178°(H)/178°(V)
• Touchpoints: Multi-points capacitive touch support
• Anti-glare

Audio:

• Built-in Ultrasound Unit

Wireless:

• Wi-Fi 6 802.11a/b/g/n/ac/ax

Network:

• VLAN, 802.1P/Q, and Diffserv
• 802.1X, and LLDP-MED
• HTTPS
• Bluetooth 5.0
• Anti-fingerprint

Physical Interface:

• 1 x USB-A port
• 2 x USB-C port
• 1 x RJ45 port (PoE 802.3af compaint)
• 1 x Reset hole
• Motion Sensor

Power:

• Power Consumption: Standby: 5 W, - Average: 7.3 W, - Peak: 15.2 W
• Power Adapter: 65W PD
• PoE: IEEE 802.3af and above

• A50-031 All-in-one Collaboration Bar
• CTP25 Touch Console
