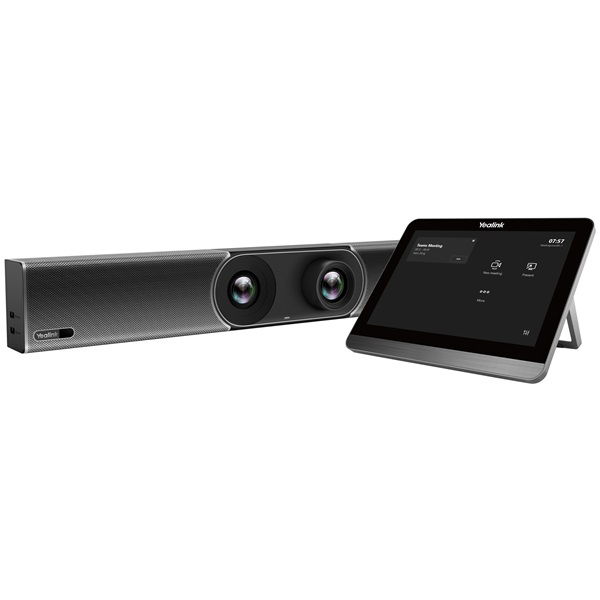

Yealink MeetingBar A30 All In One Video Collaboration Bar with CTP18 Touch Panel

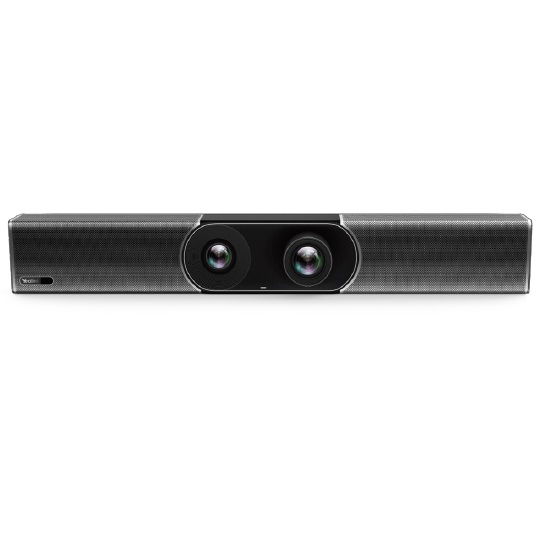

Yealink MeetingBar A30 Teams Edition, an all-in-one video collaboration bar for Medium rooms. A30 features an optical camera with 10x hybrid zoom and an 8-megapixel digital camera with a 120° field of view, delivering outstanding video quality. Together with the electric privacy shutter, its AI technologies, including Auto Framing and Speaker Tracking and so on allow users to experience a smarter and safer video conference.

Smart Video Collaboration:
Based on Android 10.0 OS, A30 can be operated by just one touch or by the remote control. Also, you can experience a more communicative and collaborative meeting with the content sharing and whiteboard of A30.

See Everyone Clearly:
A30 has strong image processing, encoding and decoding capabilities. Besides, A30 features an optical camera with 10x hybrid zoom and an 8-megapixel digital camera with a 120° field of view, delivering outstanding video quality. With a wide 120° field of view, everyone in the conference can be seen without adjusting the camera. Moreover, the image brightness can be automatically optimized even in a dim or backlight environment, ensuring the participant faces can be seen clearly.

Two Cameras Design with AI Technology:
The A30 camera supports 4K video output and is equipped with an 8x optical zoom lens, providing you with a face-to-face, intelligent and smooth video experience by accurately reproducing every moment and detail. Featuring multiple AI technologies such as Auto Framing, Speaker Tracking, and Picture-in-Picture, users don't need to adjust the camera manually and can focus more on the conference.

Precise Sound Localization, Full-Duplex Experience:
8 MEMS microphone arrays make A30 have the strong ability of Yealink AI-based noise proof technology and dereverberation. The Yealink beamforming algorithm, together with the technology of acoustic echo cancellation and dereverberation, brings high-quality full-duplex calls and realizes more precise voice pickup.

All-in-One Design for Fast Start:
Integrating computing units, cameras, microphones, speakers, Bluetooth, and Wi-Fi, A30 takes up less space and minimizes cable clutter. Plugging in power and HDMI cable gets a video conference ready. In addition, the Yealink Device Management Platform ensures easy management for you.

MeetingBar A30 Specifications:
Dual Camera System:

• Wide Camera: 8 MP Camera, Field of view: 120°, 4 x e-PTZ Camera, 120° DFOV, 112° HFOV, 79° VFOV
• Telephoto Camera: 8 MP Camera, Field of view: 90°, 10x Hybrid Zoom (3.5x optical, 3x digital), Horizontal Rotation Angle: +25°/-25°, Vertically Rotation Angle: +16°/-16°, 90° DFOV, 81° HFOV, 50° VFOV
• Electric Privacy Shutter
• Intelligence Features: Auto Framing (Frame and capture everyone in detail), Speaker Tracking (Switch automatically between active speakers), Picture in Picture (View speaker and group people simultaneously), Smart Gallery (Zoom only, display multiple video feeds from a single conference room)
• 9x Camera presets

Audio:

• Built-in 8 MEMS microphone array with a voice pickup range of 6 meters
• Support external mic
• Speaker volume: 89db SPL@1W, 98db SPL@8W both +/-2db at 0.5m
• Sensitivity: 89db SPL@1W, at 0.5m
• Yealink Noise Proof Technology
• Beamforming directed voice pickup technology
• Full-duplex
• AGC (Automatic Gain Control)
• Echo cancellation
• Built-in microphone frequency response: 100Hz to 8kHz
• Speaker frequency response: 100Hz to 8kHz

Operating System:

• Android 10.0

Meeting Features:

• Calendar
• One-click join
• Meeting collaboration: Content sharing, Whiteboard
• Meeting control: Add participates, Hold/Resume, Camera On/Off, Mute/Unmute, Volume Up/Down, Hang up

Video Standard and Network Suitability:

• Video codecs: H.264 High profile, H.264 SVC, H.264

Network and Security Features:

• Built-in dual-band Wi-Fi (2.4 GHz/5 GHz)
• Built-in Bluetooth 4.2
• IPv4 and IPv6, DHCP/static IP
• HTTP/HTTPS web server
• TLS 1.2/1.3, AES 256-bit encryption
• QoS: 802.1p/q, Diff-serv
• VLAN, LLDP
• IEEE802.1X: EAP-MD5/EAP-TLS, PEAP-MSCHAPv2, EAP-TTLS/EAP-MSCHAPv2
• Network diagnosis: Ping, Trace route
• Time and date synchronization using SNTP
• Built-in certificate

Ports:

• 2 x HDMI output (CEC supported)
• HDMI input (through the VCH51 Sharing Kit)
• Motion sensor (Teams supported)
• 1 x Line-in (3.5 mm)
• 1 x Line-out (3.5 mm)
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x 10 M/100 M/1000 M Ethernet port
• 1 x Yealink extension port (RJ-45)
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

Other Physical Features:

• External Yealink Power Adapter: AC 100-240 V Input and DC 48 V/0.7 A Output
• USB Output: 5 V image-20230322112748641 0.5 A
• Power consumption (PSU): Standby Power Consumption: 14.9 W; Average Power Consumption: 12.5 W; Peak Power Consumption: 18 W
• Power Supply: Input: 100-240V ~ 50/60Hz; Output: 48V 0.7A
• Dimension (W.D.H): 700 mm x 98 mm x 121 mm
• Operating humidity: 10 - 90%
• Operating temperature: 0 - 40°C
• Storage temperature: -30 to +70°C
• Weight: N.W/CTN: 7.05 kg; G.W/CTN: 8.13 kg

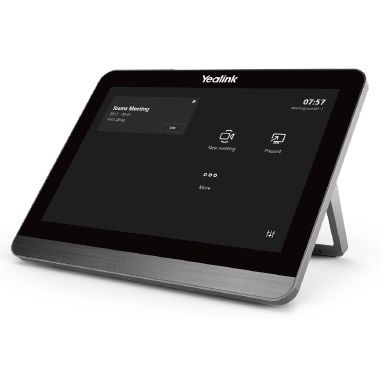

CTP18 Touch Panel Specifications:
System Compatibility:

• Based on Android 10.0

Display:

• Screen: 8-inch IPS FHD capacitive touch screen
• Resolution: 1280*800 (16:10)
• Touch: 10 points multi-touch

Network and Security Features:

• Built-in dual-band Wi-Fi (2.4GHz/5GHz)
• Built-in Bluetooth
• Built-in Ultrasonic
• IPv4 and IPv6, DHCP/static IP
• HTTP/HTTPS web server
• SRTP/TLS, AES 256-bit encryption
• QoS: 802.1p/q, Diff-serv
• VLAN, LLDP
• IEEE802.1X: EAP-MD5/EAP-TLS, PEAP-MSCHAPv2, EAP-TTLS/EAP-MSCHAPv2
• Network diagnosis: Ping, Trace route
• Time and date synchronization using SNTP
• Built-in certificate

CTP18 Physical Interface:

• USB: 1 x USB-C for device debugging
• RJ45: 1 x RJ45 Ethernet for power and data connection
• Reset slot: 1 x Reset slot

Other Physical Features:

• Power consumption: Normal operating: 7W; Max 8W
• Power input: PoE 48V, 0.27A
• Bracket: Integrated bracket, 28° - 50° steplessly adjustable
• Dimension (W x D x H): 50° 202 x 151 x 100; 28° 202 x 151 x 91.5

• MeetingBar A30 endpoint
• 3m Ethernet cable
• 2 x 1.8m HDMI cable
• Mounting Bracket and Accessories
• Power adapter
• Quick Start Guide
• CTP18 Touch Panel
