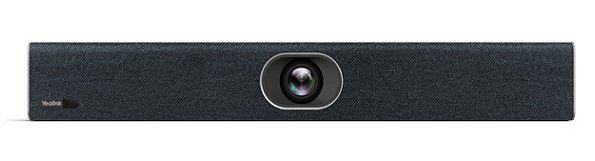

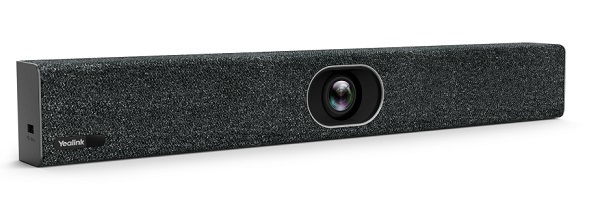

Yealink A20 Zoom Room All-in-One Meeting Bar with Built-In Microphone and CTP18 Touch Console

Designed for small spaces, the Yealink all-in-one MeetingBar A20 for Zoom integrates the whole things you need for your Zoom Rooms experience. Pairing to a CTP18 touch panel for meeting control from the conference table, A20 brings a seamless Zoom Rooms experience to every user.

Keep Everyone Engaged with 20MP AI-powered Camera
The A20 camera is equipped with AI technology, including Auto Framing and Speaker Tracking. With the 133° wide-angle lens and Auto Framing, it can recognize the number of and the position of attendees, framing everyone smoothly in the most appropriate view even in small spaces.

HD Full-duplex Audio Experience
With Yealink Noise Proof Technology, acoustic echo cancellation, and dereverberation, the A20 with built-in 8 MEMS microphone arrays and speaker allows users to enjoy a full-duplex voice experience seamlessly without interruption and to be heard and speak clearly in a meeting.

Consistent Zoom Rooms Collaboration with MeetingBar A20
The all-in-one Yealink MeetingBar A20 featuring Snapdragon 845 chipset runs Android 9.0, turns your workspaces into an effective Zoom meeting room. Users can enjoy the whiteboard collaboration, dual-screen share, wired and wireless content sharing, meeting controls and etc.

Camera

• 20MP Camera
• 133° field of view
• 8x e-PTZ camera
• Electric privacy shutter
• Intelligence Features: Auto Framing, Speaker Tracking

Audio

• Built-in 8 MEMS microphone array
• Built-in 5W high fidelity speaker
• Yealink Noise Proof Technology
• Full-duplex
• Echo cancellation

Operating System

• Android 9.0

Meeting Features

• Calendar
• One-click join
• Meeting collaboration: Content sharing, Whiteboard
• Meeting control: Add participates, Hold/Resume, Camera On/Off, Mute/Unmute, Volume Up/Down, Hang up
• Teams Edition: Microsoft DM, Proximity join
• Zoom Edition: Zoom DM, Direct sharing

Touch Panel

• Screen: 8-inch IPS FHD capacitive touch screen
• Resolution: 1280x800 (16:10)
• Touch: 10 points multi-touch
• Interface: 1x USB-C for device debugging, 1x RJ45 Ethernet for power and data connection, 1x Reset slot
• Wi-Fi: 2.4G/5G Wi-Fi, IEEE 802.11n/ac

Video Standard and Network Suitability

• Video codecs: H.264 High profile, H.264 SVC, H.264

Network and Security Features

• Built-in dual-band Wi-Fi (2.4GHz/5GHz)
• Built-in Bluetooth
• IPv4 and IPv6, DHCP/static IP
• HTTP/HTTPS web server
• SRTP/TLS, AES 256-bit encryption
• QoS: 802.1p/q, Diff-serv
• VLAN, LLDP
• IEEE802.1X: EAP-MD5/EAP-TLS, PEAP-MSCHAPv2, EAP-TTLS/EAP-MSCHAPv2
• Network diagnosis: Ping, Trace route
• Time and date synchronization using SNTP

Connections

• 2x HDMI output (CEC supported)
• HDMI input (through the VCH51 Sharing Kit)
• 1x USB 2.0
• 1x 10/100M/1000M Ethernet port
• 1x Yealink VCH port (RJ-45)
• 1x Power port
• 1x Security lock slot
• 1x Reset slot

Power

• Power Adapter: AC 100~240V input
• Power consumption (PSU): Idle < 10W; Normal operating: 10.5W; MAX: 14W
• Operating humidity: 10~95%
• Operating temperature: 0~40°C
• Storage temperature: -30~70°C

Physical

• Dimension (W.D.H): 600 x 68 x 82 mm
