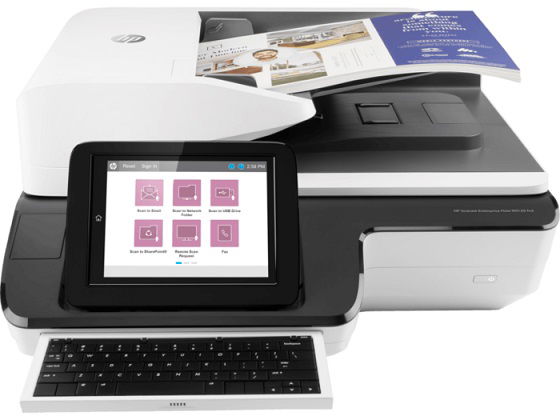

HP ScanJet Enterprise Flow N9120 Network Flatbed & ADF Scanner

Receive your files quickly with one of the fastest built-in OCR available in the scanner market. Digital sending allows you to capture, store, search, retrieve, edit, share, and much more. Easily and quickly transfer scans into editable text, encrypted PDF files, and more, using built-in OCR.

• Conveniently handle your most demanding day-to-day tasks with a high capacity 200 ADF, scanning speeds up to 120ppm/240ipm, and 20,000-page daily duty cycle.
• Handle large volumes at blazing speeds—up to 120 ppm/240 ipm.
• Capture every page easily—even stacks of mixed media—with HP EveryPage and an ultrasonic sensor.
• Rely on this scanner time after time—recommended up to 20,000 pages per day.
• Manage jobs directly, using the 8-inch (20.3 cm) touch control panel with full pull-out keyboard.

Scan Resolution:

• Scan Resolution, Optical: Up to 600 ppi
• Scan Resolution, Hardware: Up to 600 ppi
• Output Resolution Dpi Settings: 75; 150; 200; 300; 400; 600

Scan Speed:

• Automatic document feeder scan speed: Up to 120 ppm/240 ipm (b&w), up to 120 ppm/240 ipm (color)
• Scan speed footnote number: Scan speeds measured from ADF. Actual processing speeds may vary depending on scan resolution, network conditions, computer performance, and application software.The paper movement speed of HP ScanJet Enterprise Flow N9120 fn2 is over 120 ppm/240 ipm at 300 dpi Black/White and Grey mode. The paper movement speed measurement methodology is based on HP standard using HP Scan software via USB cable connection. All testing was conducted in normal office environment.

Scanner Specification:

• Duty cycle (daily): Recommended daily duty cycle: 20,000 pages
• Bit Depth: 24-bit external 48-bits internal
• Auto document feeder capacity: Standard, 200 sheets @ 75gsm
• Scan size, maximum: 297 x 432 mm
• Scan size (ADF), maximum: 297 x 432 mm; Up to 297 x 864 mm when "long scan size" selected
• Scan size ADF (minimum): 68 x 148 mm
• Scan input modes: Front panel applications: E-mail; Save to Network Folder; Save to USB; Save to Device Memory; Open Extensibility Platform (OXP) applications; software scan using HP Scan Software; user application via TWAIN, ISIS, WIA or Kofax VirtualRescan (VRS) Professional drivers
• Scan file format PDF, JPEG, TIFF, MTIFF, XPS, PDF/A, TEXT (OCR), Unicode TEXT (OCR), RTF (OCR), Searchable PDF (OCR), Searchable PDF/A (OCR), HTML (OCR), CSV (OCR); Scan to easy access USB: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A, TEXT (OCR), Unicode TEXT (OCR), RTF (OCR), Searchable PDF (OCR), Searchable PDF/A (OCR), HTML (OCR), CSV (OCR); For HP Scan: PDF, JPEG, PNG, BMP, TIF, Text (.txt), Rich text (.rtf), Searchable PDF (.pdf), PDF/A (.pdf); For HP Easy Scan: TIFF, PNG, JPEG, JPEG-2000, PDF, PDF-Searchable, RTF, TXT; For Linux: JPEG, PDF, PNG, PNM, PostScript, TEXT, TIFF
• Duplex ADF scanning: Yes
• Scan technology: Charge Coupled Device (CCD) & Contact Image Sensor (CIS)
• Levels of grayscale: 256
• Color scanning: Yes
• Scanner advanced features: Optimize text/picture; Image adjustments; Job build; Output quality setting; Selectable scan resolution 75 to 600 dpi; Auto detect color; Edge Erase; Job notification; Blank page suppression; HP Quick Sets; HP EveryPage; Auto orientation; Embedded Optical Character Recognition (OCR), Auto crop to page; Auto-tone
• Processor speed: 1.2 GHz
• Memory: 3584 MB (2560 MB on primary board, 1024 MB on scanner processor)

Connectivity and Communications:

• Network ready: Standard (built-in Gigabit Ethernet)

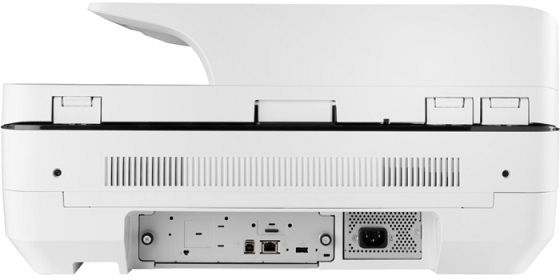

• Ports: 10/100/1000 Ethernet; 1 Hi-Speed USB Host (rear); 1 Hi-Speed USB Host (walk-up); 1 Hardware Integration Pocket (HIP) Hi-Speed USB, 1 USB-Device Port (Rear)
• Connectivity, standard: 10/100/1000 Ethernet; 1 Hi-Speed USB Host (rear); 1 Hi-Speed USB Host (walk-up); 1 Hardware Integration Pocket (HIP) Hi-Speed USB, 1 USB-Device Port (Rear)
• Connectivity, optional: HP Jetdirect 2900nw Print Server J8031A
• Twain version: Version 2.1
• Control panel: XGA 1024x768 LCD display; Light touch technology that supports gesture based interactions; Screen brightness-adjustment control; Home icon for quick return to the UI Home Screen; Virtual keyboard and a physical keyboard

Power:

• Power: 100 to 240 VAC , 50/60 Hz , 9 A
• Power supply type: Internal power supply
• Power Consumption: 21 watts (Ready), 1.2 watts (Sleep), 0.3 watt (Off)

Supported Printing Media:

• Media weights, supported, ADF 45 to 199 g/m²
• Media size (ADF) A3, Ledger, B4-JIS, Legal, 8.5 x 13, Letter, A4, B5-JIS, A5, B6-JIS, A6
• Media types ADF: Paper (Plain, Inkjet, Inkjet Brochure/Glossy), Photo Paper; Flatbed: All ADF Media, Envelopes, Labels, Cards, Books

Environmental:

• Operating temperature range: 10 to 35ºC
• Storage temperature range: -40to 60ºC
• Operating humidity range: 15 to 80%RH non-condensing 10 to 35ºC (50 to 95ºF)
• Non-Operating Humidity Range: Up to 90%RH at 30 to 60ºC (86 to 149ºF)
• Acoustic power emissions: 3.6 B(A) (Idle); Operating: 7.3 B(A), ADF scan color simplex using A4 paper at 131 ppm

Dimensions and Weight:

• Dimensions without stand (W x D x H): 602 x 635 x 287 mm
• Maximum dimensions (W x D x H): 602 x 755 x 622 mm
• Weight: 21.4 kg

Compatible Operating Systems

• Linux Debian (7.0, 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 8.0, 8.1, 8.2, 8.3, 8.4, 8.5, 8.6), Linux Fedora (22, 23, 24), Linux Mint (17, 17.1, 17.2, 17.3, 18), Linux Red Hat Enterprise (6.0, 7.0), Linux SUSE (13.2, 42.1), Linux Ubuntu (12.04, 14.04, 15.10, 16.04, 16.10), OS Mac OS 10.12 Sierra, OS X 10.10 Yosemite, OS X 10.11 El Capitan, UNIX, Windows 10 all 32- & 64-bit editions (excluding RT OS for Tablets), Windows 7 all 32- & 64-bit editions, Windows 8/8.1 all 32- & 64-bit editions (excluding RT OS for Tablets)
• Minimum System Requirements: 2 GB available hard disk space, OS hardware requirements see microsoft.com or 1.3 GB available hard drive space; Internet; OS hardware requirements see Apple.com for more info; For HP Scan: Windows® 10, 8.1, 8, 7: 32-bit or 64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer, 2 GHz processor, 2 GB RAM, 1024 x 768 SVGA monitor
• Mac compatible: Yes
• Minimum System Requirements for Macintosh: 1.3 GB available hard drive space; Internet; OS hardware requirements see Apple.com for more info

• HP ScanJet Enterprise Flow N9120 fn2 Document Scanner
• Hardware Install guide;
• HP N9120 fn2 HbrCD for Mac And PC
• HP User's Guide_Regulatory Info CD
• Power Cord
• USB cable
