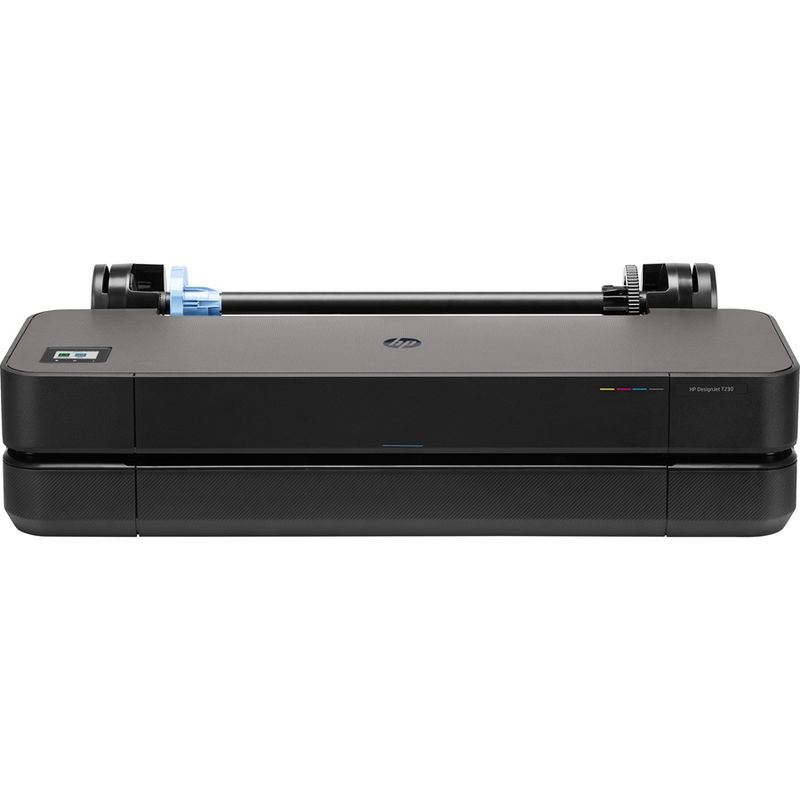

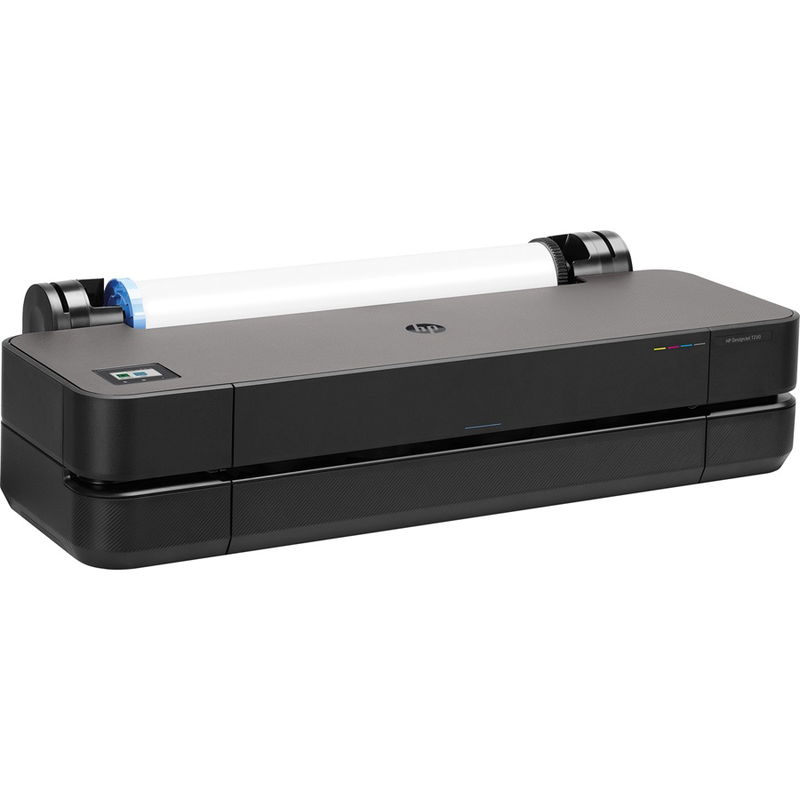

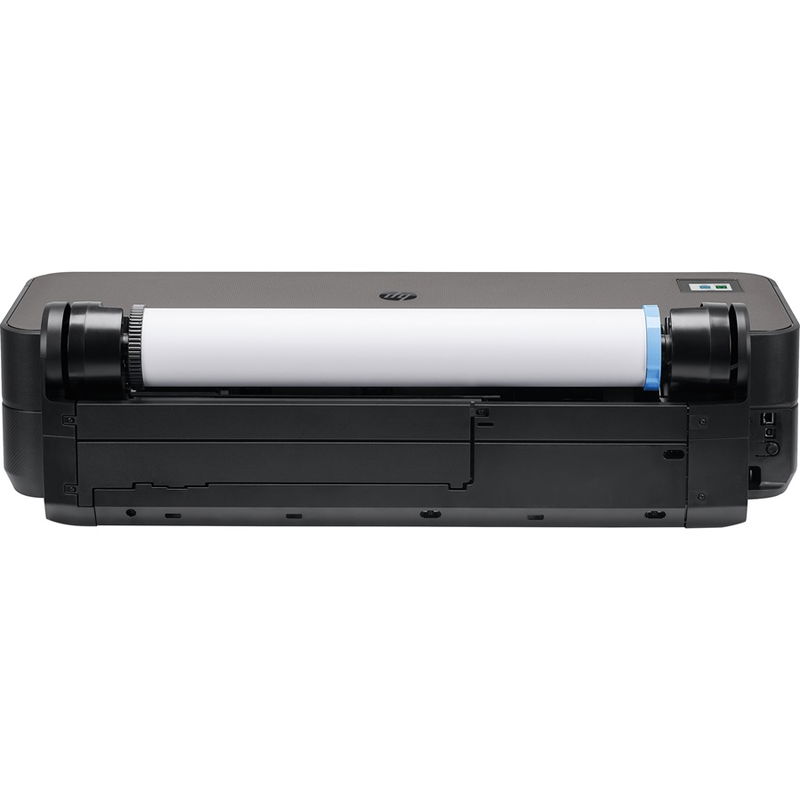

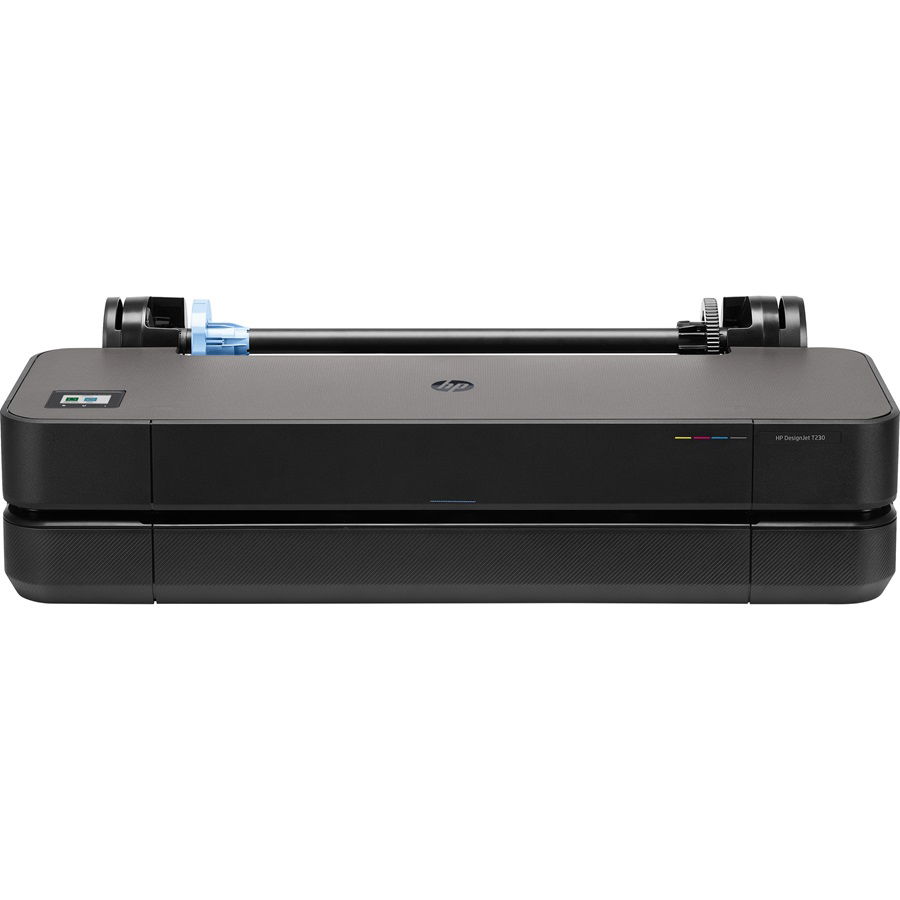

HP DesignJet T230 24 Inch A1 35ppm Network Wireless Large Format Inkjet Printer

Focus on the project, not your plotter. This printer delivers incredible ease of use with HP Click Print solutions. It's responsibly designed to help you save energy and reduce plastics use. Plus, it’s compact and adaptable—to fit the way you work.

Intuitive—Easy, effortless printing:
Simplify printing with the new HP Click Print solutions—save time with real-print preview. With an accessory, print multi-size A4/A to A1/D projects without manually switching the media source. Print your jobs and manage your plotter virtually anywhere, anytime with the HP app.

Responsibly Designed—Reduce energy and plastic use:
Save 65% energy with the printer on/off auto scheduler and enjoy efficient ink maintenance routines. Minimise plastic waste by more than 50% with a new molded fiber packaging and removal of most plastic bags. Made with at least 40% recycled plastic and the first HP large format printer containing recycled metal.

Optimised—Fits the way you work:
Save space with HP's smallest plotters designed to fit your office. Avoid waiting by the printer with printing as fast as 35 seconds per A1/D plot. Protect your printer from cyberthreats with HP Wolf Essential Security.

Print:

• Print speed: 35 sec/page on A1, 68 A1 prints per hour
• Print resolution: Up to 2400 x 1200 optimised dpi
• Technology: HP Thermal Inkjet
• Margins (roll): 5 x 5 x 5 x 5 mm
• Margins (sheet): 5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray)
• Ink types Dye-based: (C, M, Y); pigment-based (K)
• Print Cartridges/Bottle, Number: 4 (C, M, Y, K) cartridges
• Print cartridge/bottle volume delivered: 80 ml (K); 38 ml (K); 29 ml (C, M, Y) per cartridge
• Page Yield: 20 ml of ink yields 101 A1/D pages, taking into account maintenance routines
• Ink drop: 5.5 pl (C, M, Y); 12 pl (K)
• Printheads: 1 (cyan, magenta, yellow, black)
• Printhead nozzles: 1376
• Line accuracy: ± 0.1%
• Minimum line width: 0.02 mm
• Max optical density: 8 L* min/2.10 D

Media:

• Applications: Line drawings; Presentations; Renderings
• Handling: Sheet feed, roll feed, automatic horizontal cutter
• Rolls: Media rolls: 1; Roll size: 279 to 610 mm; Maximum roll weight: 4.1 kg; Maximum roll diameter: 100 mm;
• Maximum media width: 610 mm
• Sheet size: 210 x 279 to 610 x 1897 mm
• Standard sheets: A4, A3, A2, A1
• Media Weight Recommended: 60 to 280 g/m²
• Thickness: Up to 0.3 mm
• Media types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Embedded controller:

• Memory: 512 MB
• Hard disk: None
• Native print languages: JPEG, URF

Connectivity:

• Interfaces Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
• Printing paths: HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing
• Remote print enabled: Yes
• One-click multi-size printing: Yes
• Drivers: Raster driver for macOS and Windows, HP Click Driver for Windows 11

Physical:

• Dimensions (WxDxH): 1013 x 440 x 285 mm
• Weight: 21.5 kg

Environmental ranges:

• Operating temperature: 5 to 40ºC
• Operating humidity: 20 to 80% RH
• Operating altitude: Up to 3000 m
• Storage temperature: - 25 to 55ºC
• Recycled plastic in printer: 40%

Acoustics:

• Sound pressure: Printing: 42 dB(A) (operating), < 16 dB(A) (idle)
• Sound power: Printing: 5.8 B(A) (operating), < 3.4 B(A) (idle)

Power:

• Consumption: < 35 W (printing), < 5.6 W (ready), < 2.1 W (sleep), < 0.2 W (off)
• Requirements: Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

• HP DesignJet T230 24-in Printer
• Printhead
• Introductory ink cartridges
• Spindle
• Quick reference guide
• Setup poster
• Power cord
