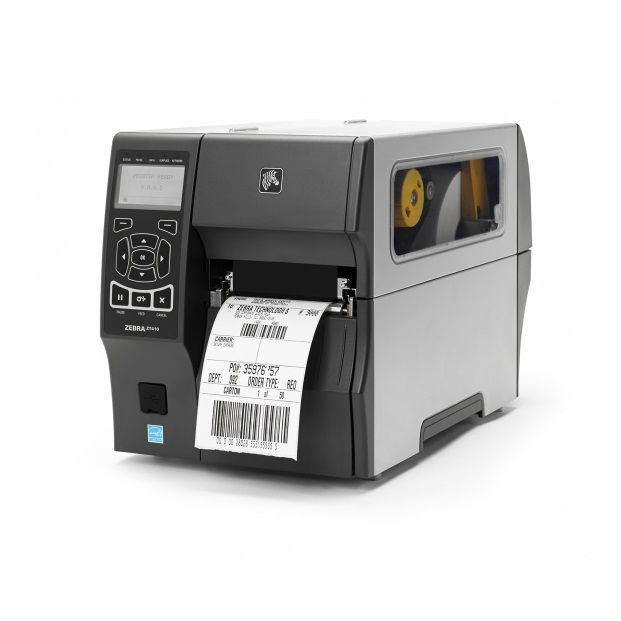

Zebra Midrange ZT410 203DPI 4 Inch Thermal Transfer Label Printer - Ethernet Serial USB Bluetooth

Keep your critical operations running efficiently with Zebra’s durable ZT400 Series printers, designed for years of performance in a wide array of applications. The ZT400 Series builds on the field-proven reliability of the Z Series with advancements in print speed, print quality and connectivity options. Designed for ease of use, the ZT400 Series printers offer an intuitive icon based LCD graphical user interface and easy supplies loading. And, they include standard USB, Serial, Ethernet and Bluetooth capabilities. Expanded RFID capacities deliver greater tracking abilities, deeper visibility and enterprise insights. The ZT400 Series comes standard with an extensive set of advanced features that ensure your printer investment will always meet your needs, now and in the future. Constructed using an all-metal frame and bi-fold door, this printer is designed to fit well in space constrained environments. Featuring Zebra’s Link-OS environment — an innovative operating system combining a powerful Multi-platform Software Development Kit (SDK) and software applications—ZT400 Series printers are easy to integrate, manage and maintain from any location around the globe.

Application Flexibility

• Expand your printing readiness through an exceptional range of media capabilities and media delivery options.
• Customize your printer to match your current and future business needs with end-user-installable media handling options.
• Standard Serial, USB, Ethernet and Bluetooth features—as well as two open media slots—allow you to utilize non-standard connectivity options.
• Expanded RFID capabilities are easy to install and simple to use.
• Ensure quality output for small-label applications with high-resolution printing capabilities.

Effortless to Integrate

• USB host port enables simple printer configuration by easily transferring data from a USB flash drive via mirroring and expanded mapped-drive memory capabilities.
• Virtual Devices apps enable Link-OS printers to support well-known legacy and competitor printer languages—in addition to ZPL and EPL—for a future-proofed investment.

Easy to Operate

• Dynamic QR codes provide on-demand, web-based support to resolve printer errors quickly.
• Print Touch-enabled Link-OS printers offer web page launching features using Near Field Communication (NFC), making it easy to access Zebra’s extensive knowledge base of how-to videos and product support.
• Lighted media and ribbon paths make it easy to see inside the printer, even in poorly lit environments.

Simple to Manage

• Zebra’s Link-OS environment delivers enhanced capabilities to monitor, manage and maintain your printer from any location.
• Cloud Connect allows Link-OS printers to securely and directly interact with the Cloud for printing and device management.
• Profile Manager enables you to edit and manage one printer, batches of printers or all Link-OS printers across your network anywhere in the world.

Printer Specifications

• Resolution: 203 dpi/8 dots per mm
• Memory: 256 MB RAM memory (4 MB user available); 512 MB Flash memory (64 MB user available)
• Maximum Print Width: 104 mm
• Maximum Print Speed: 356 mm per second
• Media Sensors: Dual media sensors: transmissive and reflective
• Media web width (label and liner): 25.4 mm to 114 mm tear/cutter; 25.4 mm to 108 mm peel/rewind
• Maximum non-continuous label length: 991 mm
• Print Length: 3988 mm
• Maximum Media Roll Size: 203 mm O.D. on a 76 mm I.D. core
• Media Thickness: 0.058 mm to 0.25 mm
• Media Types: Continuous, die-cut, notch, black-mark

Ribbon Characteristics

• Outside Diameter: 450 m: 81.3 mm O.D. on a 25.4 mm I.D. core
• Standard Length: 450 m
• Width: 51 mm to 110 mm

Operating Characteristics

• Operating Environment: 5° to 40°C; 20% to 85% non-condensing R.H.
• Storage Environment: -40°C to 60°C; 5% to 85% non-condensing R.H.
• Electrical: Auto-detectable (PFC Compliant) 100-240 VAC, 50-60Hz, rated at 100 Watts; ENERGY STAR qualified

Firmware

• Resident ZPL, ZPL II and EPL programming languages, selectable through software or front panel.
• XML-enabled Printing - allows XML communications for barcode label printing.

Barcode Symbologies

• Linear Symbologies: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
• 2-Dimensional Barcodes: Codablock, PDF417, COde 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Fonts and Graphics

• 16 Resident expandable ZPL II bitmap and two resident scalable ZPL fonts
• Asian and other international scalable and smooth bitmapped fonts
• Unicode: For multi-language printing
• Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
• IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
• Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0

Physical Characteristics

• Dimensions (closed) (WxHxD): 269 x 324 x 495 mm
• Weight (Approx.): 16.33 kg
