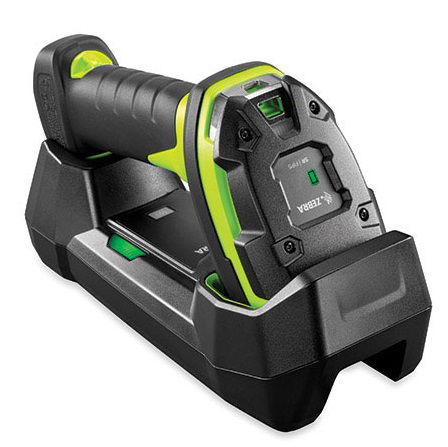

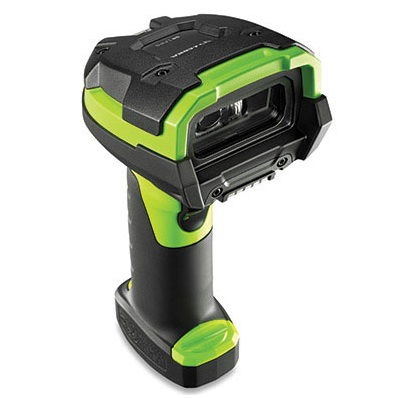

Zebra LI3678 1D USB Bluetooth Extended Range Rugged Barcode Scanner - Black/Industrial Green

As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D LI3678 cordless scanners are ready for the world’s toughest environments - the warehouse and manufacturing floor. Loaded with features that deliver truly unstoppable performance, the LI3678 redefines scanner reliability and management simplicity

Superior Performance

• You get the ultimate in 1D scanning performance - period. Your workers can scan barcodes as fast as they can pull the trigger. With 30 percent more working range, it’s easy to capture barcodes that are farther away. Are barcodes under shrinkwrap? Damaged? Dirty? Poorly printed? No problem, this intelligent scanner can handle it all.

Ultra-Rugged Design

• The manufacturing plant floor is as tough as its gets - and the cost of unplanned downtime on the production line is astronomical. That’s why we created a new product category - the ultra-rugged scanner. This dust-tight and waterproof scanner offers the highest drop, tumble and sealing specification in this class.

Crispest aiming pattern in its class

• You get the industry’s sharpest, brightest aiming pattern, ideal for first-time accurate capture of barcodes in pick lists.

Performance Characteristics

• Scans per Full Charge: 100,000+
• Illumination: 660 nm LED
• Aimer: 655 nm laser
• Imager Field of View: 30.7° (H)
• Image Sensor: 2,496 pixels
• Minimum Print Contrast: 25% minimum reflective difference
• Skew/Pitch/Roll Skew: ± 65°; Pitch: ± 65°; Roll: ± 45°
• Decode Capabilities: 1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

Wireless Connectivity:

• Bluetooth Radio: Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles
• Data Rate: 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth, 1 Mbit/s (0.27 Mbit/s) for Low Energy
• Radio Range: Direct line of sight in open air, Class 1: Up to 300 ft. (100.0 m), Class 2: Up to 30 ft. (10.0 m)

User Environment

• Operating Temp: Cordless: -4° F to 122° F/-20° C to 50° C
• Storage Temp: -40° F to 158° F/-40° C to 70° C
• Humidity: 5% to 95% condensing
• Drop Specification: Withstands multiple 8.0 ft. / 2.4 m drops to concrete
• Tumble Specification: 5,000 tumbles @ 3.3 ft. (1 m)
• Sealing: Scanner: IP67; FLB cradle: IP65
• ESD: Per EN61000-4-2, ±25 KV air discharge, ±10 KV, direct discharge, ±10 KV indirect discharge
• Ambient Light Immunity: 0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight)

Physical Characteristics

• Input Voltage Range: Host powered: 4.5 VDC min., 12.6 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max.
• Interface: USB, Bluetooth
• IP Rating: Scanner: IP67, Cradle: IP65
• Battery: PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
• User Indicators: Direct decode indicator; LEDs; beeper; vibration
• Dimensions (H x W x D): Cordless: 18.5 x 7.6 x 14.2cm
• Weight: Cordless: 385g
