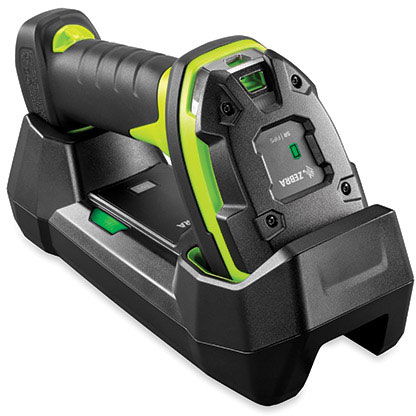

Zebra DS3678 2D Bluetooth Standard Range Rugged Barcode Scanner - Black/Industrial Green

Every day, workers in your warehouse and on the manufacturing plant floor scan thousands of barcodes to ensure product quality and on-time order delivery. Their productivity depends on the quality of the scanner you put in their hands. When workers need to capture 1D and 2D barcodes at standard ranges, with cordless DS3678-SR scanner, you can give them the best - unmatched rugged design, unmatched scanning performance and unrivalled manageability. The advanced imager delivers lightning-fast capture of any 1D or 2D barcode printed on a label in virtually any condition or displayed on a screen, from near contact to nearly 1.5 m away. And when it comes to cordless technology, the DS3678-SR is in a class of its own, with a complete solution that includes a sealed rugged cradle, a smart battery and Zebra's Wi-Fi Friendly Mode that prevents interference with your Wi-Fi network.

Superior scanning performance on any 1D/2D barcode, in any condition:
The advanced imager reads 1D and 2D barcodes displayed on a screen or printed on a label faster and farther than other standard range scanners. Easily read barcodes from near contact to nearly 1.5 m away — even if they are under shrink wrap, damaged, dirty or poorly printed. The result? Workers can capture barcodes as fast as they can pull the trigger for first-time every time scanning — and extraordinary productivity.

Ultra-rugged — the most indestructible design in its class:
The DS3678-SR is Zebra's most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3678-SR is built to survive an 2.4 m drop to concrete — 23 percent more durable than any other scanner in this class. The DS3678-SR operates reliably after 5,000 tumbles, simulating the real-world tumbling that occurs with a drop. Both models are dustproof, spray proof and waterproofed to IP67 — they can be sprayed down with jetting water and even submersed in water for up to 30 minutes.

Multi-code captures and processes up to 20 barcodes simultaneously:
Many labels have multiple barcodes your workers need to capture. Now, one press of the trigger captures the right barcodes and applies the unique data format required for each one for instant transmission to your backend systems — all with complete control over the order barcodes are processed.

Physical Characteristics:

• Dimensions - Cordless: 18.5 cm H x 7.6 cm W x 14.2 cm D
• Weight - Cordless: 407 g
• Input Voltage Range: Host powered: 4.5 VDC min., 5.5 VDC max., External power supply: 11.4 VDC min., 12.6 VDC max.
• Colour: Industrial Green
• Supported Host Interfaces: USB, RS232, Keyboard Wedge
• Battery: PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
• User Indicators: Direct decode indicator; LEDs; beeper; vibration

Performance Characteristics:

• Scans per Full Charge: 70,000+
• Illumination: One (1) Hyper Red 660nm LED
• Imager Field of View: Horizontal: 42°, Vertical: 28°
• Image Sensor: 1,280 x 800 pixels
• Minimum Print Contrast: 15% minimum reflective difference
• Skew/Pitch/Roll: Skew: ± 60°; Pitch: ± 60°; Roll: ± 360°

Decode Capabilities:

• 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
• 2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes

User Environment:

• Operating Temp. Cordless: 20° C to 50° C
• Storage Temp. -40° C to 70° C
• Humidity: 5% to 95% condensing
• Drop Specification: Withstands multiple 2.4 m drops to concrete
• Tumble Specification: 5,000 tumbles @ 1 m
• Sealing - Scanner: IP65 and IP67
• Sealing - FLB cradle: IP65
• ESD: Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge

Utilities & Maintenance:

• 123Scan: Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports.
• Scanner SDK: Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code.
• Scanner Management Service (SMS): Remotely manages your Zebra scanner and queries its asset information

Wireless Connectivity:

• Bluetooth Radio: Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles
• Data Rate: 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth, 1 Mbit/s (0.27 Mbit/s) for Low Energy
• Radio Range: Direct line of sight in open air: Class 1: Up to 300 ft. (100.0 m), Class 2: Up to 30 ft. (10.0 m)

Regulatory:

• Environmental: RoHS EN 50581: 2012
• Electrical Safety: EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013 US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
• LED Safety: International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED)
• EMI/RFI: IT Emissions: EN 55022: 2010/AC: 2011 (Class B), IT Immunity: EN 55024: 2010, Heavy Industrial: EN 61000-6-2: 2005/AC:2005, Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B), Voltage Fluctuation and Flicker: EN 61000-3-3: 2013, Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified), Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B, Digital Apparatus: ICES-003 Issue 5, Class B
