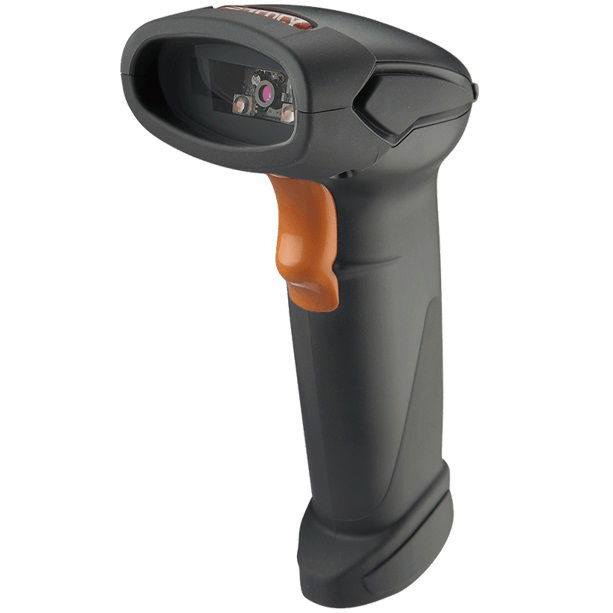

Zebex Z-3192BT 1D/2D Wireless Handheld Barcode Scanner

With a state of the art technology, the Z-3192BT gives wireless freedom in scanning within 100-meter connection range. The included 2D scan engine enables wide variety of application at superb scanning speed. Embedded with ZEBEX most advanced decoder, Z-3192BT guarantees accurate reading and decodes most popular 1D and 2D barcode symbologies. It is the ideal scanner for manufacturing and logistic sectors.

• Wireless freedom
• Data connection flexibilities
• Flashing LED indication and programmable beeper
• Light-weighted and gun-type shape for easy handy operation
• Decode most 1D & 2D barcodes
• Rugged gun-type design for tough working conditions
• Smart charging to prolong battery life
• Captures barcodes on mobile phone, tablet, or computer screens

Operational:

• Aiming Element: 650 nm visible laser diode (VLD)
• Illumination Element: 625±5 nm
• Optical System: 752H×480V pixels (wide VGA)
• Field of View: Z-3192BT-SR: 39.6° horizontal; 25.7° vertical Z-3192BT-HD: 38.4° horizontal; 24.9° vertical
• Focusing Distance: Z-3192BT-SR: 20.3 cm / 8 inch Z-3192BT-HD: 7.4 cm / 2.9 inch
• Sensitivity: 360° (omnidirectional rotational sensitivity)
• Print Contrast: 30% @ UPC/EAN 100%
• Indicator: Beeper and LED
• Programmable Operation: Power mode, beeper tone & volume, focus control, image control, trigger mode
• Image Format: BMP (.bmp), TIFF (.tif), JPEG (*.jpg)
• System Interface: Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS

Depth of Field:
Z-3192BT-SR

• Code 39 (5 mil): 40 – 190 mm
• Code 39 (13 mil): 30 – 420 mm
• PDF 417 (10 mil): 30 – 280 mm
• DataMatrix (10 mil): 60 – 170 mm

Z-3192BT-HD

• Code 39 (5 mil): 15 – 130 mm
• Code 39 (13 mil): 30 – 200 mm
• PDF 417 (10 mil): 15 – 120 mm
• DataMatrix (10 mil): 60 – 170 mm
• Note: DOF may vary depending on environment condition and barcode quality.

Physical Characteristics:

• Dimensions device only (HxWxL): 147.0 × 62.0 x 114.5 mm
• Dimensions with cradle (HxWxL): 176.4 × 101.6 × 133.6 mm
• Weight with battery: 210 g
• Weight with cradle: 510 g
• Cable: Standard 3M straight

Radio Communication:

• Frequency: 2.4~2.48 GHz (ISM band)
• Interface: Cradle host; SPP master; HID; slave
• Working Range: Up to 100M with communication cradle (depends on operating environment)

Power:

• Input Voltage: 5 VDC ± 10%
• Operating Current: Charging: 700 mA (external power); Non-charging: 70 mA
• Main Battery: 3.7V, 2,500 mAh, Li-ion battery
• Recharging Time: Max. 5 hours
• Number of Scan: Over 20,000 scans at 1 scan per second per full charge
• Battery Life: 7 hours per full charge

Regulatory:

• EMC: CE & FCC DOC compliant
• Radio: CDRH Class II
• Safety: FCC TCB, EN 300 328, ARIB STD-T66

Environment & Safety:

• Operating Temperature: 0°C – 40°C (32°F – 104°F)
• Storage Temperature: -20°C to 60°C (-4°F – 140°F)
• Humidity: 5% to 95% RH (non-condensing)
• Light Level: 0-100,000 Lux (fluorescence)
• Drop Durability: 1.2 m

Decoding Capability:

• 1D Barcode: UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded
• 2D Barcode: PDF 417, MicroPDF 417, MaxiCode, DataMatrix, DataMatrix Inverse, QR Code, QR Inverse, MicroQR Code, Aztec Code, Aztec Inverse, Postal Code
