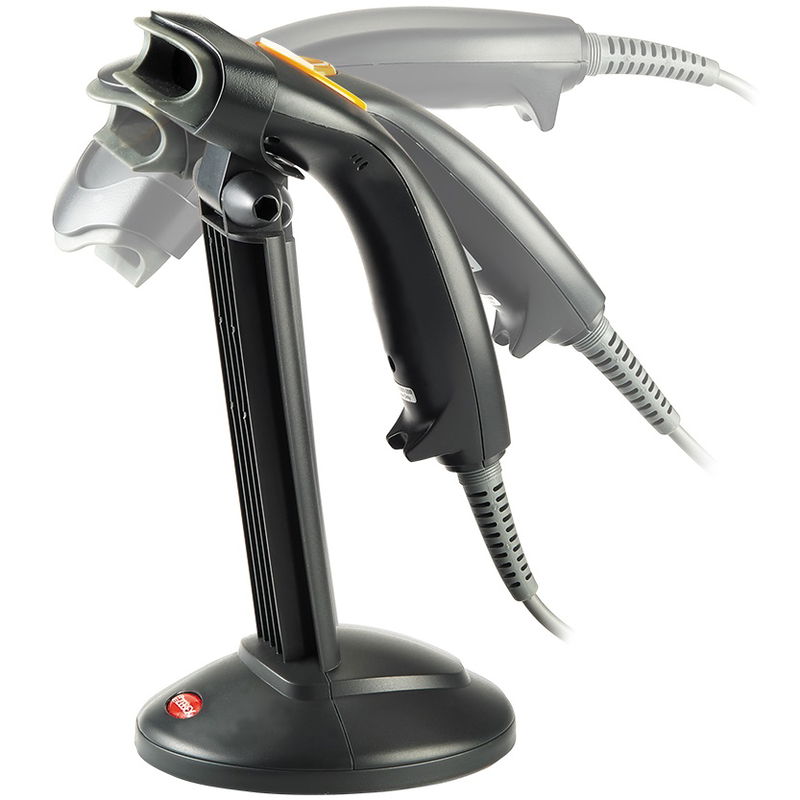

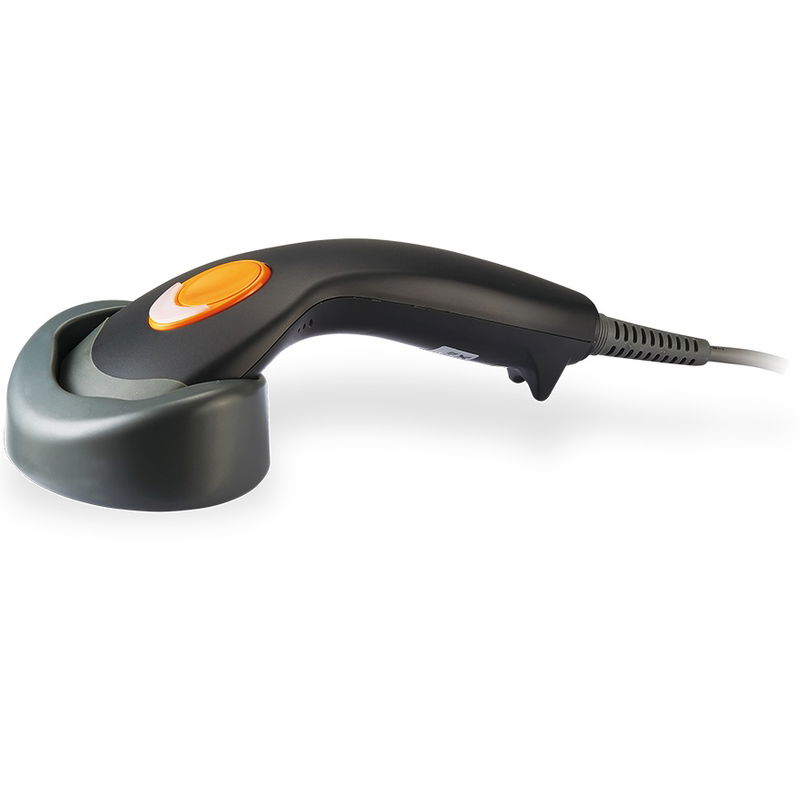

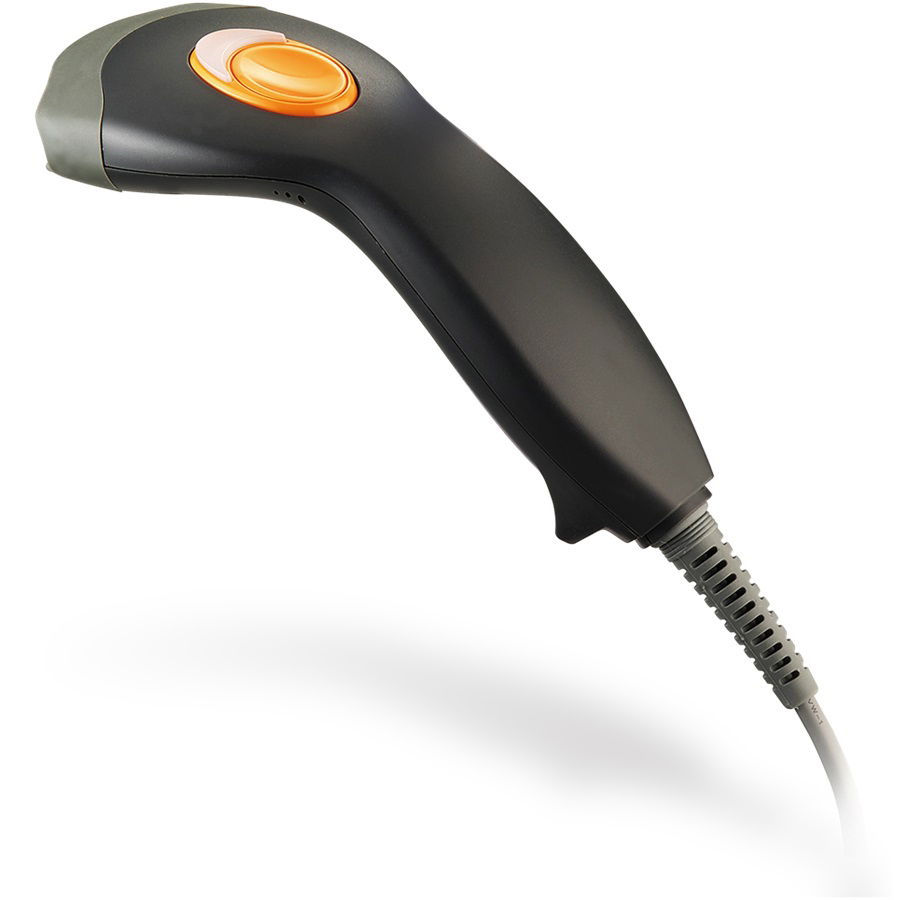

Zebex Z-3102 1D/2D USB Standard Range Handheld Barcode Scanner

Elevate your scanning experience with the Z-3102, the enhanced edition of ZEBEX's middle-range handheld 2D image scanner series. This device introduces cutting-edge features meticulously engineered to transform your scanning process and propel your efficiency to extraordinary levels. Powered by advanced image processing technology, the Z-3102 excels in reading 1D, 2D, and postal barcodes at high speed from any direction and offers an ergonomic design for user comfort and boasts low power consumption.

• Streamline design and large trigger for effortless operation
• Captures barcodes on mobile phones, tablets, or computer screens
• High speed, omnidirectional reading of 1D, 2D and postal barcodes
• Extremely low power consumption
• Affordable high performance

Operational:
• Aiming Element: 617 nm LED
• Illumination Element: White LED
• Optical System: 1280H × 800V CMOS
• Min. Bar Width: 4 mils (Code39)
• Print Contrast: 30% @ UPC/EAN 100%
• Indicator: Blue LED
• Beeper Operation: Programmable tone & beep time
• System Interface: RS-232, USB

Depth of Field:
• Code39 (4 mil) : 30 - 130 mm
• Code39 (5 mil): 30 - 160 mm
• EAN 13 (13 mil): 30 - 300 mm
• QR Code (7 mil): 30 - 125 mm
• Data Matrix (7 mil): 40 - 130 mm
(Note: DOF may vary depending on environment condition and barcode quality.)

Physical Characteristics:
• Dimensions (HxWxL): 152.3 x 64.4 x 104.9 mm (device only)
• Weight: 86.5 g (device only)
• Cable: Standard 2M straight

Power:
• Input Voltage: 5 VDC ±10%
• Operating Current: 150 mA @ 5V (Typical)

Regulatory:
• EMC: CE & FCC DOC compliance, VCCI, BSMI, UKCA
• Safety: IEC 62471

Environment & Safety:
• Operating Temperature: 0°C ~ 50°C ( 32°F ~ 122°F )
• Storage Temperature: -20°C ~ 60°C ( -4°F ~ 140°F )
• Humidity: 5%~95% RH (non condensing)
• Light Level: 0 to 100,000 lux
• Drop Durability: Designed to withstand 1.5M drops

Decoding Capability:
• 1D Barcode: UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13), Code 128, Code 93, Code 39, Code 32, Code 11, Codabar, Plessey, MSI, 2 of 5 (Interleaved, IATA, , Matrix, Straight), Pharmacode, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited
• 2D Barcode: PDF417, Micro PDF417, Data Matrix, QR Code (Standard, Micro), Aztec, MaxiCode, DotCode
