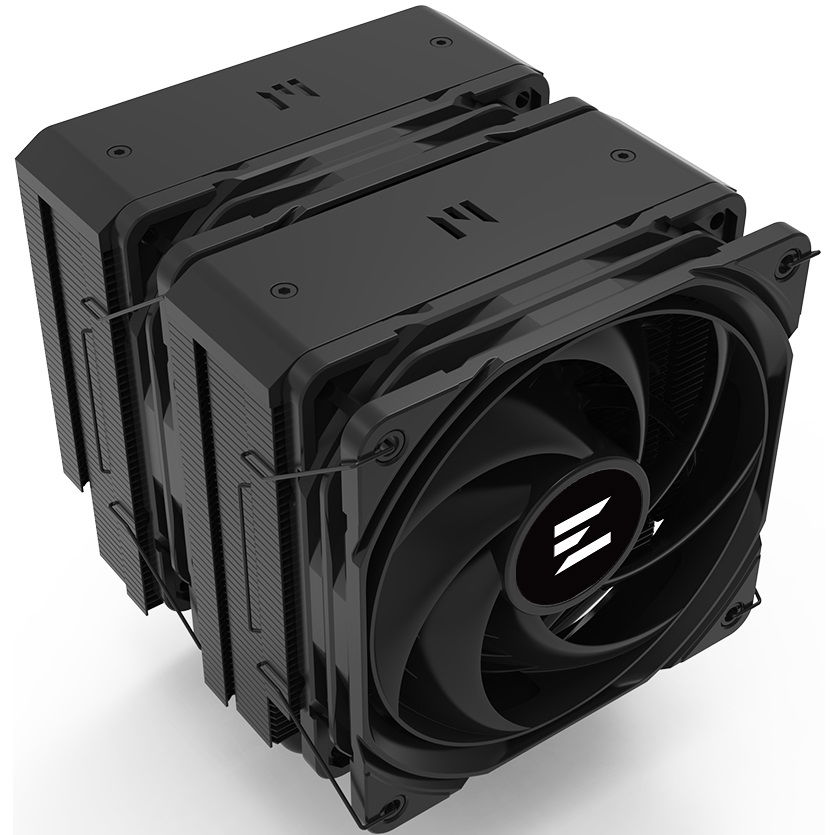

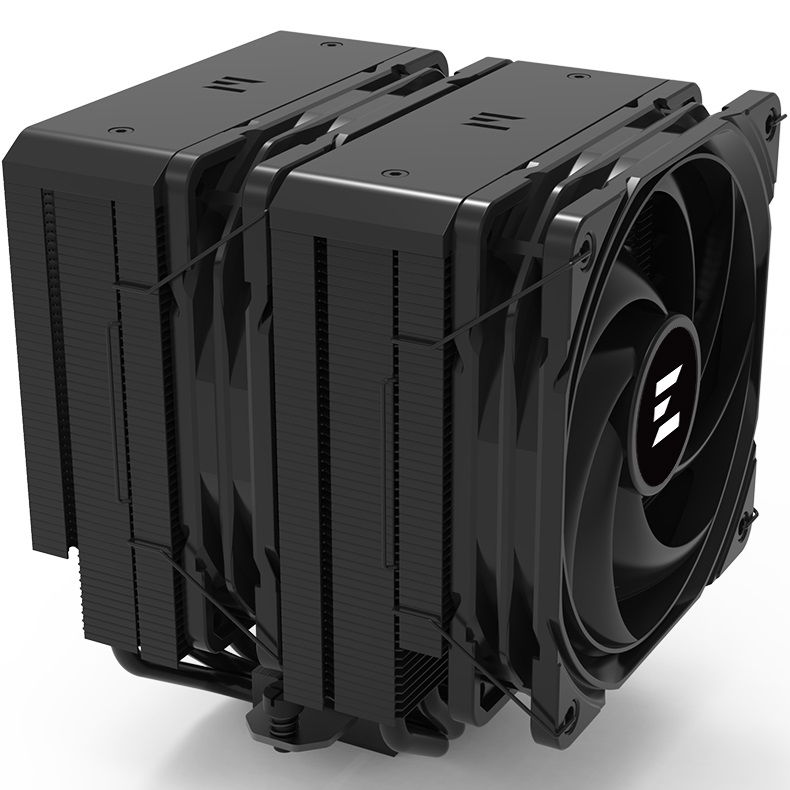

Zalman CNPS14X Duo 120mm CPU Cooler - Black

It is fully compatible with the latest intel’s processors as well as AMD Ryzen. Power management technology for each processor is seamless with no compatibility issues.

Modern Top Cover:
The clean and modern design CNPS14X DUO BLACK is accentuated by a matching ABS top cover featuring the Zalman signature logo.

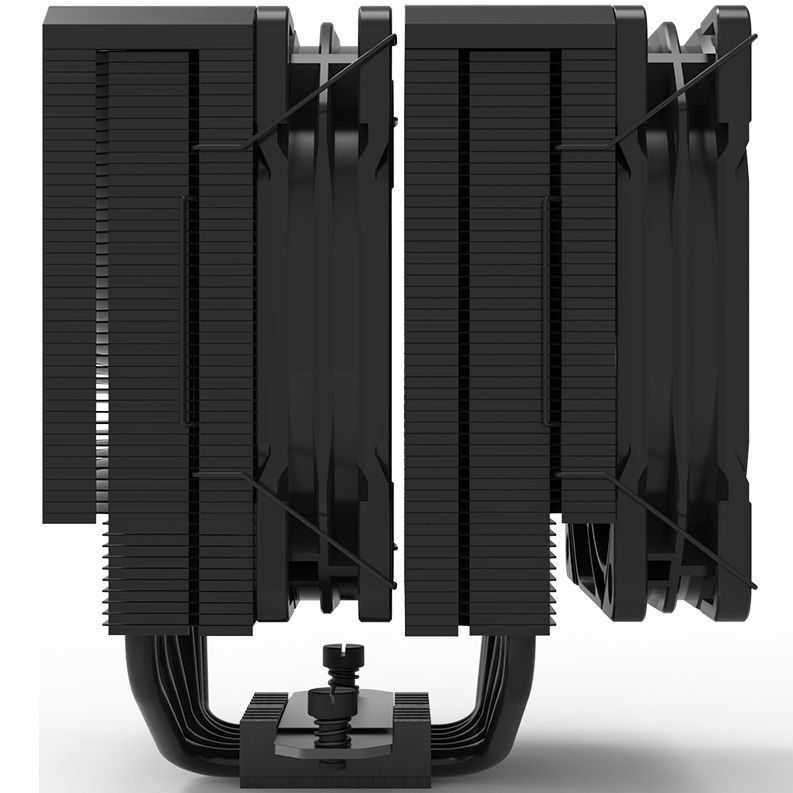

Performance Dual Tower:
14X offers extra heatsink and fins area for better heat dissipation. Dual tower maximizes performance and surface area by incorporating optimized fin density and thickness.

Cut-out heatsink Structure:
Cut-out heatsink is design in an asymmetric sturcture, Heatsink fin stack allows for motherboard and RAM compatibility.

Six high quality heatpipes:
CNPS14X effectively dissipates CPU heat with six high quality heatpipes and optimally designed heat sink. (Supports up to 270W TDP)

Nickel Plated Pure Copper Heatpipes:
Nickel plated copper heatpipes adds aesthetic to CNPS 14X Black increases thermal conductivity and rust resistance of the heatpipes

Extensive System Compatibility:
CNPS14X DUO BLACK gives 44mm clearance for standard RAM and maximum 52mm height with the cut-out fin design. Adjust the fan to proper height for RAM slots feature Overclocked RAM. Standing 159mm tall to be compatible with most case.

Powerful 120mm Annular Fan:
Zalman AF120 annular fan is designed to prevent vortex and backflow at the end of the wings, which can improve efficiency and stability by suppressing vibration.

Zalman AF120 Shark Fin Blades:
Unlike regular cooling fan, specially designedZalman AF120 Annular FAN with Shark fin blade provides minimum resistance to airflow allowing minimum operation noise. Hydro Bearing, like ball bearing, does not come into contact with metal and lubricant layer replaces bearing. It causes low noise, low heat and shock-resistance that is extremely durable and long-lasting.

Anti-Vibration Rubber Damper:
Applied rubber damper to minimize vibration noise during operation

• Dimensions: 126 x 135 x 159(H)mm
• Materials: Pure Copper, Pure Aluminum, ABS
• Weight: 1,160g
• Heat Dissipation Area: 9,997㎠
• Heat Pipe: 6
• TDP: 270W
• Fan Dimensions: 120 x 120 x 26(H)mm
• Fan Bearing Type: Hydro Bearing
• Fan Speed: 600~2,000RPM±10%
• Max. Fan Noise Level: 29.7dB(A)±10%
• Max. Fan Air Flow: 69.12CFM±10%
• Max. Static Pressure: 2.01mmH2O±10%
• Fan Life Span: 40,000hours
• Fan Connector Type: 4-Pin
• Fan Control Method: PWM Control
• Rated Voltage: 12V DC
• Rated Current: 0.28A
• Power Consumption: 3.36W
• Socket Compatibility: Intel : LGA1851/1700 / 1200 / 115X AMD : AM5 / AM4 / AM3
