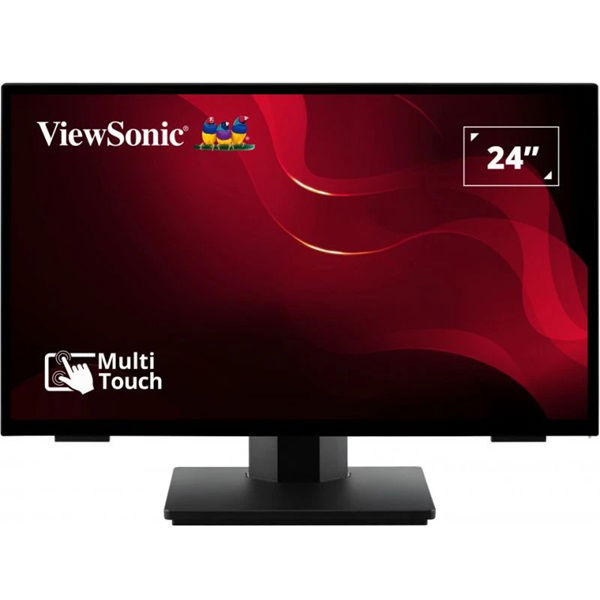

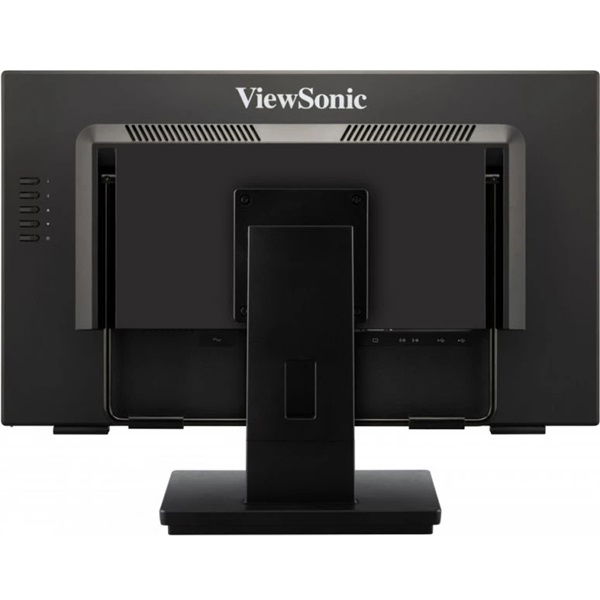

ViewSonic TD2465 24 Inch 1920 x 1080 7ms 60Hz Frameless Touchscreen VA Monitor with Speakers & USB Hub - HDMI, DisplayPort, VGA

The ViewSonic's TD2465 is the ideal solution for commercial and industrial spaces. Designed for wet hands touch, glove touch, and for any conductive stylus’ tip touch including pencil. The TD2465 delivers an intuitive 10-point PCAP touch technology for maximum interactivity. Featuring ViewSonic Touch Controller software, allowing you to control the device intuitively. Connection options include HDMI and DisplayPort inputs for effortless sharing capabilities. Equipped with VESA mounting design for any surface and Kiosk, the touch screen is the perfect display for various.

Designed For Versatile Installation Options:
The 24" touch monitor is your one-stop solution for industrial, retail, and commercial applications. Whether a self-ordering kiosk or industrial automation control unit, the TD2465 delivers versatile installation options and an intuitive 10-point touch response technology.

Intuitive and Responsive Touch:
Experience a smooth, and responsive touchscreen with the high-sensitive Projective Capacitive (PCAP) Touch Technology. With up to 10 touch point simultaneous input, each touch response is read with accuracy and precision.

Made for tough conditions:
The TD2465 is able to register fingerprints even when your hands are wet. Ideal for those situations where you often get your hands wet, and you need your equipment to keep up.

Glove Touch Mode:
Different tasks require different accessories, and gloves are no exception. Glove touch successfully eliminates the hassle of removing your gloves every time you need to perform an action onscreen.

Water Tolerant Surface:
Designed to work when you need it. Work in humid conditions without an issue with the TD2465’s Water-Resistant Touch mode.

Stylus Compatibility:
The TD2465 is equipped with palm rejection and full support for multiple types of pen. Passive, active pen can be used without the hassle of installing drivers. Click functions are even enabled for pencils.

Advanced Ergonomics:

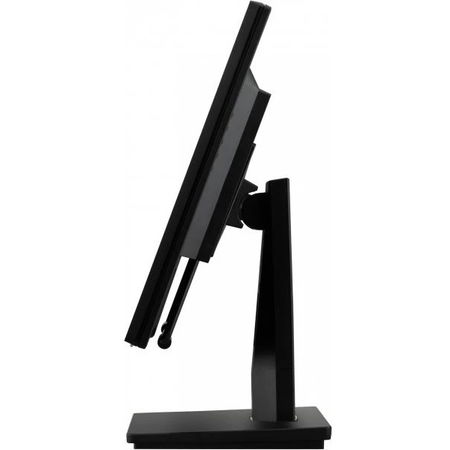

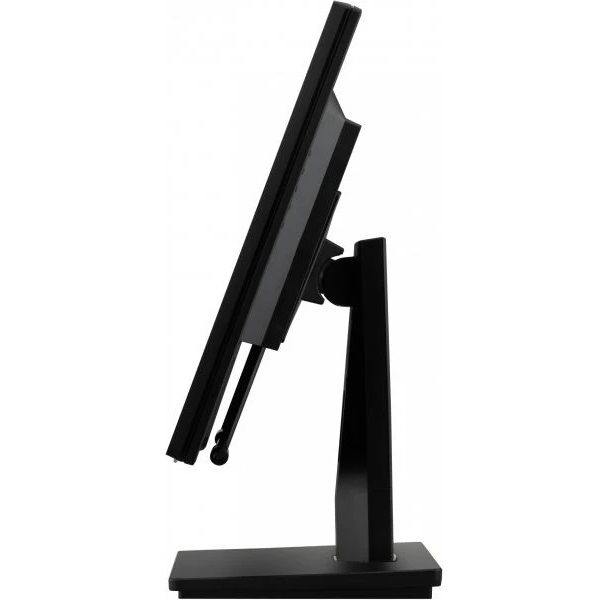

The TD2465 comes complete with two types of monitor stands to ensure you have the setup you need no matter the situation. The book stand is designed with an advanced hinge, allowing the display to be tilted and adjusted between 15 ° ~70°, making it great for diverse applications. The classic stand is perfect for more conventional uses, with a tilt angle of up to 20°.

Easy Kiosk Integration:
The 4-sides frameless design of the TD2465 display allows for seamless and secure attachment to your preferred kiosk design, allowing it to be installed and integrated to best suit any application you require.

Display:

• Display Size (in.): 24
• Viewable Area (in.): 23.8
• Panel Type: VA Technology
• Resolution: 1920 x 1080
• Resolution Type: FHD (Full HD)
• Static Contrast Ratio: 3,000:1 (typ)
• Dynamic Contrast Ratio: 20M:1
• Light Source: LED
• Brightness: 250 cd/m² (typ)
• Colors: 16.7M
• Color Space Support: 8 bit (6 bit + Hi-FRC)
• Aspect Ratio: 16:9
• Response Time (Typical GTG): 7ms
• Response Time (GTG w/OD): 6.969ms
• Response Time (Typical Tr+Tf): 16ms
• Viewing Angles: 178º horizontal, 178º vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: Flat
• Refresh Rate (Hz): 60
• Low Blue Light: Software solution
• Flicker-Free: Yes
• Color Gamut: NTSC: 72% size (Typ)
• sRGB: 102% size (Typ)
• Pixel Size: 0.275 mm (H) x 0.275 mm (V)
• Touch Screen: Projected Capacitive, 10-point multi-touch
• Surface Treatment: Glossy, Hard Coating (7H)
• Cover Glass Thickness: 1.2mm

Compatibility:

• PC Resolution (max): 1920x1080
• Mac Resolution (max): 1920x1080
• PC Operating System: Windows 10/11 certified; macOS tested
• Mac Resolution (min): 1920x1080

Connector:

• VGA: 1
• USB 3.2 Type A Down Stream: 2
• USB 3.2 Type B Up Stream: 1
• 3.5mm Audio In: 1
• 3.5mm Audio Out: 1
• HDMI 1.4: 1
• DisplayPort: 1
• Power in: 3-pin Socket (IEC C14 / CEE22)

Audio:

• Internal Speakers: 2Watts x2

Power:

• Eco Mode (Conserve): 20W
• Eco Mode (optimized): 22W
• Consumption (typical): 24W
• Consumption (max): 26W
• Voltage: AC 100-240V
• Stand-by: 0.5W
• Power Supply: Internal Power Supply

Additional Hardware:

• Kensington Lock Slot: 1
• Cable Organization: Yes

Controls:

• Physical Controls: 1, 2, Up, Down, Power
• On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

Operating Conditions:

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

Wall Mount:

• VESA Compatible: 100 x 100 mm

Input Signal:

• Frequency Horizontal: 24 ~ 82KHz
• Frequency Vertical: 50 ~ 75Hz

Video Input:

• Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
• Analog Sync: Separate/Composite/SOG - RGB Analog

Ergonomics:

• Tilt (Forward/Back): -5º / 20º

Physical Characteristics:

• Net Weight (kg): 5.7
• Net Weight Without Stand (kg): 4.7
• Gross Weight (kg): 7.2
• Dimensions (mm): 550 x 401 x 198
• Dimensions Without Stand (mm): 550 x 326 x 49
