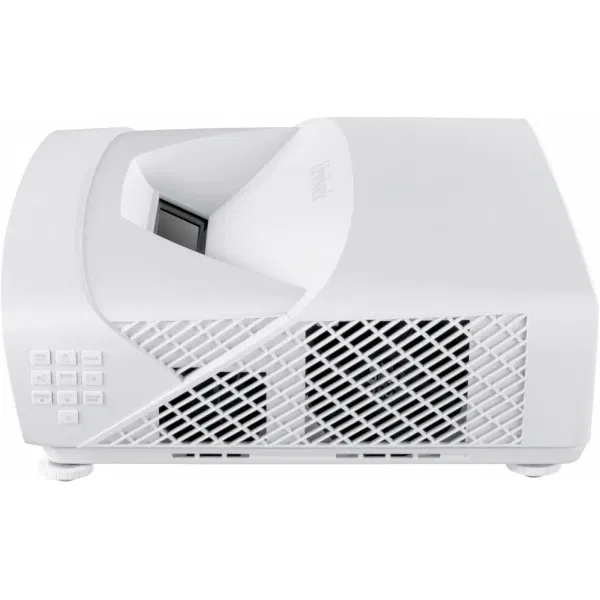

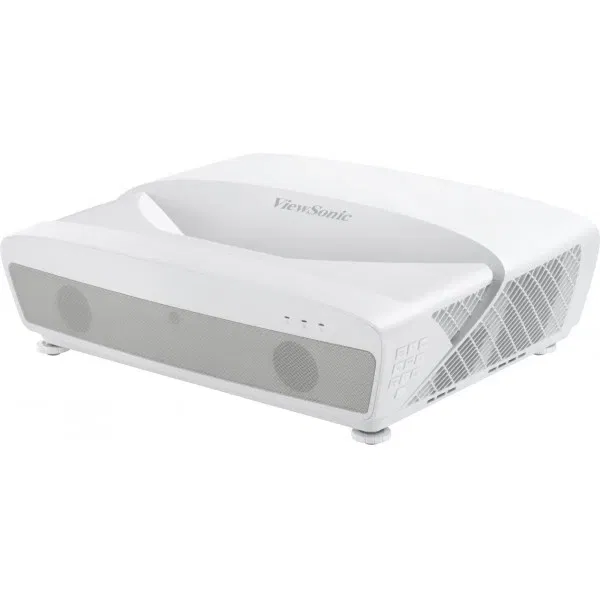

ViewSonic LS831WU 4500 ANSI Lumens 1920x1200 WUXGA Ultra Short Throw Laser Installation Projector

ViewSonic’s LS831WU is an advanced 4,500 ANSI Lumens WUXGA ultra short throw installation projector perfect for public and commercial display applications. With a 0.25 throw ratio, users can easily get 100” screen from only 21 cm away. Screen size can further be expanded to up to 150" at a lower cost-per-inch compared to commercial displays. Adopting the 2nd generation laser phosphor technology, it offers consistent high brightness for a reliable 20,000 hours lifespan. Built-in HDBaseT receiver and 360° projection capability together ensure the ease of use desired. The embedded 20W cube speakers offer powerful audio right out of the box with three fine-tuned audio modes suitable for different application scenarios.

Maximum Space Saving:
The 0.25 ultra-short throw lens allows for projecting a 100” image from only 21 cm away. Save your space!

Upgraded Performance:
Thanks to 2nd generation Laser Phosphor technology, it improves brightness (by 20%), heat-resistance and reduces the product size in addition to excellent color performance, lamp-free design and instant on/off switch.

Reliable Long-term Performance:
The laser technology offers a maintenance-free lifespan up to 20,000 hours (4 hours per day for more than 13 years). And the cooling design enables 24/7 operation without degradation of quality or performance.

Bright Images for Public/Commercial Display:
Packed with 4,500 ANSI Lumens and 3,000,000:1 contrast ratio, this projector can deliver bright and razor-sharp images in open spaces with high ambient light.

Larger Screen Size with Lower Cost-per-inch:
Flexible installation and effortless transportation of the projector to show a 100’’ screen in comparison to 4-way split images on 4 commercial displays that requires more manpower and money.

Cost-effectively Receive AV Signal over Long Distance:
With an integrated HDBT receiver, this projector can receive uncompressed HD video and audio over long distances (100 m for 1080p) via a Cat.5e/6 single network cable.

360° Creative Applications:
The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.

Easy Image Adjustment:
Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

Remote Control of Motorized Focus:
Make your images sharp and clear effortlessly with the motorized focus triggered by commands on the remote control. Free from manual adjustment that requires approaching the ceiling-mounted projector and may disturb the original projection setting.

A Simpler Way to Update Projector Software:
ViewSonic Projector Software Update is available online and enables you to keep your projector firmware up to date easily and conveniently with your laptop and USB cable connection; no need to take your projector into a service center for software updates.

Powerful Audio with 3 Modes:
Three audio modes (speech, music, and movie) powered by 20W cube speakers and DSP chip to deliver the fine-tuned sound performance suitable for different scenarios.

SuperColor Accuracy:
ViewSonic’s proprietary SuperColor Technology displays a wide color range, ensuring that users enjoy a true-to-life color performance in both bright and dark environments without sacrificing image quality.

Vivid and Immersive Display with BrilliantColorPanel:
Engineered with innovative panel technology, the ridged surface of optional BrilliantColorPanel is designed to deflect 90% of ambient light, and keeps the true color displayed on the screen unaffected. Meanwhile, it achieves a contrast ratio 4-times higher than that of an average projector screen and helps to eliminate washed-out images.

Specification:
• Native Resolution: 1920x1200
• DMD Type: DC3
• Brightness: 4500 ANSI Lumens
• Contrast Ratio: 3000000:1
• Display Color: 1.07 Billion Colors
• Light Source Type: Laser Phosphor system
• Light Source Life (Normal): up to 20000
• Lamp Watt: Nichia 67W x2
• Lens: F=2, f=2.44mm
• Projection Offset: 140%±6%
• Throw Ratio: 0.252
• Optical Zoom: Fixed
• Digital Zoom: 0.8x-2.0x
• Image Size: 70"~200"
• Throw Distance: 0.06-0.72m, (100”@0.21m)
• Keystone: H:+10°/-8° , V:+/-10°
• Audible Noise (Normal): 34dB
• Audible Noise (Eco): 29dB
• Input Lag: 16ms
• Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
• HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
• Video Compatibility: NTSC, PAL, SECAM
• Horizontal Frequency: 15K~102KHz
• Vertical Scan Rate: 23~120Hz

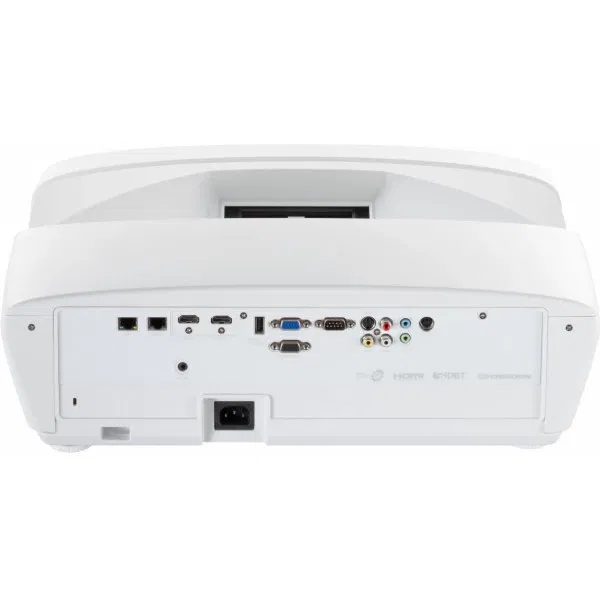

Input:
• Computer in (share with component): 1
• Composite: 1
• S-Video: 1
• HDMI: 2 , (HDMI 2.0 (HDCP 2.2)
• Audio-in (3.5mm): 1
• Audio-in (RCA R/L): 1
• 3D VESA (Sync): 1
• HDBaseT: 1
• RJ45 Input: 1, (LAN control)

Output:
• Monitor out: 1
• Audio out (3.5mm): 1
• Speaker: 10W Cube x 2
• USB Type A (Power): 1 (5V/ 1.5A), (share with service)
• 12V Trigger (3.5mm): 1 (3.5mm)
• Control
• RS232 (DB 9-pin male): 1
• RJ45: 1

Others:
• Power Supply Voltage: 100-240V+/- 10%, 50/60Hz , (AC in)
• Power Consumption: Normal: 504W, Standby: < 0.5W
• Operating Temperature: 0~40℃
• Net Weight: 9.9kg
• Dimensions (WxDxH) with Adjustment Foot: 492x387x157mm
• OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, (23 languages)
