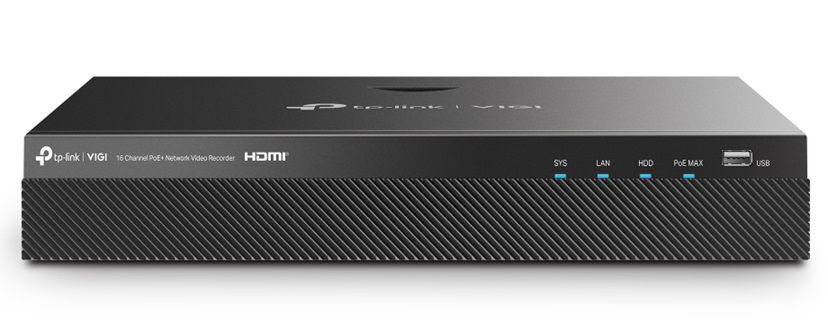

TP-Link VIGI NVR2016H-16P 16 Channel PoE+ Network Video Recorder

Security Never Shuts Down. VIGI NVR2016H-16P 16 Channel PoE+ Network Video Recorder.

• 16-Channel Live View and 4K HDMI Video Output
• 16× 10/100 Mbps PoE+ Ports with 90 W PoE Budget
• Up to 10-ch@1080P (25fps) / 6-ch@3MP (30fps) Decoding Capability
• 16-Channel Synchronous Playback
• 160 Mbps Incoming Bandwidth and 160 Mbps Outgoing Bandwidth
• 2× SATA Interfaces and 1 Up to 16 TB
• H.265+ Compression Technology
• HDMI and VGA Simultaneous Output
• Remote Monitoring

Video and Audio:

• IP Video Input: 16-Channel
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 160 Mbps
• HDMI Output Resolution: 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• Video Output Mode: HDMI/VGA Simultaneous Output
• Multi-View Display: 1/4/6/8/9/16

Decoding:

• Audio Compression: G.711A/G.711U/G.726
• Video Compression: H.265+/H.265/ H.264+/H.264
• Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
  2CIF/CIF/QCIF
• Synchronous Playback: 16-Channel
• Capability: 25fp- 10-ch @ 1080P, 30fps- 2-ch@8MP, 4-ch@5MP, 5-ch@4MP, 6-ch@3MP

Record Management:

• Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording
• Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback
• Backup Mode: Regular Backup, Video Clip Backup
• Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

Network:

• Protocol: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
• Mobile Phone Access: Android, iOS
• Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability: ONVIF Profile S, CGI

External Interface:

• Network Interface: 1x RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
• USB Interface: 1x Front USB 2.0 Port, 1 Rear USB 3.0 Port
• Audio Interface: 1-ch RCA Input; 1-ch RCA Output
• Alarm In/Out: 6/4
• Serial Interface: N/A
• Power: 1× DC Jack
• Reset Button: 1x
• Speaker: N/A
• eSATA: 1x
• HDMI: 1x
• VGA: 1x

Hard Disk:

• SATA: 2 SATA Interfaces
• Capacity: Up to 16 TB Capacity for Each HDD

POE:

• Standard: 802.3at/af Compliant
• Interface: 1- 16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• PoE Budget: 90△ W Available for All PoE+ Ports, 30 W Max per Port

General Alarm:

• Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Abnormal Sound Detection
• Smart Frame
  (Note: The alarm function requires the use of a camera)

Anomaly Alarm:

• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
• Fan Exception
  (Note: The alarm function requires the use of a camera)

Alarm Linkage:

• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
  (Note: The alarm function requires the use of a camera)

General:

• Storage Temperature: -40℃ to 70 °C
• Storage Humidity: 10%~90% RH Non-Condensing
• Working Temperature: NVR: -10–55 °C, Power Adapter: 0–40 °C
• Working Humidity: 10%~90% RH Non-Condensing
• Power Supply: 53.5V DC/2.43A
• Max. Power Consumption: 6.2 W (Without Disk), 40 W (With Disk)
• Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
• Dimensions( W X D X H ): 330 × 285 × 45 m
