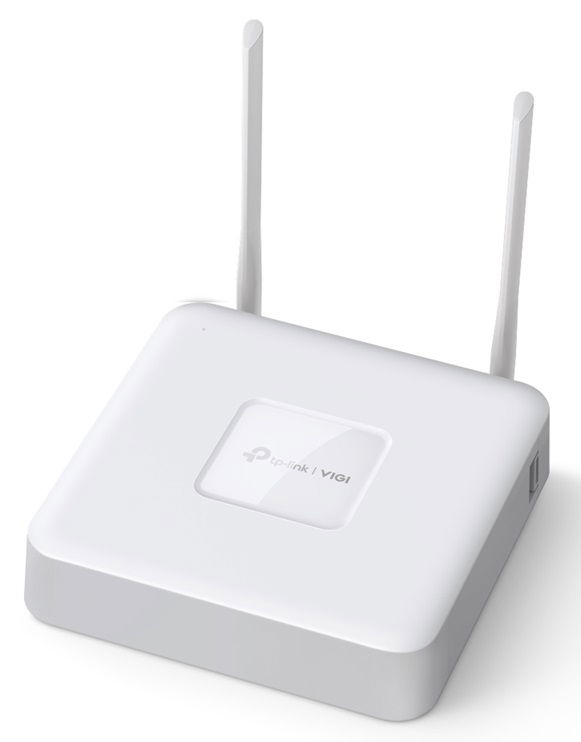

TP-Link VIGI NVR1108H-W 8 Channel Wi-Fi Network Video Recorder

Security Never Shuts Down. 8 Channel Wi-Fi Network Video Recorder.

• 8-Channel Live View and 4K HDMI Video Output
• Built-in Routering Module and Support Wireless Pairing
• Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
• 8-Channel Synchronous Playback
• 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
• 1 SATA Interface (up to 10 TB)
• H.265+ Compression Technology
• HDMI and VGA Simultaneous Output
• Remote Monitoring

Video and Audio:

• IP Video Input: 8-Channel
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 60 Mbps
• HDMI Output Resolution: 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output Resolution: 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode: HDMI/VGA Simultaneous Output
• Multi-View Display: /4/6/8

Decoding:

• Audio Compression: G.711A/G.711U/G.726
• Video Compression: H.265+/H.265/ H.264+/H.264
• Record Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous Playback: 8-Channe
• Capability: 25fps - 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP, 30fps- 4-ch @ 3MP, 2-ch @ 5MP

Record Mode:

• Manual Recording
• Scheduling Recording
• Motion Detection Recording

Playback Mode:

• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback

Backup Mode:

• Regular Backup
• Video Clip Backup

Playback Function:

• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Video Clip
• Export Clip
• Lock Recording
• Audio On/Off

Network:

• Protocol: UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
• Mobile Phone Access: Android, iOS
• Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability: ONVIF Profile S/T/G, CGI

External Interface:

• Network Interface: 1× RJ-45 10/100 Mbps Self-Adaptive WAN/LAN Ethernet Interface, 1× RJ-45 10/100 Mbps Self-Adaptive LAN Ethernet Interface
• USB Interface: 2× USB 2.0
• Audio Interface: 1-ch RCA Input; 1-ch RCA Output
• Alarm In/Out: N/A
• Serial Interface: N/A
• Power: 1× DC Jack
• Reset Button: 1
• Speaker: 1; Real-time Audio Output without Needing Peripherals.
• eSATA: N/A
• HDMI: 1
• VGA: 1

Hard Disk:

• SATA: 1 SATA Interface
• Capacity: Up to 10 TB Capacity for Each HDD

Wireless:

• Standards and Protocols: IEEE 802.11b/g/n
• WiFi Channels: UN: 1-13, US: 1-11
• Wireless Name: SSID Configuration, Radio
• Network Switch: Yes
• Frequency: 2.4 GHz
• Auto Wireless Channel: N/A
• Wireless Statistics: N/A
• Throughput Monitoring: N/A
• Radio Bandwidth: Auto: Yes, 20M: Yes, 40M: Yes
• Wireless Rate: 300Mbps(802.11n), 2 × 2 MIMO
• Wireless Security: WPA-PSK/WPA2-PSK

General Alarm:

• Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Abnormal Sound Detection
• Smart Frame
  (Note: The alarm function requires the use of a camera)

Anomaly Alarm:

• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
  (Note: The alarm function requires the use of a camera)

Alarm Linkage:

• Recording
• White Light Alarm
• Log
• Audible Alarm
  (Note: The alarm function requires the use of a camera)

General:

• Storage Temperature: -40℃ to 70 °C
• Storage Humidity: 10%~90% RH Non-Condensing
• Working Temperature: NVR: -10℃ to 55 °C, Power Adapter: 0℃ to 40 °C
• Working Humidity: 10%~90% RH Non-Condensing
• External Power Supply: DC 12V/2A
• Max. Power Consumption: 5.7 W (Without Disk), 16.3 W (Without Disk)
• Certifications: BSMI, CE, HDMI, JRF, KC, NCC, NTRA, VCCI
• Dimensions( W X D X H ): 200.3 × 200.3 × 43 m
