Key Details:
- Model: T1700X-16TS
- Part #: AW00291
- Warranty: 3 Years
- Brand: TP Link
Ask Our Experts:

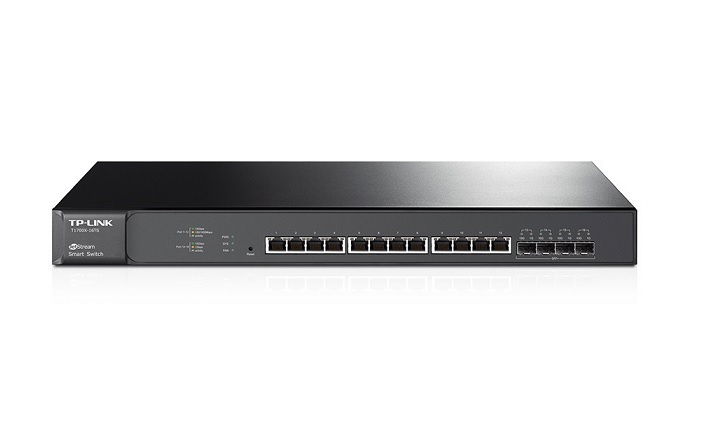

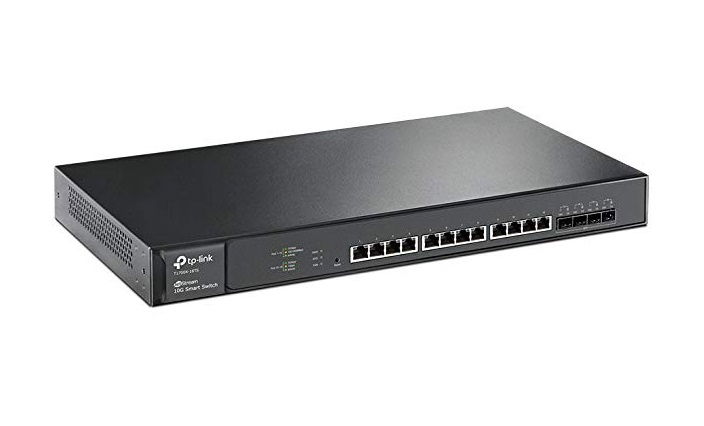

TP-Link T1700X-16TS JetStream 12 Port 10GBase-T Smart Switch with 4 10G SFP+Slots
In a world of expanding enterprises and growing virtualization, cloud-based services and applications, like VoIP, HD streaming video, and IP surveillance, SMB networks need to evolve beyond simple reliability to provide increased scalability, higher bandwidth, and enhanced performance. TP-LINK’s new T1700 Series 10G Smart Switches represent an ideal solution that meets these requirements. The series includes the T1700X-16TS Full 10-Gigabit Smart Switch which provides high levels of performance, scalability, and cost-effectiveness that SMBs require from their 10G networking solutions.
- Equipped with 12 10GBase-T RJ45 Ports and 4 10G SFP+ Fiber Ports, Providing 320Gbps Switching Capacity
- 10GBase -T Technology provides a cost-effective method for migrating from current network to 10G Ethernet by utilizing existing CAT5e/CAT6 short connections (up to 55m) and CAT6A/CAT7 connections.
- L2+ feature, Static Routing help route internal traffic for more efficient use of network resources
- Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
- Comprehensive IPv6 support for management, QoS and ACL
- WEB/CLI managed modes, SNMP, RMON enhance management
- Dual Firmware Image improves reliability and up-time of your network
- Interface: 12x 10GBase-T Ethernet Ports, (Auto Negotiation/Auto MDI/MDIX), 4x 10GbE SFP+Slots
- Fan Quantity: Two Smart Fans
- Switching Capacity: up to 320Gbps
- MAC Address Table: 16K
- Packet Forwarding Rate: Up to 238.1Mpps for a standalone switch
- Packet Buffer Memory: 2MB
- Jumbo Frame: 9KB
- Number of Static Routes: 32 IPv4
- Number of IP Interfaces: 16
- Power Supply: 100-240V, 50/60Hz
- Max Power Consumption 76.58W
- IPv6: Dual IPv4/IPv6 stack, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6
- VLAN: Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs), MAC/Protocol-based VLAN, Private VLAN
- Dimensions (W x D x H): 440 x 220 x 44 mm
- Windows XP, Vista, 7, 8, 8.1
- Mac OS
- Netware
- UNIX
- Linux
- T1700X-16TS
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
- Rubber Feet
