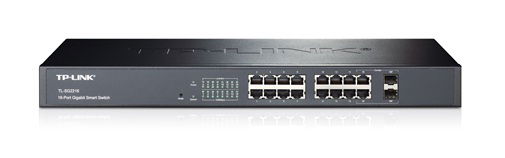

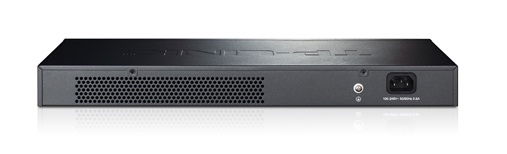

TP-Link TL-SG2216 16-Port Gigabit Smart Switch with 2 Combo SFP Slots

TP-LINK Gigabit Smart Switch TL-SG2216 is equipped with 16 gigabit RJ45 ports and 2 combo SFP slots. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features. TP-LINK Gigabit Smart Switch TL-SG2216 is a cost-eff­ective product solution for the small and medium business. TL-SG2216 has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch and gigabit capability, TP-LINK Gigabit Smart Switch TL-SG2216 provides you the ideal access-edge solution.

• Gigabit Ethernet connections on all ports provide full speed of data transferring
• Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
• L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
• WEB/CLI managed modes, SNMP, RMON bring abundant management features

Hardware:

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
• Interface: 16 10/100/1000Mbps RJ45 Ports, (Auto Negotiation/Auto MDI/MDIX), 2 Combo 100/1000Mbps SFP Slots
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m), 100BASE-FX:MMF,SMF, 1000BASE-X: MMF, SMF
• Dimensions (W X D X H): 440 x 180 x 44mm
• Fan Quantity: Fanless
• Power Supply: 100~240VAC, 50/60Hz

Performance:

• Bandwidth/Backplane: 32Gbps
• MAC Address Table: 8k
• Packet Forwarding Rate: 23.8Mpps
• Jumbo Frame: 10240 Bytes

Software:

• Quality of Service: Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling: SP, WRR, SP+WRR, Port/Flow-based Rate Limiting
• L2 Features: IGMP Snooping V1/V2/V3, LAG(Up to 6 aggregation groups,
• containing 4 ports per group), Spanning Tree STP/RSTP/MSTP, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control
• VLAN: Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
• Security: Port Security, Broadcast/Multicast/Unknown-unicast Storm Control
• Management: Web-based GUI and CLI management, SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs, RMON (1, 2, 3, 9 groups), CPU Monitoring, Port Mirroring, Firmware Upgrade: Web System Diagnose: VCT, SYSLOG & Public MIBS

• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.

• TL-SG2216
• Power Cord
• Installation Guide
• Resource CD
• Rackmount Kit
• Rubber Feet
