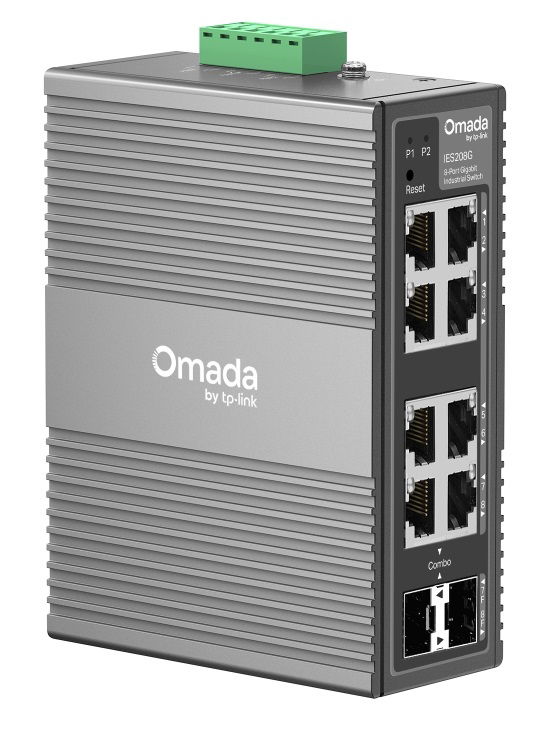

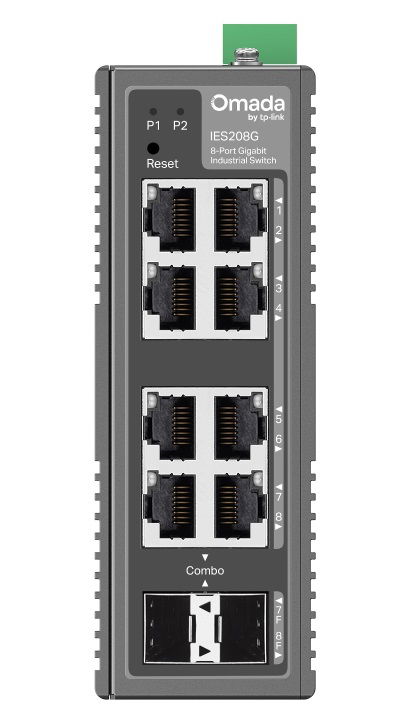

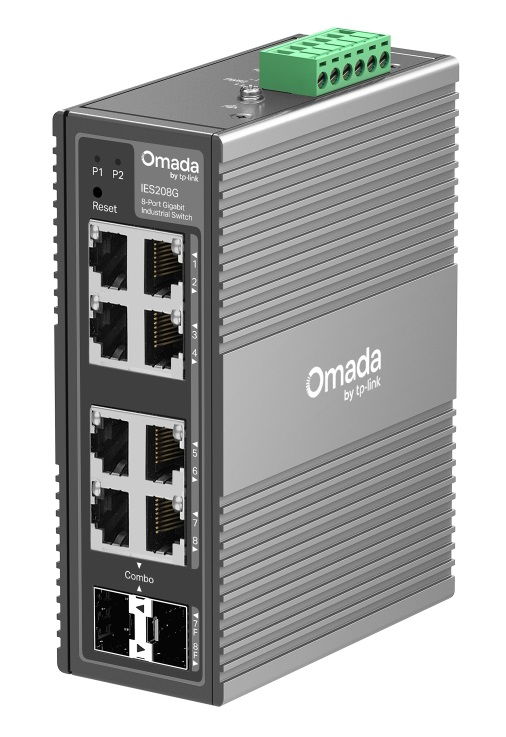

TP-Link IES208G Omada 8-Port Gigabit Industrial Easy Managed Switch

Omada Industrial 8-Port Gigabit Easy Managed Switch.

• 8x Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
• Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
• Abundant Features: VLAN, QoS, and STP/RSTP
• Centralised Cloud Management via the Web or Omada App
• Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

Hardware:

• Interface: 6× 10/100/1000 Mbps RJ45 Ports, 2× Gigabit SFP/RJ45 Combo Slots, Auto-Negotiation/Auto MDI/MDIX
• Fan Quantity: Fanless
• Installation: DIN-rail mounting, Wall mounting
• Power Supply: 9.6-60V 1+1 Redundant DC Power Input
• Dimensions ( W x D x H ): 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
• Surge Protection: ±6 kV in common mode for Ethernet ports, ±4 kV in common mode for DC power input ports

Performance:

• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4 Mbit
• Jumbo Frame: 15 KB

Quality of Service:

• 802.1p DSCP Priority
• 8 Priority Queues
• Priority Schedule Mode: WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control: Port-Based Rate Limit
• Storm Control: Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control

L2 Features:

• Link Aggregation: Static Link Aggregation, Up to 2 aggregation groups and up to 4 ports per group
• Loopback Detection
• Flow Control: 802.3x Flow Control
• Mirroring: Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both
• Port Statistics: Port Mirror Status, Traffic Statistics
• 802.1ab LLDP
• Spanning Tree: STP (802.1d), RSTP (802.1w)

L2 Multicast:

• IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave

VLAN:

• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN: Max 32 VLAN Groups, 4K VID

Management:

• Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
• Management Features: Web-based GUI, DHCP Client, Cable Diagnostics, Digital Diagnostic Monitoring (DDM), Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Unified Configuration

Others:

• Certification: FCC, CE, RoHS
• Operating Temperature: -40℃~75℃ (-40℉~167℉)
• Storage Temperature: -40℃~85℃ (-40℉~185℉)
• Operating Humidity: 5%~95% non-condensing
• Storage Humidity: 5%~95% non-condensing
