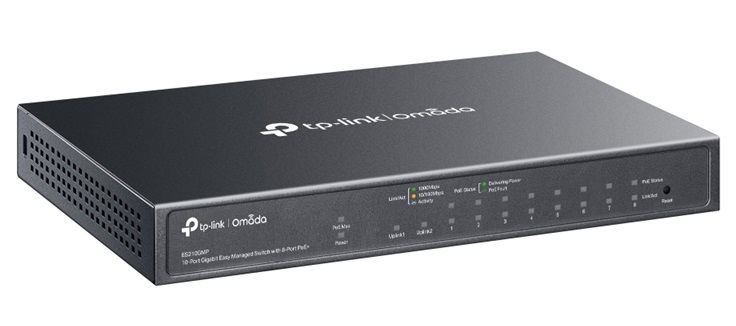

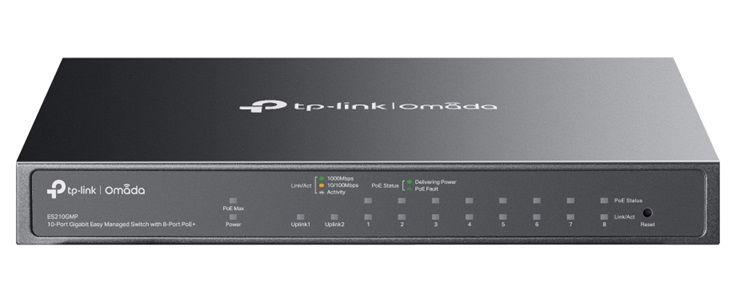

TP-Link ES210GMP Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

• 8x Gigabit 802.3at/af-compliant PoE+ RJ45 ports
• 1x Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
• 123W Power Budget, with up to 30W for each PoE port
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralised Cloud Management via the web or the Omada app
• Up to 250m PoE, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design

Hardware:

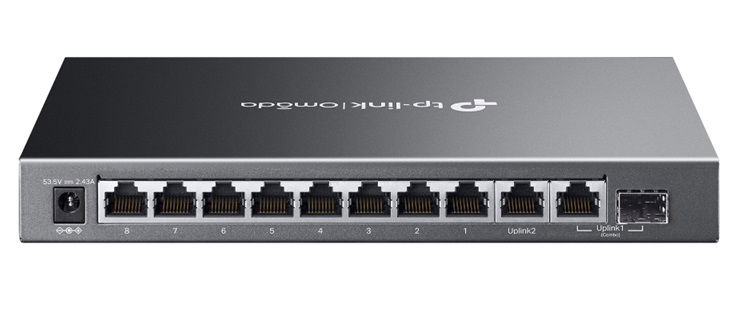

• Interface: 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE), 1× 10/100/1000 Mbps RJ45 Port, 1× Gigabit SFP/RJ45 Combo Port, Auto-Negotiation/Auto MDI/MDIX
• Fan Quantity: Fanless
• Installation: Desktop, Wall mounting
• Physical Security Lock: YEs
• Power Supply: DC Power Adapter (Output: 53.5 VDC/ 2.43 A)
• PoE Ports (RJ45): Standard: 802.3af PoE and 802.3at PoE+ compliant, PoE Ports: 8 ports, PoE Budget: 123W available for all PoE+ ports, 30W max per port, PoE Auto Recovery, Up to 250m PoE transmission distance
• Dimensions ( W x D x H ): 8.2×4.9×1.0 in (209×126×26 mm)
• Surge Protection: ±6kV

Performance:

• Switching Capacity: 20 Gbps
• Packet Forwarding Rate: 14.88 Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4 Mbit
• Jumbo Frame: 15 KB

Quality of Service:

• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode: WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control: Port-Based Rating Limit
• Storm Control: Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control

L2 Features:

• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control: 802.3x Flow Control
• Mirroring: Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both
• Port Statistics, Port Mirror Status, Traffic Statistics
• 802.1ab LLDP

L2 Multicast:

• IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave

VLAN:

• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN: Max 32 VLAN Groups, 4K VID

Management:

• Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
• Management Features: Web-based GUI, DHCP Client, Cable Diagnostics, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Unified Configuration

Others:

• Certification: FCC, CE, RoHS
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• torage Humidity: 5%~90% non-condensing
