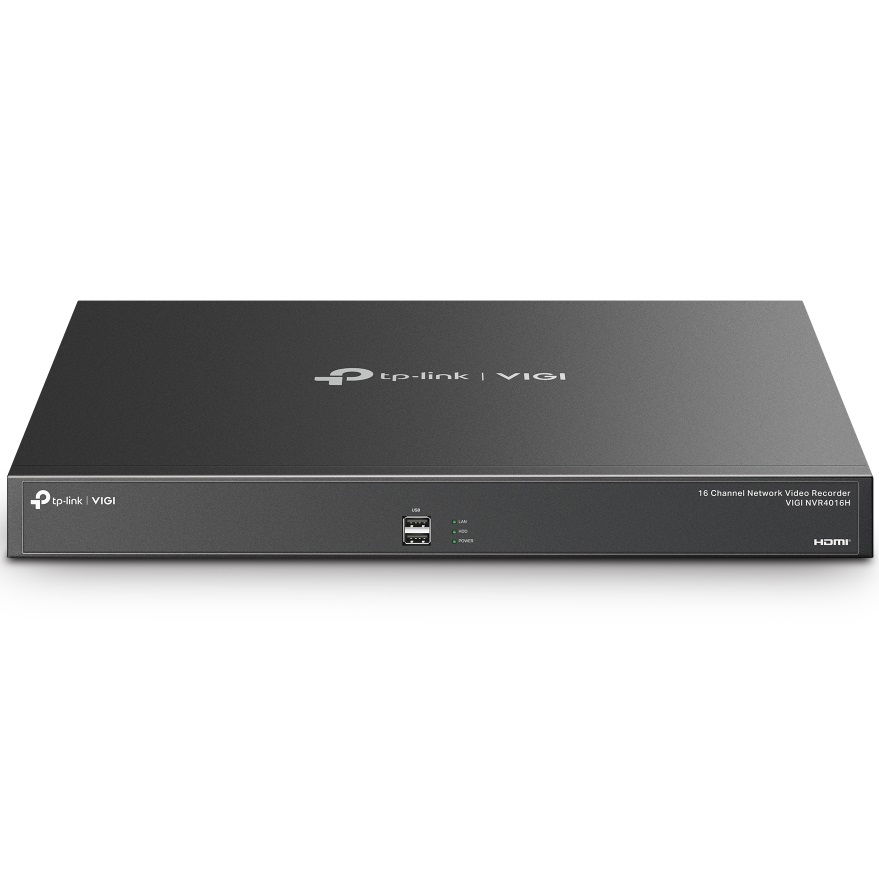

TP-Link VIGI NVR4016H 16 Channel Network Video Recorder

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

• 16-Channel Live View and 4K HDMI Video Output
• Up to 10-ch @ 3MP (25fps) / 16-ch @ 1080P (25fps) Decoding Capability
• 16-Channel Synchronous Playback
• 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
• 4× SATA Interfaces and 1 Up to 16 TB
• H.265+ Compression Technology
• 2 HDMI and 1 VGA Video Output
• Remote Monitoring

Video and Audio:

• IP Video Input: 16-Channel
• Incoming Bandwidth: 320 Mbps
• Outgoing Bandwidth: 320 Mbps
• HDMI Output Resolution: 2 Channels
• HDMI1 Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• HDMI2 Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• Video Output Mode: HDMI1/HDMI2 Independent output, HDMI1/VGA Independent output. Note: HDMI2 and VGA cannot operate simultaneously. If both connections are made, HDMI2 will take precedence and function as the primary output.
• Multi-View Display: 1,4,6,8,9,16

Decoding:

• Audio Compression: G.711A/G.711U/G.726
• Video Compression: H.265+/H.265/ H.264+/H.264
• Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback: 16-Channel
• Capability: 25fps - 10-ch@3MP、16-ch@1080P; 30fps - 4-ch@8MP、6-ch@5MP、8-ch@4MP

Record Management:

• Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording
• Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback
• Backup Mode: Regular Backup, Video Clip Backup
• Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

Network:

• Protocol: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
• Mobile Phone Access: Android, iOS
• Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability: ONVIF Profile S, CGI

External Interface:

• Network Interface: 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
• USB Interface: 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port
• Audio Interface: 1-ch RCA Input; 1-ch RCA Output
• Alarm In/Out: 16/4
• Serial Interface: 1, RS232
• Power: 1× AC Jack
• Reset Button: 1
• Speaker: N/A
• eSATA: 1
• HDMI: 2
• VGA: 1

Hard Disk:

• SATA: 4 SATA Interfaces
• Capacity: Up to 16 TB Capacity for Each HDD

Alarm:

• General Alarm: Motion Detection, Video Tampering, Scene Change Detection, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Abnormal Sound Detection, Smart Frame. Note: The alarm function requires the use of a camera.
• Anomaly Alarm: Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception. Note: The alarm function requires the use of a camera.
• Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm. Note: The alarm function requires the use of a camera.

General:

• Storage Temperature: -40–70 °C
• Storage Humidity: 10%~90% RH Non-Condensing
• Working Temperature: NVR: -10–55 °C
• Working Humidity: 10%~90% RH Non-Condensing
• Dimensions (W X D X H): 440 × 330 × 44 mm
• Net Weight: 4.0 Kg
• Gross Weight: 5.0 Kg
• Power Supply: 100-240 VAC, 50 to 60Hz, 1.5A
• Max. Power Consumption: 5.5 W (Without Disk), 45 W (With Disk)

• VIGI Network Video Recorder
• Mouse
• Installation Guide
• Power Cord
• HDD Power Cables
• HDD Data Cables
• Terminal Blocks
• Mounting Brackets
• Screws
• Rubber Feet
