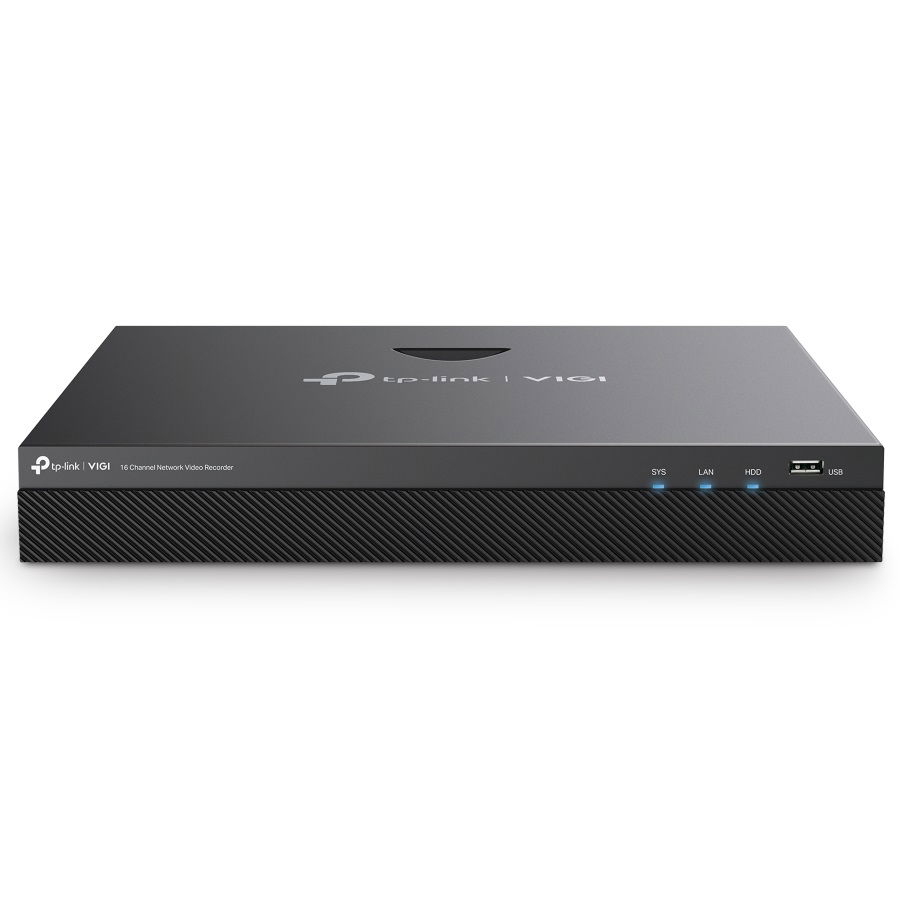

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build - whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

• 16-Channel Live View and 4K HDMI Video Output
• Up to 2-ch@8MP (25fps)/4-ch@4MP (25fps)/8-ch@2MP (25fps) Decoding Capability
• 16-Channel Synchronous Playback†
• 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
• 2× SATA Interfaces and 1 Up to 16 TB
• H.265+ Compression Technology
• HDMI and VGA Simultaneous Output
• Remote Monitoring

Video and Audio:

• IP Video Input: 16-Channel
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 60 Mbps
• HDMI Output Resolution: 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• Video Output Mode: HDMI/VGA Simultaneous Output
• Multi-View Display: 1/4/6/8/9/16

Decoding:

• Audio Compression: G.711A/G.711U/G.726
• Video Compression: H.265+/H.265/ H.264+/H.264
• Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback: 16-Channel
• Capability: 25fps - 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP; 30fps - 4-ch @ 3MP, 2-ch @ 5MP

Record Management:

• Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording
• Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback
• Backup Mode: Regular Backup, Video Clip Backup
• Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

Network:

• Protocol: UPnP (Plug and Play), NTP (Network Timing)
• Mobile Phone Access: Android, iOS
• Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability: ONVIF, CGI

External Interface:

• Network Interface: 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• USB Interface: 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
• Audio Interface: 1, Audio In; 1, Audio Out
• Alarm In/Out: N/A
• Serial Interface: N/A
• Power: 1× DC Jack
• Reset Button: 1
• Speaker: N/A
• eSATA: 1
• HDMI: 1
• VGA: 1

Hard Disk:

• SATA: 2 SATA Interfaces
• Capacity: Up to 16 TB Capacity for Each HDD

Alarm:

• General Alarm: Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle - Detection, Human Detection, Smart Frame
• Anomaly Alarm: Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
• Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm

General:

• Storage Temperature: -40–70 °C
• Storage Humidity: 10%~90% RH Non-Condensing
• Working Temperature NVR: -10–55 °C
• Power Adapter: 0–40 °C
• Working Humidity: 10%~90% RH Non-Condensing
• Dimensions (W X D X H): 330 × 285 × 45 mm
• Net Weight: 1.9 Kg
• Gross Weight: 3.2 Kg
• Power Supply: 12V DC/3.3A
• Max. Power Consumption: 4.78 W (Without Disk), 24.16 W (With Disk)

• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Quick Installation Guide
