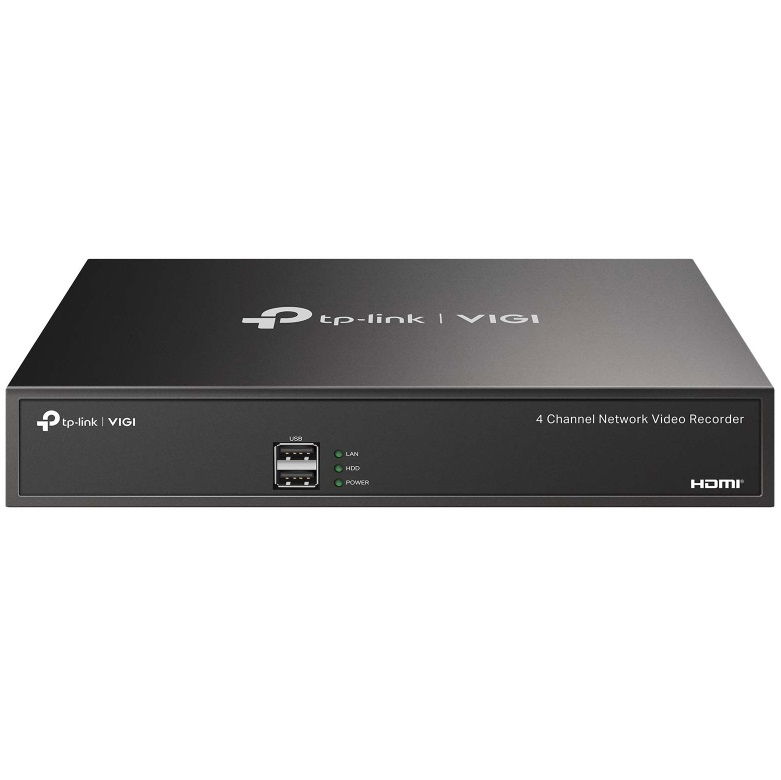

TP-Link VIGI NVR1004H 4 Channel Network Video Recorder

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build - whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

• 4-Channel Live View and 4K HDMI Video Output
• 2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability
• 4-Channel Synchronous Playback†
• 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
• 1 SATA Interface (up to 10 TB) *
• H.265+ Compression Technology
• HDMI and VGA Simultaneous Output
• Remote Monitoring

Video and Audio:

• IP Video Input: 4-Channel
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 60 Mbps
• HDMI Output Resolution: 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output Resolution: 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode: HDMI/VGA Simultaneous Output
• Multi-View Display: 1/4

Decoding:

• Audio Compression: G.711A/G.711U/G.726
• Video Compression: H.265+/H.265/ H.264+/H.264
• Record Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous Playback: 4-Channel
• Capability: 25fps - 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP; 30fps - 4-ch @ 3MP, 2-ch @ 5MP

Record Management:

• Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording
• Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback
• Backup Mode: Regular Backup, Video Clip Backup
• Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

Network:

• Protocol: UPnP (Plug and Play), NTP (Network Timing)
• Mobile Phone Access: Android, iOS
• Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability: ONVIF, CGI

External Interface:

• Network Interface: 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• USB Interface: 2× USB 2.0
• Audio Interface: 1, Audio In; 1, Audio Out
• Alarm In/Out: N/A
• Serial Interface: N/A
• Power: 1× DC Jack
• Reset Button: 1
• Speaker: N/A
• eSATA: N/A
• HDMI: 1
• VGA: 1

Hard Disk:

• SATA: 1 SATA Interface
• Capacity: Up to 10 TB Capacity for Each HDD

Alarm:

• General Alarm: Motion Detection, Video Tampering, Scene Change Detection, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Abnormal Sound Detection, Smart Frame. Note: The alarm function requires the use of a camera.
• Anomaly Alarm: Video Loss, Offline and IP Conflict, Disk Exception, Login Exception
  Note: The alarm function requires the use of a camera.
• Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm. Note: The alarm function requires the use of a camera.

General:

• Storage Temperature: -40–70 °C
• Storage Humidity: 10%~90% RH Non-Condensing
• Working Temperature: NVR: -10–55 °C; Power Adapter: 0–40 °C
• Working Humidity 10%~90% RH Non-Condensing
• Dimensions (W X D X H): 246.2 × 148.2 × 45 mm
• External Power Supply: DC 12V/1.5A
• Net Weight: 0.59 kg
• Gross Weight: 0.95 kg
• Max. Power Consumption: 4.25 W (Without Disk)

• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Rubber Feet
• Quick Installation Guide
