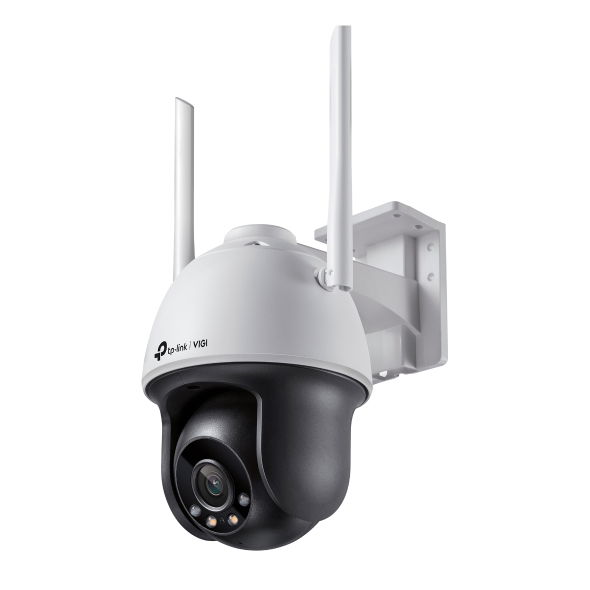

TP-Link VIGI C540-W 4MP 4mm Outdoor Full-Colour Fixed Lens Pan Tilt Network Camera

Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property. The camera comes with 4MP - more than enough pixels to pick up some of the more discrete details.

24h Full-Color:
Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.

Powerful Pan Tilt:
Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.

Wireless Outdoor Connection:
Simple and quick deployment with Wi-Fi signals.

Waterproof:
Reliable IP66 for stable outdoor performance.

Smart Detection (motion detection, area intrusion, line-crossing, video tampering):
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

H.265+:
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

VIGI App:
Manage your security from the palm of your hand with the VIGI app.

Camera:

• Image Sensor: 1/3” Progressive Scan CMOS
• Minimum Illumination: 0 lux with IR/white Light
• Day/Night Mechanism: IR Cut Filter
• Lens: Fixed focal lens (4 mm)
• Aperture: F1.6
• Lens Mount: M12
• Viewing Angle: 79°/43°/93°(H/V/D)
• Digital Zoom: Yes
• IR Working Distance: 30m
• Illumination Distance: 30m
• Pan/Tilt Range: Pan: 0° to 350°, Tilt: 0° to 120°
• Weatherproof Rating: IP66
• Digital Noise Reduction: 3D DNR
• WDR: DWDR

Network:

• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• Wireless Rate: 11 Mbps (802.11b), 54 Mbps (802.11g), 150 Mbps (802.11n)
• Frequency: 2.4 GHz
• Wireless Security WPA/WPA2-PSK
• API: ONVIF
• Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

Interfaces:

• Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
• Audio Input: Built-in Microphone
• Audio Output: Built-in Speaker
• Button: Reset Button
• On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

Video/Image:

• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
• Frame Rate & Resolutions: Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080; Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 640x480, 352x288, 320x240
• Max. Resolution: 4MP
• Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
• Image Enhancement: BLC/3D DNR/Prevent Overexposure to Infrared Light
• Video Bit Rate: Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps

Smart Feature-Set:

• Smart Event: Area Intrusion Detection, Line-Crossing Detection, Human Detection
• Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal login)
• Linkage Method: Trigger Notification: ONVIF, HTTPS
• Region of Interest: 1 Region

General:

• Operating Temperature: -30–60 °C
• Dimensions (H X W X D): 120 x 172 x 198 mm
• Material: Plastic
• General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
• Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug
• Power Consumption: 12V DC: Max 15.5W
• Certifications: CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Power Adapter
• Mounting Accessories
