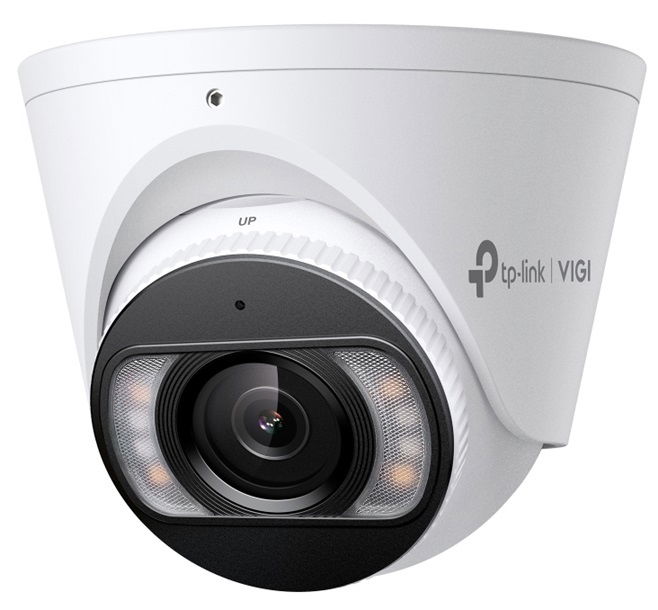

TP-Link VIGI C485 2,8mm 4K 8MP IR Full-Colour Turret Network Camera

4K Empowered. Security Reinvented. 8MP Full-Color Turret Network Camera.

Human & Vehicle Classification:
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

True WDR:
By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR:
Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

Efficient H.265+ Compression Technology:
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Camera:

• Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter: Yes
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto

Lens:

• Type: Fixed Focal Lens
• Focal Length: 2.8 mm
• Aperture: F1.6
• Horizontal FOV: 111.4°
• Vertical FOV: 58.8°
• Diagonal FOV: 134°
• Lens Mount: M12*P 0.5
• DORI Distance: Detect: 85 m (278 ft), Observe: 35 m (116 ft), Recognize: 17 m (56 ft), Identify: 8 m (28 ft)

Angle Adjustment (Manual):

• Pan: 0° to 360°
• Tilt: 0° to 85°
• Rotation: 0° to 360°

Illuminator:

• IR LED Quantity: 4
• IR LED Range: 30m
• IR LED Wavelength: 850nm
• White LED Quantity: 4
• White LED Range: 30m
• Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Video:

• Max. Resolution: 3840 X 2160
• Main Stream Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Main Stream Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Main Stream Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720
• Sub-Stream Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Sub-Stream Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Sub-Stream Resolution: 704x576,640x480, 352x288, 320x240
• Bit Rate Control: CBR, VBR
• Video Compression Main Stream: H.265+/H.265/H.264+/H.264
• Video Compression Sub-Stream: H.265/H.264
• H.264 Type: High Profile
• H.264+: Main Stream Supported
• H.265 Type: Main Profile
• H.265+: Main Stream Supported
• Video Bit Rate Main Stream: 256 Kbps to 6 Mbps
• Video Bit Rate Sub-Stream: 64 Kbps to 512 Kbps

Image:

• Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: 120 dB
• SNR: ≥ 52 dB
• Image Parameters Switch: Yes
• Privacy Mask: Up to 4 Masks
• ROI: 1 Region
• OSD Setting: Yes

Audio:

• Audio Communication: Two-Way Audio
• Audio Input: Yes
• Audio Output: Yes
• Audio Compression: Yes
• Audio Sampling Rate: 8KHz
• Environment Noise Filtering: Yes
• Audio Bit Rate: 64 Kbps(G.711 alaw)

Network:

• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF: Yes
• API: Open Network Video Interface (Profile S)
• Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
• Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS
• Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
• Cloud: Yes
• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Alarm and Event Management:

• Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Smart Frame, People Detection, Vehicle Detection
• Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
• Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
• Linkage Method: N/A
• Output Notification: Message Push

Interfaces:

• Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm: N/A
• Reset Button: Yes
• Power: DC Power Port
• On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
• Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
• Built-in Speaker: Yes
• Audio: N/A

General:

• Operating Temperature: -30–60 °C
• Storage Temperature: -40–60 °C
• Operating Humidity: 95% or Less (Non-Condensing)
• Storage Humidity: 95% or Less (Non-Condensing)
• Material: Metal
• Power Supply: 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max. 12.5 W
• Protection: IP67
• Dimensions (LxWxH): 111 × 111 × 83.7 mm
• Net Weight: 0.48 Kg
