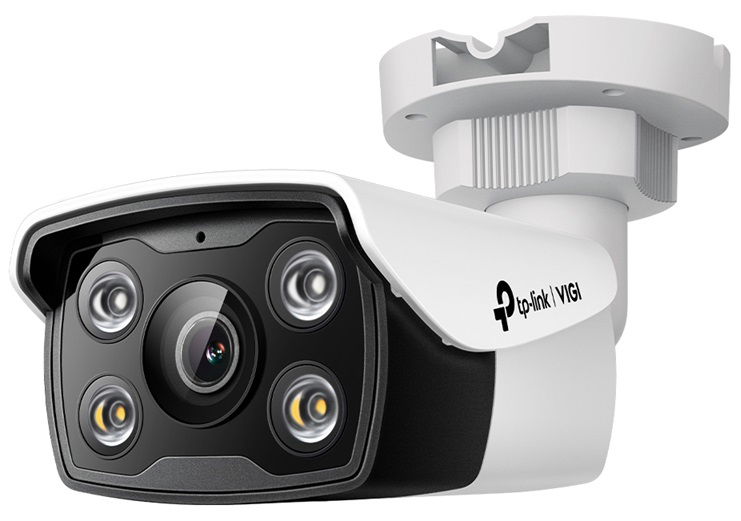

TP-Link VIGI C350 4mm 5MP Full-Colour IR Bullet Network Camera

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 5MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

SmartVid-Smart Video Enhancement:
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.

Human & Vehicle Classification:
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Comprehensive AI Detection with Pre-Set Rules Supported:
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

People & Vehicle Analytics:
Quickly find people and vehicles of interest using a series of attributes.

Active Defense:
Warn potential intruders instantly with sound and light when abnormal events.

Every Event is Under Your Control:
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

Remote Management:
Take full control over your security anytime and anywhere on the VIGI app or client.

One system. Full security:
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Camera:

• Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter: Yes
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto

Lens:

• Type: Fixed Focal Lens
• Focal Length: 4 mm
• Aperture: F1.6
• FOV: 4mm: Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
• Lens Mount: M12*P 0.5

DORI Distance: 4 mm:

• Detect: 80 m (262 ft)
• Observe: 33 m (109 ft)
• Recognize: 16 m (52 ft)
• Identify: 8 m (26 ft)

Angle Adjustment (Manual):

• Range: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Illuminator:

• IR LED: Quantity: 2; Range: 30m; Wavelength: 850nm
• White LED: Quantity: 2; Range: 30m
• Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Video:

• Max. Resolution: 2880 X 1620
• Main Stream: Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Main Stream: Frame Rate：60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:: 2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
• Sub-Stream: Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Sub-Stream: Frame Rate: 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 704x576,640x480, 352x288, 320x240
• Bit Rate Control: CBR, VBR
• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
• Video Compression: Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Main Stream Supported
• H.265 Type: Main Profile△
• H.265+: Main Stream Supported△
• Video Bit Rate: Main Stream: 256 Kbps to 6 Mbps
• Video Bit Rate: Sub-Stream: 64 Kbps to 512 Kbps

Image:

• Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC - Adjustable by Client Software
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: 120 dB
• SNR: ≥ 52 dB
• Image Parameters Switch: Yes
• Privacy Mask: Up to 4 Masks
• ROI: 1 Region
• OSD Setting: Yes

Audio:

• Audio Communication: Two-Way Audio
• Audio Input: Yes
• Audio Output: Yes
• Audio Compression: Yes
• Audio Sampling Rate: 8KHz
• Environment Noise Filtering: Yes
• Audio Bit Rate: 64 Kbps(G.711 alaw)

Network:

• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF: Yes
• API: Open Network Video Interface (Profile S)
• Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
• Client: VIGI App, VIGI Security Manager
• Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
• Cloud: Yes
• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Alarm and Event Management:

• Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Scene Change Detection
• Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
• Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
• Linkage Method: N/A
• Output Notification: Message Push

Deep Learning Function:

• People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
• Face Capture: N/A
• Face Comparison: N/A

Interfaces:

• Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm: N/A
• Reset Button: Yes
• Power: DC Power Port
• On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
• Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
• Built-in Speaker: Yes
• Audio: N/A

General:

• Operating Temperature: -30–60 °C
• Storage Temperature: -40–60 °C
• Operating Humidity: 95% or Less (Non-Condensing)
• Storage Humidity: 95% or Less (Non-Condensing)
• Material: Plastic
• Power Supply: 12V DC ± 5%, Max. 9 W, 5.5 mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max. 10.5 W
• Protection: IP67
• Dimensions (LxWxH): 78.42× 186.88× 71.55 mm
• Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IC
