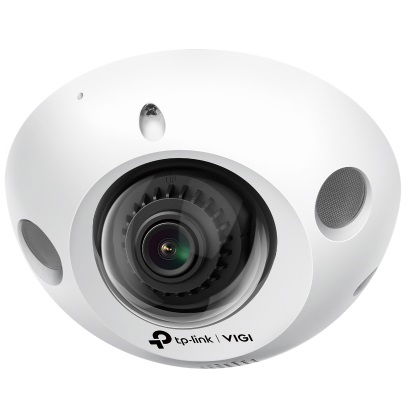

TP-Link VIGI C230I Mini 3MP 2.8mm Outdoor IR Dome Network Camera

The VIGI C230I Mini camera comes with 3MP - more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification:
Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection:
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

Small but compact with wide views:
With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.

IK08 Vandal-Proof:
Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.

H.265+:
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Smart Video Enhancement:
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Corridor Mode:
Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.

Camera:

• Image Sensor: 1/2.8” Progressive Scan CMOS
• Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
• Day/Night Mechanism: IR Cut Filter
• Lens: 2.8 mm
• Aperture: F1.6
• Lens Mount: M12
• Viewing Angle: 106.9°/56.9°/127.9°(H/V/D)
• IR Working Distance: 30m
• Digital Noise Reduction: 3D DNR
• WDR: DWDR

Network:

• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• API: ONVIF
• Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web

Interfaces:

• Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
• Button: Reset Button
• On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
• Built-in Microphone: Yes
• Built-in Speaker: Yes

Video/Image:

• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
• Frame Rate & Resolutions: Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720; Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 704x576, 640x480, 352x288, 320x240
• Max. Resolution: 3MP (2304 x 1296)
• Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Video Bit Rate: 64 Kbps to 4 Mbps
• Day/Night Switch: Day/Night/Auto/Schedule

Smart Feature-Set:

• Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
• Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
• Linkage Method: Trigger Notification: ONVIF, HTTPS
• Region of Interest: 1 Region

General:

• Operating Temperature: -30–60 °C
• Dimensions (H X W X D): 114 x 114 x 58 mm
• Material: Plastic
• General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
• Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0)
• Power Consumption: 12V DC: Max 7.5W; PoE: Class 0
• Vandal Resistant: IK08
• Certifications: CE/VCCI/BSMI/KC/ONVIF

• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories
• Mounting Template
