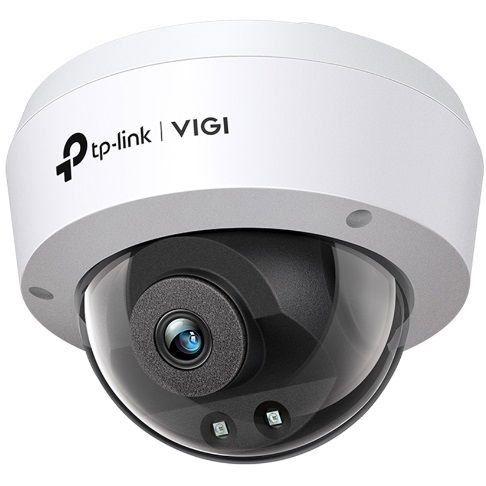

TP-Link VIGI C220I 2MP 4mm Outdoor IR Fixed Lens Dome Network Camera

The VIGI C220I camera comes with 2MP - more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification:
Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection:
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

IK10 Vandal-Proof & IP67 Waterproof:
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

H.265+:
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Smart Video Enhancement:
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Simplified Deployment with PoE:
Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
2.8/4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C220I comes with two different lens types to better suit your security needs.

Flexible Management:
Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.

Camera:

• Image Sensor: 1/3” Progressive Scan CMOS
• Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
• Day/Night Mechanism: IR Cut Filter
• Lens: 4 mm
• Aperture: F2.0
• Lens Mount: M12
• Viewing Angle: 74.6°/41.3°/88.1°(H/V/D)
• IR Working Distance: 30m
• Weatherproof Rating: IP67
• Digital Noise Reduction: 3D DNR
• WDR: DWDR

Network:

• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• API: ONVIF
• Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR

Interfaces:

• Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
• Button: N/A
• Video Output: N/A

Video/Image:

• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
• Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Main Stream Resolution: 1920x1080, 1280x960, 1280x720
• Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Sub-Stream Resolution: 704x576, 640x480, 352x288, 320x240
• Max. Resolution: 2MP (1920 × 1080)
• Video Streaming: Main Stream, Sub-Stream
• Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Video Bit Rate: 64 Kbps to 4 Mbps
• Day/Night Switch: Day/Night/Auto/Schedule

Smart Feature-Set:

• Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
• Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
• Linkage Method: Trigger Notification: ONVIF, HTTPS
• Region of Interest: 1 Region

General:

• Operating Temperature: -30–60 °C
• Dimensions (H X W X D): 115 x 115 x 86 mm
• Material: Plastic
• General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
• Power Consumption: PoE: Class 0
• Power Supply: PoE (802.3af/at, class 0)
• Vandal Resistant: IK10
• Certifications: CE/BSMI/VCCI/ONVIF

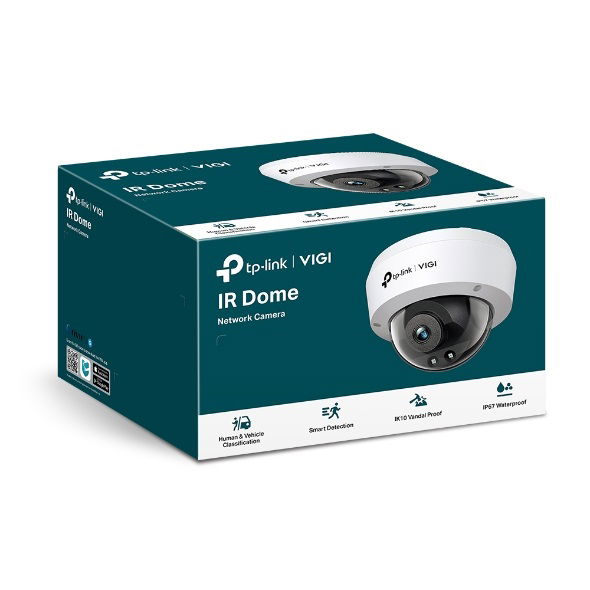

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
