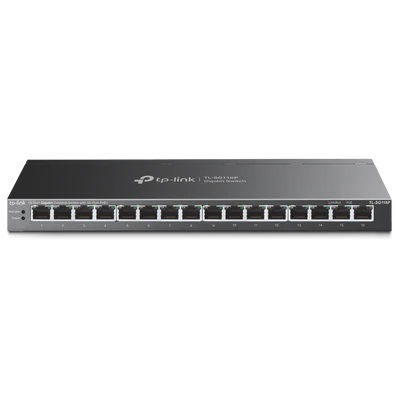

TP-Link TL-SG116P 16-Port Gigabit Desktop Switch with 16-Port PoE+

The TP-Link TL-SG116P's 16 x gigabit PoE+ RJ45 ports provide high-speed connections.

• 120 W PoE Budget: 16 × 802.3af/at-compliant PoE+ ports with a total power supply of 120 W.
• Gigabit Ethernet Ports: 16 x gigabit PoE+ RJ45 ports provide high-speed connections.
• Extended Distance Transmission: Up to 250 m data and power transmission range under Extend Mode.
• Priority Mode: Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
• Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance.
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
• Plug and Play: Plug and play with no configuration required.

Hardware Features:

• Interface: 16× 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
• Packet Forwarding Rate: 23.8 Mpps
• PoE Ports (RJ45): Standard: 802.3 af/at compliant, PoE Ports: Ports 1–16, Power Supply: 120 W
• Mac Address Table: 8K, Auto-learning, Auto-aging
• Switching Capacity: 32 Gbps
• Dimensions (W x D x H): 11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm)
• Max Power Consumption: 11.72 W (220 V / 50 Hz no PD connected) / 11.56 W (110 V / 60 Hz no PD connected), 142.51 W (220 V / 50 Hz with 120 W PD connected) / 144.28 W (110 V / 60 Hz with 120 W PD connected)
• Max Heat Dissipation: 39.85 BTU/h (220 V / 50 Hz no PD connected) / 39.31 BTU/h (110 V / 60 Hz no PD connected), 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) / 490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected)

Software Features:

• Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs, Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission), Priority Mode Button (Ports 1–4), Isolation Mode Button (Ports 1–7 / 8-14), PoE Auto Recovery (Ports 1-16), Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping
• Transfer Method: Store-And-Forward

General:

• Certification FCC, CE, RoHS
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

• TL-SG116P
• Power Adapter
• Installation Guide
