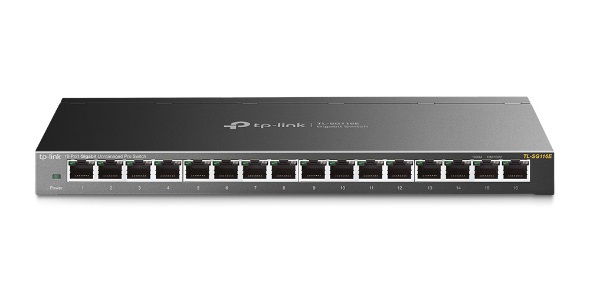

TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch

Link your devices, Create Convenient Business. The TL-SG116E Desktop Switch provides you an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG116E can always help you deal with your business quickly and easily.

More features, more choices:
Administrators can designate the priority of traffic based on QoS to ensure that voice and video applications remain clear and lag-free. IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing:
The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

Go Green with Your Ethernet:
TP-Link’s latest generation of Unmanaged Pro Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Hardware:

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface: 16 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100 Ohms STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100 Ohms STP (maximum 100m), 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100 Ohms STP (maximum 100m)
• Fan Quantity: Fanless
• Power Supply: External Power Adapter(Output: 12VDC/1.0A)
• Dimensions ( W x D x H ): 11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm)
• Max Power Consumption: 9.19W(220V/50Hz)
• Max Heat Dissipation: 31.36BTU/h

Performance:

• Switching Capacity: 32Gbps
• Packet Forwarding Rate: 23.81Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1Mb
• Jumbo Frame: 9KB

Software:

• Quality of Service Support: Port-based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control
• L2 Features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
• Transmission Method: Store-And-Forward

Environment:

• Operating Temperature: 0°C ~40°C
• Storage Temperature: -40°C ~70°C
• Operating Humidity: 10%~90%RH non-condensing
• Storage Humidity: 5%~95%RH non-condensing

• Microsoft Windows for running Utility
