Key Details:
- Model: TL-PD30G-M2
- Part #: AW001829
- Warranty: 2 Years
- Brand: TP Link
Ask Our Experts:

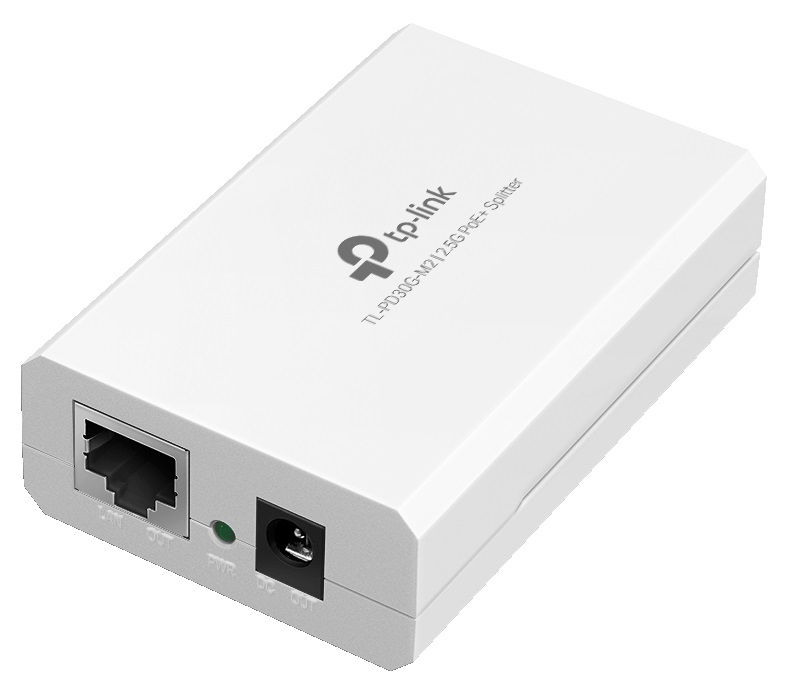

TP-Link TL-PD30G-M2, 2.5G PoE+ Splitter
2.5G PoE+ Splitter, The Combination of Speed and Efficient Power Supply.
2.5G Super-fast Speeds without Changing Cables:
This splitter delivers 2.5 times faster network performance than traditional Gigabit switches. It works with CAT5e, CAT6, CAT6a and above cables without upgrading your cabling.
Power over Ethernet, Flexible Network Deployment:
Work with all lEEE 802.3af/at compliant PoE+ switches or injectors to deliver optional 12V/9V/5V DC triple output to a variety of Ethernet-enabled devices.
Plug and Play:
TL-PD30G-M2 receives the PoE power supply from the front-end device and outputs it as direct current to power the back-end device.
Hardware:
- Interface: 1x 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port, 1x 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port, 1x 12V / 9V / 5V DC OUT Power Output Port
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-T: UTP category 5e, 6 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 2.5GBASE-T: UTP category 5e, 6 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
- Power Supply: 12VDC 2A, 9VDC 2A, 5VDC 2A
- Basic Function: Compatible with IEEE 802.3af/at compliant PSEs, Delivers power up to 100 meters
- LED: ON: Connected to PSE correctly, Off: No PSE is connected
Dimensions (WxDxH): 80.8 x 54 x 24 mm
Software:
- Basic Function: Compatible with IEEE 802.3af/at compliant PSEs, Delivers power up to 100 meters
Others:
- Certification: FCC, CE, RoHS
- Operating Temperature: -5°C
45°C (23°F113°F) - Storage Temperature: -40°C
70°C (-40°F158°F) - Operating Humidity: 10%~90%RH non-condensing
- Storage Humidity: 5%~90%RH non-condensing
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
