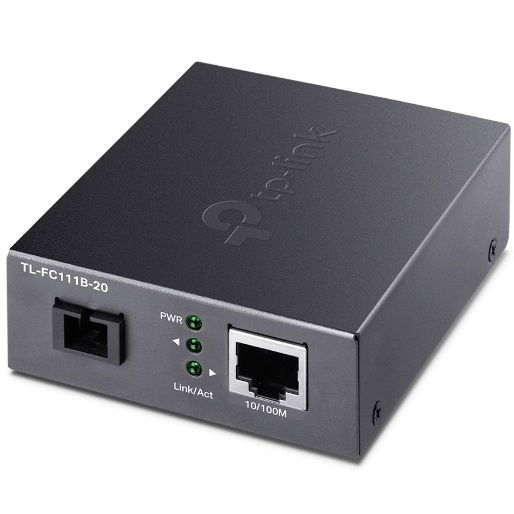

TP-Link TL-FC111B-20 10/100 Mbps WDM Media Converter

TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fibre port, which can convert between electrical and optical signals. And long-distance data transmission through optical fibre can be applied to commercial scenarios such as park security monitoring and wireless networking.

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fibre
• Extends fibre distance up to 20km

Network:

• Standards and Protocols: IEEE802.3, IEEE802.3i, IEEE802.3u

Environment:

• Operating Temperature: 0–50 °C
• Storage Temperature: -40–70 °C
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Hardware:

• Interface: 1x 100 Mbps SC Fiber Port, 1x 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
• Network Media: 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
• Power Supply: External Power Adapter: 5 V/0.6 A
• LED: PWR, Link/Act
• Dimensions (W x D x H): 94.5 x 73.0 x 27.0 mm
• Wave Length: 1310 nm TX, 1550 nm RX

Media Converter & Module:

• Fiber Type: 9/125 micron single-mode fiber (2 km max.)

• Media Converter TL-FC111B-20
• Power Adapter
• Installation Guide
